73421 (416-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

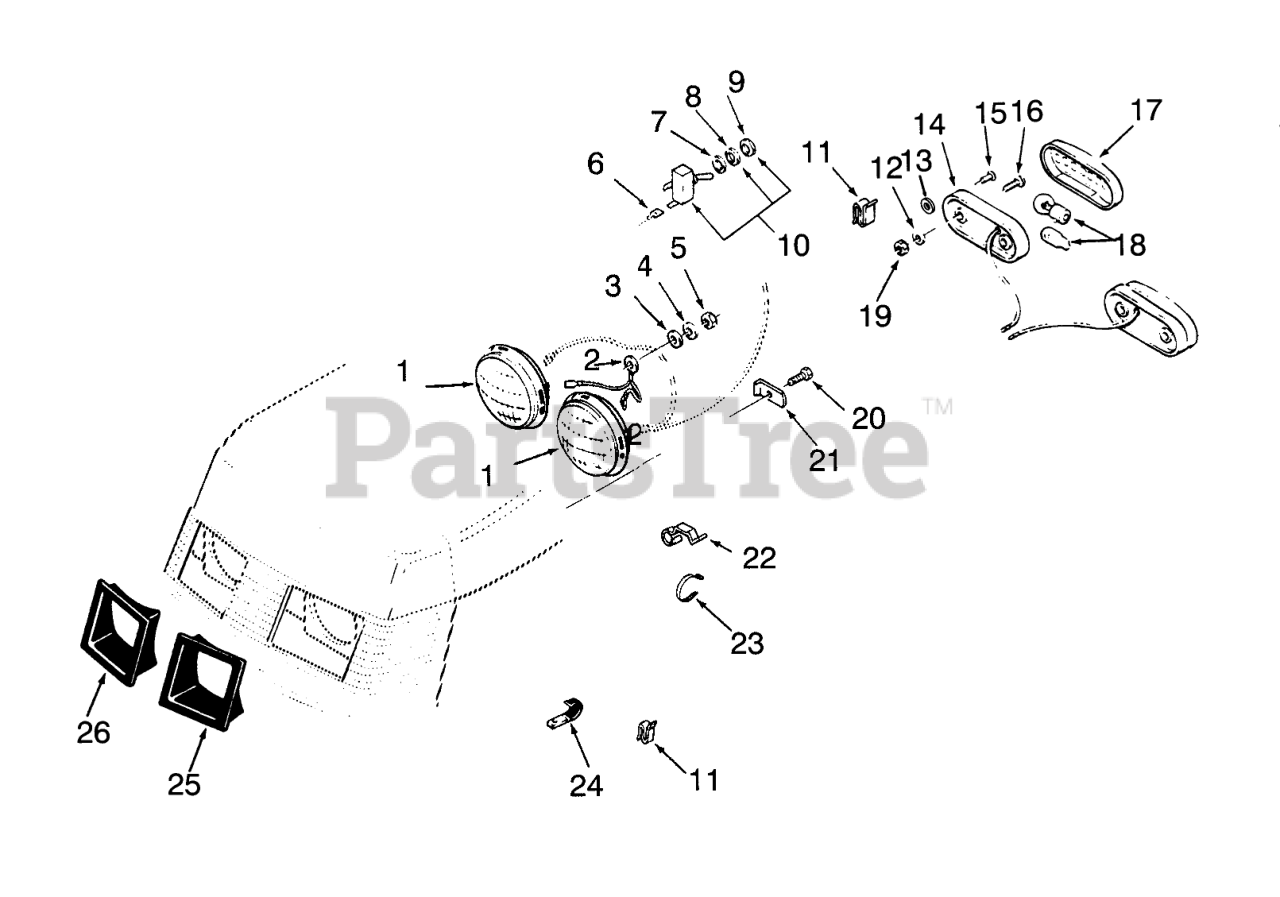

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 102881

HEADLAMP

$

$

Not available

2

Toro 108130

LIGHT GROUND WIRE

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 518104

Terminal

$

$

Currently unavailable

7

Toro 9202594

WASHER

$0.99

$

In Stock, only 4 left!

0

8

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

9

Toro 113179

DISC

$

$

Not available

10

Toro 102138

SWITCH-LIGHTS

$40.99

$

Usually ships in 3-6 days

0

11

Toro 3023

SPEED CLIP

$

$

Not available

12

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

14

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

15

Toro 3269-3

RIVET-POP

$0.99

$

In Stock, only 4 left!

0

16

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

17

Toro 112564

LENS-TAIL LIGHT

$9.99

$

In Stock, Qty 5

0

18

Toro 8043

Bulb

$

$

Currently unavailable

Toro 109045

LIGHT BULB

Note: Not illustrated

$

$

Not available

19

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

20

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

21

Toro 109459

LOCK-HEADLIGHT

$7.99

$

In Stock, Qty 7

0

22

Toro 8519

CLIP-WIRE

$

$

Not available

23

Toro 100571

PLASTIC TIE

$

$

Not available

24

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

25

Toro 109495

BEZEL-HEADLIGHT, LH

$

$

Not available

26

Toro 109494

BEZEL-HEADLIGHT, RH

$

$

Not available
