73421 (416-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) BLOWER HOUSING Parts Diagram

Garden Tractor

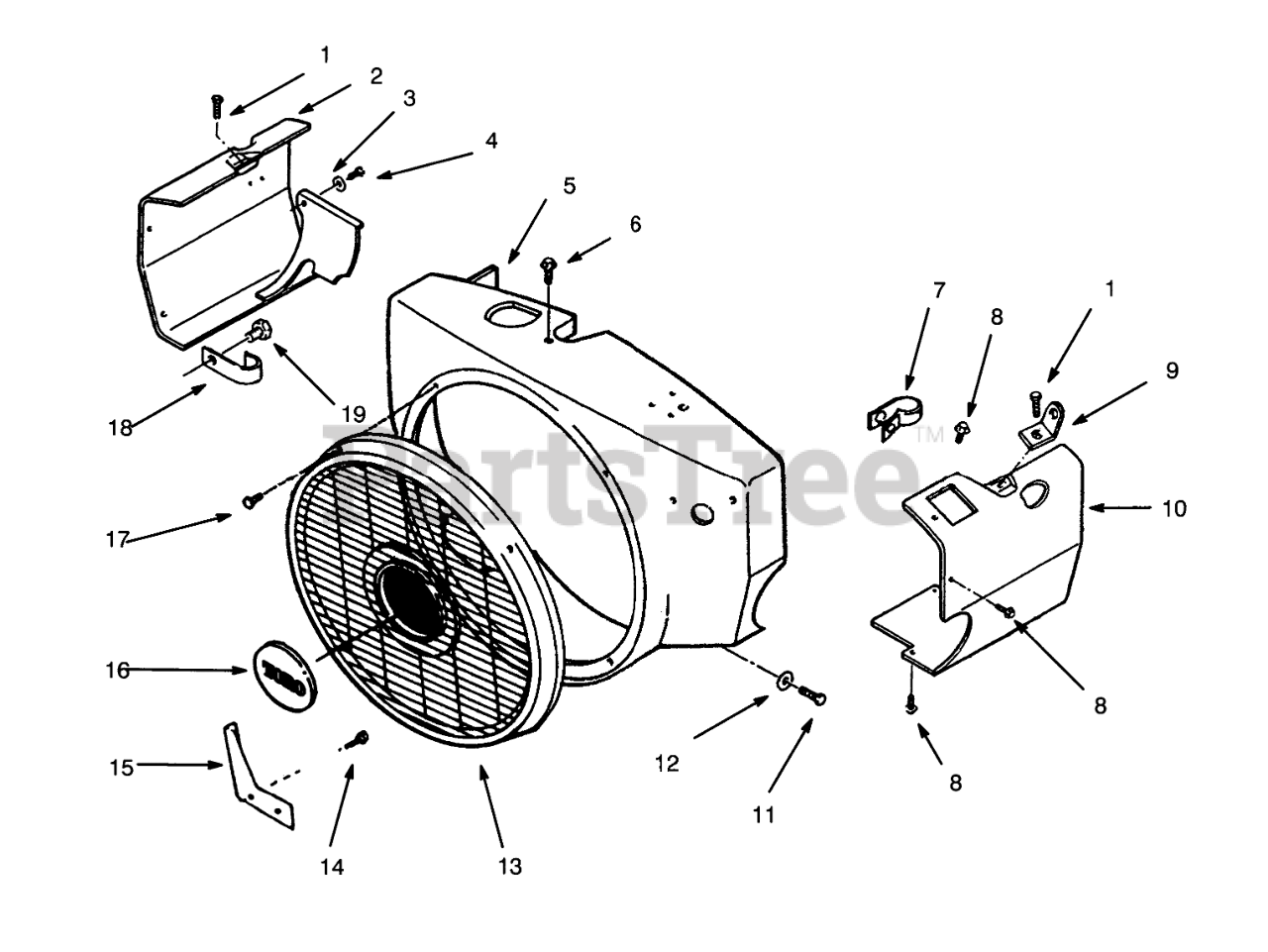

BLOWER HOUSING Parts Diagram

  • Title

1

Toro 82-1600

SCREW-HWH

$

$

Not available

2

Toro 92-0920

LH AIR CYLINDER HSG

$

$

Not available

3

Toro NN10393

Bolt
(Superseded to 59-0980)

$

$

Not available

4

Toro 59-0980

SCREW-HH

$

$

Not available

5

Toro NN10862

HOUSING

$

$

Not available

6

Toro 59-0970

HEX HD CAPSCREW

$

$

Not available

7

Toro NN10289

Clamp
(Superseded to 59-0580)

$

$

Not available

8

Toro NN10414

Bolt
(Superseded to 59-1080)

$

$

Not available

9

Toro NN10296

Bracket-Lifting
(Superseded to 71-6080)

$

$

Not available

10

Toro 92-0921

RH AIR CYLINDER HSG

$

$

Not available

11

Toro NN10393

Bolt
(Superseded to 59-0980)

$

$

Not available

12

Toro NN10356

Washer
(Superseded to 59-0820)

$

$

Not available

13

Toro 82-0620

GUARD-STATIONARY

$

$

Not available

14

Toro 82-0930

SCREW - THREAD CUTTING

$

$

Not available

15

Toro NN10832

BRACKET

$

$

Not available

16

Toro 118530

NAME-PLATE TORO LOGO

$16.99

$

Usually ships in 3-6 days

0

17

Toro 82-1590

SCREW-PAN HEAD

$

$

Not available

18

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

19

Toro 82-1540

SCREW-HWH

$

$

Not available
