73421 (416-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) AIR CLEANER Parts Diagram

Garden Tractor

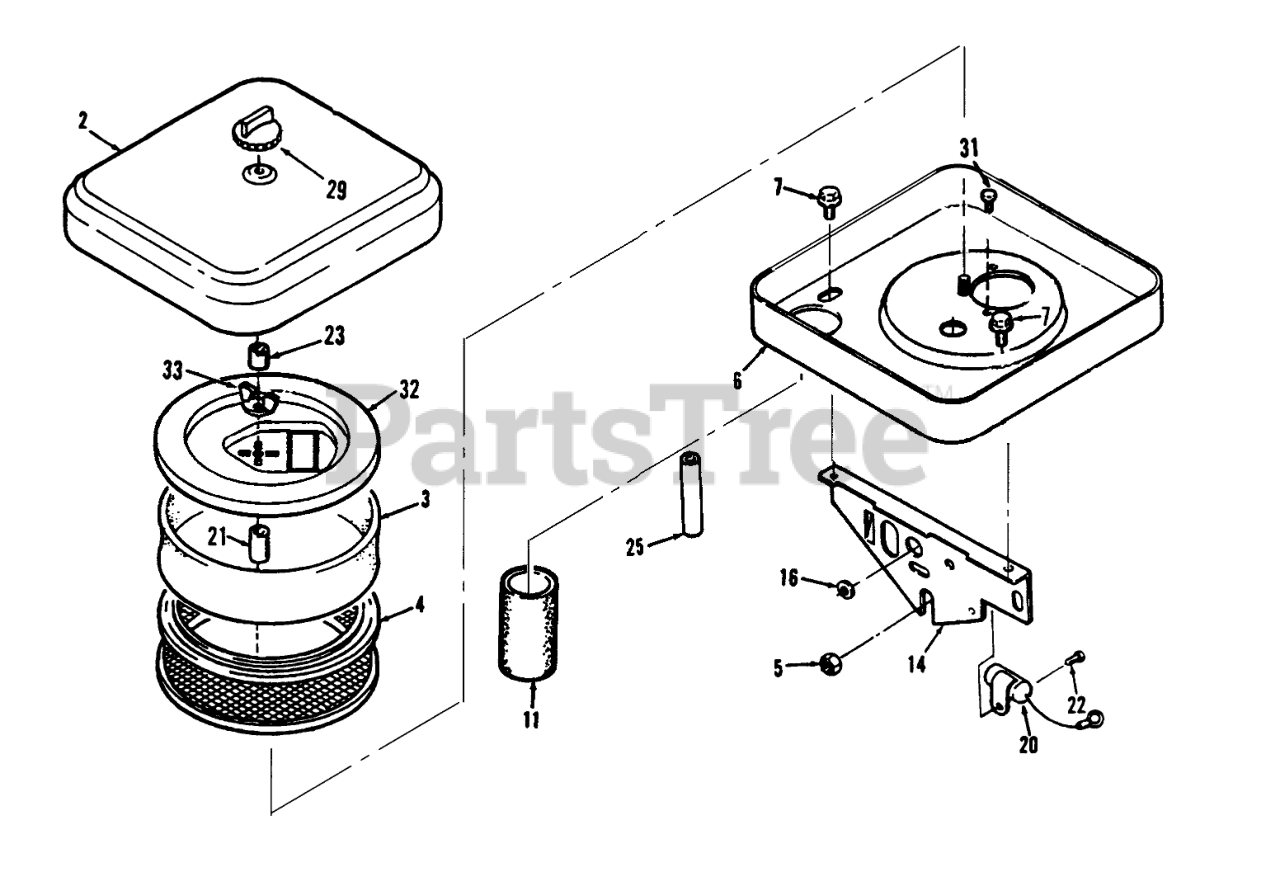

AIR CLEANER Parts Diagram

  • Title
2

Toro 79-6320

AIR-CLEANER COVER

$

$

Not available

3

Toro NN10176

AIR CLEANER ELEMENT

$

$

Not available

4

Toro NN10174

Stationary Guard
(Superseded to 82-0620)

$

$

Not available

5

$

$

Not available

6

Toro 79-6330

AIR-CLEANER HOUSING

$

$

Not available

7

Toro 82-1550

SCREW-TAPPING

$

$

Not available

11

Toro NN10187

AIR INTAKE TUBE

$

$

Not available

14

Toro 79-6340

SUPPORT-AIR CLEANER

$

$

Not available

16

Toro NN10309

Grommet
(Superseded to 71-6140)

$

$

Not available

20

Toro NN0980

Capacitor (300 VD)

$

$

Currently unavailable

22

Toro NN10390

SCREW #10-32 X 5/8

$

$

Not available

23

Toro 79-6520

SPACER-RUBBER

$

$

Not available

25

Toro 92-0917

BREATHER TUBE

$

$

Not available

29

Toro 79-6350

KNOB-TOOL LESS
(Superseded to 82-1670)

$

$

Not available

31

Toro 92-0915

MACHINE SCREW

$

$

Not available

32

Toro 92-0914

Cover-Element
(Superseded to 82-0650)

$

$

Not available

33

Toro 92-0913

1/4-20 WING NUT

$

$

Not available
