73420 (416-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) BELT GUARD & FOOTRESTS Parts Diagram

Garden Tractor

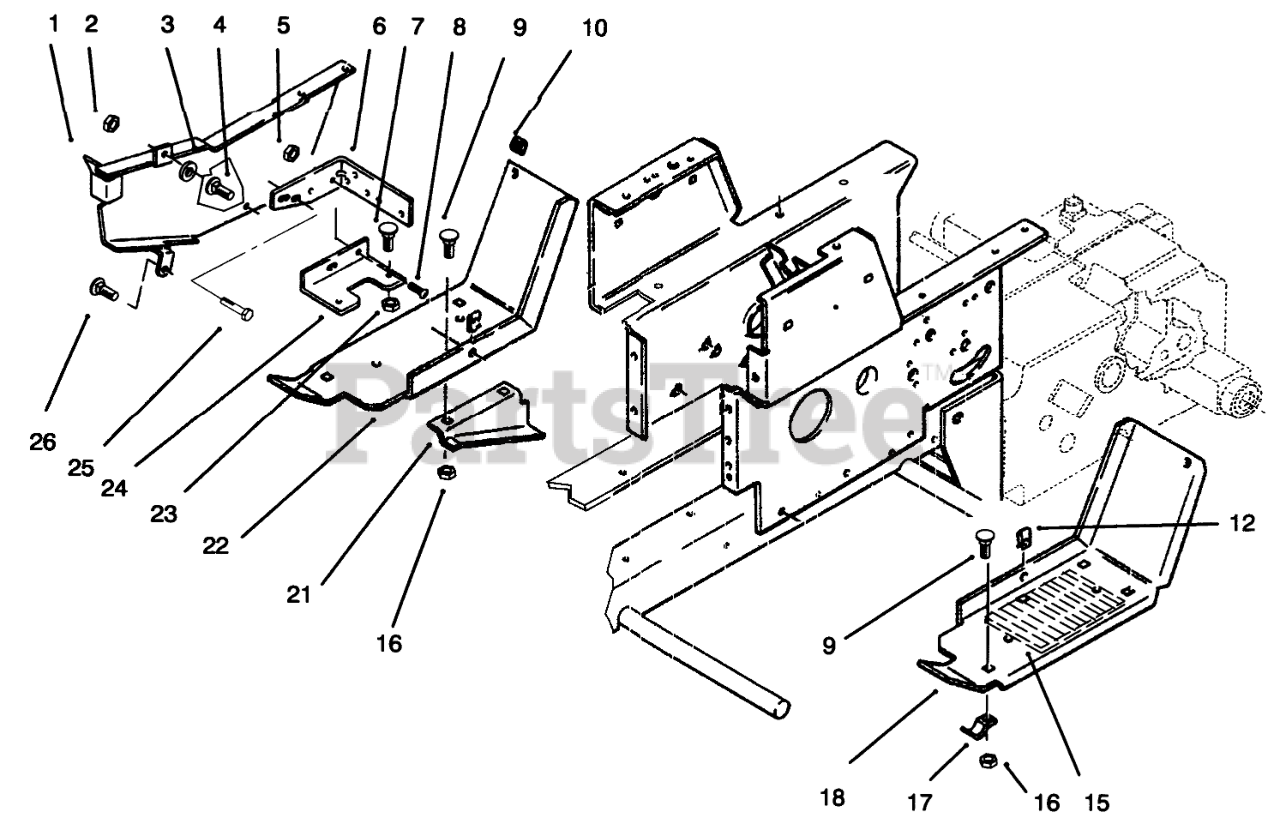

BELT GUARD & FOOTRESTS Parts Diagram

  • Title

1

Toro 107975

Belt Guard
(Superseded to 95-7695-01)

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 108457

NUT-PUSH

$

$

Not available

4

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

6

Toro 109554

BRACKET-BELTB

$

$

Not available

7

Toro 9107944

SCREW-PAN

$2.99

$

Usually ships in 3-6 days

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 518211

BUMPER

$4.49

$

In Stock, Qty 6

0

12

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 110636

PAD FOOTREST

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 7456

BRACKET

$

$

Not available

18

Toro 106223

FOOTREST LH R

$

$

Not available

21

Toro 106352

GUID-LOWER BLTR
(Superseded to 106352-01)

$21.99

$

Usually ships in 3-6 days

0

22

Toro 106222

Footrest-RH
(Superseded to 106222-01)

$

$

Not available

23

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

24

Toro 118280

BRKT-FUS HLDERB

$

$

Not available

25

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

26

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available
