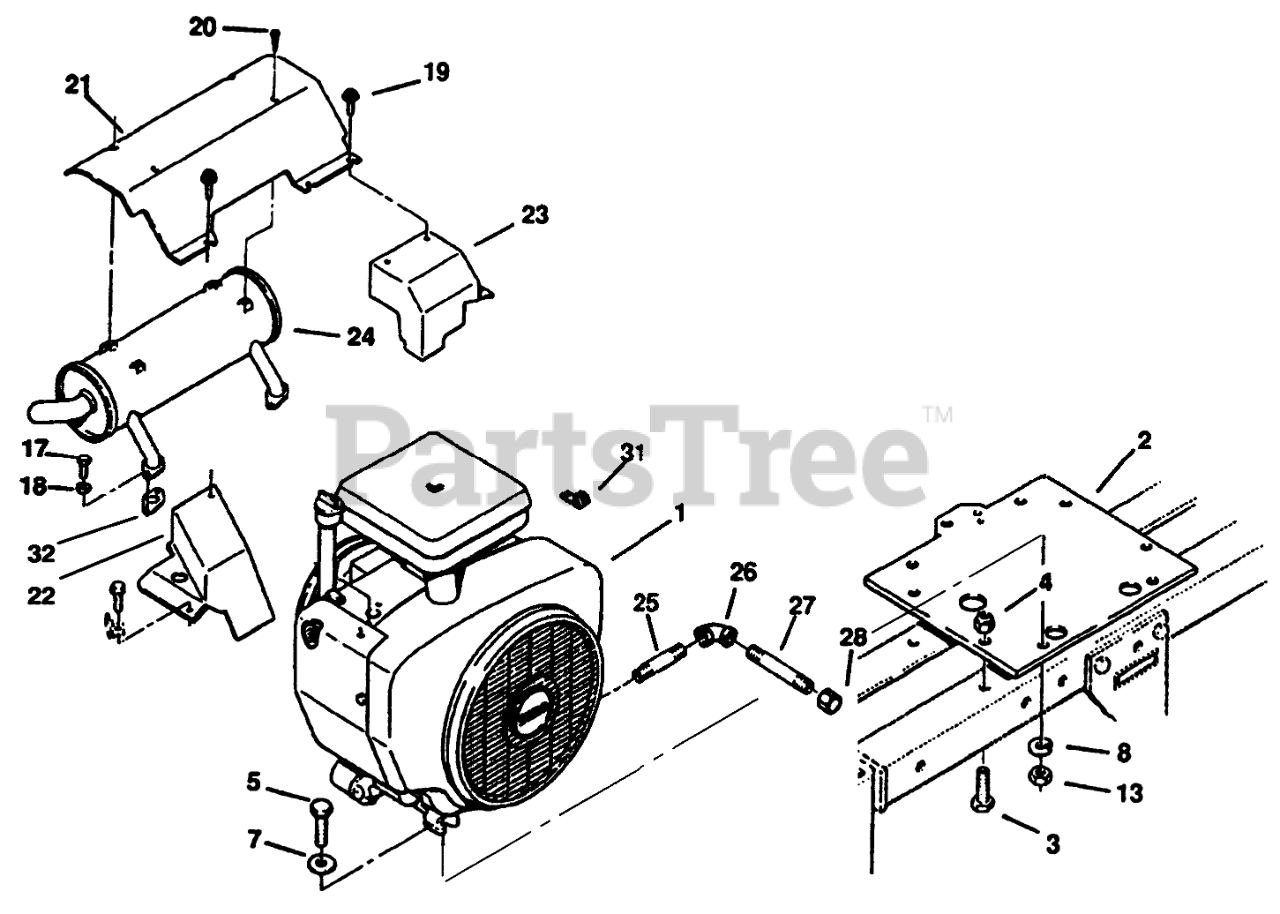

73420 (416-8) - Toro Garden Tractor (SN: 059000615 - 059000714) (1995) ENGINE, TORO POWER PLUS Parts Diagram

Garden Tractor

ENGINE, TORO POWER PLUS Parts Diagram

  • Title

1

Toro 94-1810

Engine-Onan
(Superseded to 95-7690)

$

$

Not available

2

Toro 116609

PLATE-ENGINE B

$129.99

$

Usually ships in 3-6 days

0

3

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

13

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

20

Toro 9103312

SCREW

$2.49

$

In Stock, Qty 6

0

21

Toro 94-1803

BAFL DEFLCTORB

$

$

Not available

22

Toro 114215

LH Exhaust Cover
(Superseded to 114215-03)

$

$

Not available

23

Toro 114216

RH Exhaust Cover
(Superseded to 114216-03)

$

$

Not available

24

Toro 116470

MUFFLER-EXHAUST

$

$

Not available

25

Toro 114636

Pipe
(Superseded to 289-45)

$23.99

$

Usually ships in 3-6 days

0

26

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0

27

Toro 114763

PIPE-NIPPLE 3/8 X 4"

$15.99

$

In Stock, only 1 left!

0

28

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

30

Toro 114214

Exhaust Gasket
(Superseded to 57-9210)

$18.99

$

In Stock, Qty 6

0

31

Toro 111357

J-CLIP

$

$

Not available

32

Toro 57-9210

GASKET

$18.99

$

In Stock, Qty 6

0
