73420 (416-8) - Toro Garden Tractor (SN: 059000001 - 059000614) (1995) GEARCASE AND IGNITION CONTROLS Parts Diagram

Garden Tractor

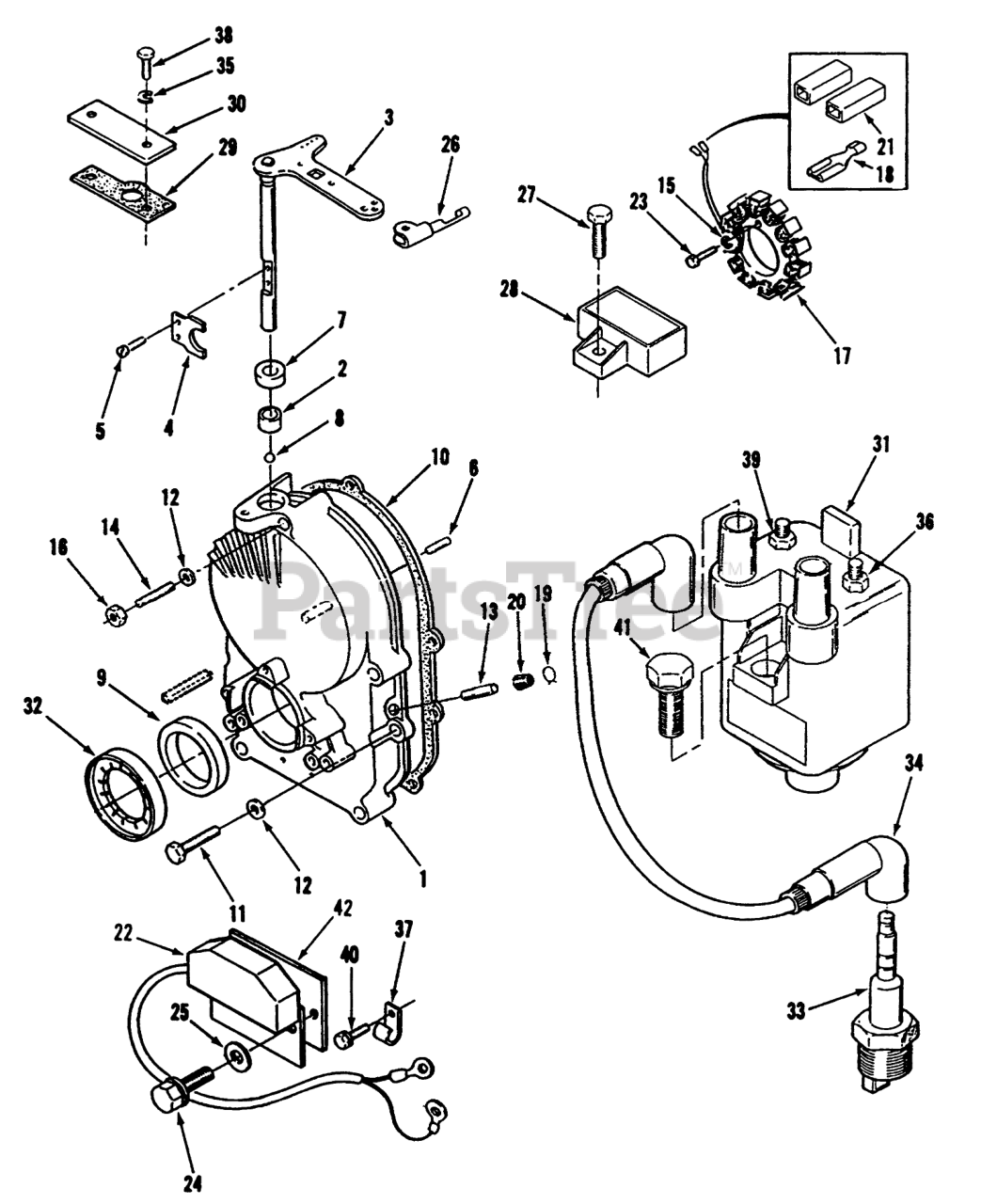

GEARCASE AND IGNITION CONTROLS Parts Diagram

  • Title
1

Toro NN10825

Kit-Gearcase (Incl.Ref.#2-9,13,19,&20)

$

$

Not available

2

Toro 57-9650

BEARING

$

$

Not available

3

Toro NN10826

SHAFT AND ARM

$200.99

$

Usually ships in 3-6 days

0

4

$

$

Not available

5

Toro 59-0950

SCREW-PAN HD

$

$

Not available

6

Toro NN10335

Washer
(Superseded to 59-0740)

$6.49

$

In Stock, only 1 left!

0

7

$

$

Not available

8

Toro NN10327

Bearing
(Superseded to 57-9630)

$

$

Not available

9

$

$

Not available

10

Toro NN10895

Gasket
(Superseded to 71-6360)

$

$

Not available

11

Toro 82-1410

Bolt
(Superseded to NN10545)

$

$

Not available

12

Toro 57-9750

WASHER

$

$

Not available

13

Toro 59-0360

TUBE-PORT, VACUUM

$

$

Not available

14

Toro NN10352

Stud
(Superseded to 59-0790)

$

$

Not available

15

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro NN10426

Nut
(Superseded to 59-1130)

$

$

Not available

17

Toro NN10518

Stator w/Terminals
(Superseded to 92-0967)

$394.99

$

Usually ships in 3-6 days

0

18

Toro NN10290

Stator Leads Terminal
(Superseded to 59-0590)

$

$

Not available

19

Toro 57-9550

CLAMP

$

$

Not available

20

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

21

Toro 82-1000

BODY-TERM. CONNECTOR KIT

$

$

Not available

22

Toro NN10444

Control-Ignition
(Superseded to 71-6380)

$457.99

$

Usually ships in 3-6 days

0

23

Toro 82-1500

Screw-HH
(Superseded to 71-6390)

$

$

Not available

24

Toro NN10394

Bolt
(Superseded to 71-6400)

$

$

Not available

25

Toro 82-1660

WASHER-LOCK

$

$

Not available

26

$19.99

$

Usually ships in 3-6 days

0

27

Toro NN10414

Bolt
(Superseded to 59-1080)

$

$

Not available

28

Toro NN10261

Regulator
(Superseded to 117-2742)

$271.99

$

In Stock, only 2 left!

0

29

Toro 79-6490

Gasket-Plate
(Superseded to 57-9260)

$

$

Not available

30

Toro NN10515

Plate
(Superseded to 71-5990)

$

$

Not available

31

Toro NN10245

Coil-Ignition
(Superseded to 71-6000)

$

$

Not available

32

Toro NN10247

Rotor
(Superseded to 71-6010)

$107.99

$

Usually ships in 3-6 days

0

33

Toro 57-9340

SPARK PLUG

$4.49

$

In Stock, only 2 left!

0

34

Toro 82-1340

WASHER-FLAT

$

$

Not available

35

Toro 82-1340

WASHER-FLAT

$

$

Not available

36

Toro NN10248

Nut
(Superseded to 71-6430)

$

$

Not available

37

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

38

Toro 82-1360

SCREW - CAP HEX HEAD

$

$

Not available

39

Toro NN10249

Nut
(Superseded to 71-6440)

$

$

Not available

40

Toro 82-1410

Bolt
(Superseded to NN10545)

$

$

Not available

41

Toro NN10408

Bolt
(Superseded to 71-6460)

$

$

Not available

42

Toro NN10516

Insulator
(Superseded to 71-6410)

$12.99

$

Usually ships in 3-6 days

0
