73420 (416-8) - Toro Garden Tractor (SN: 059000001 - 059000614) (1995) FRAME & HITCHES Parts Diagram

Garden Tractor

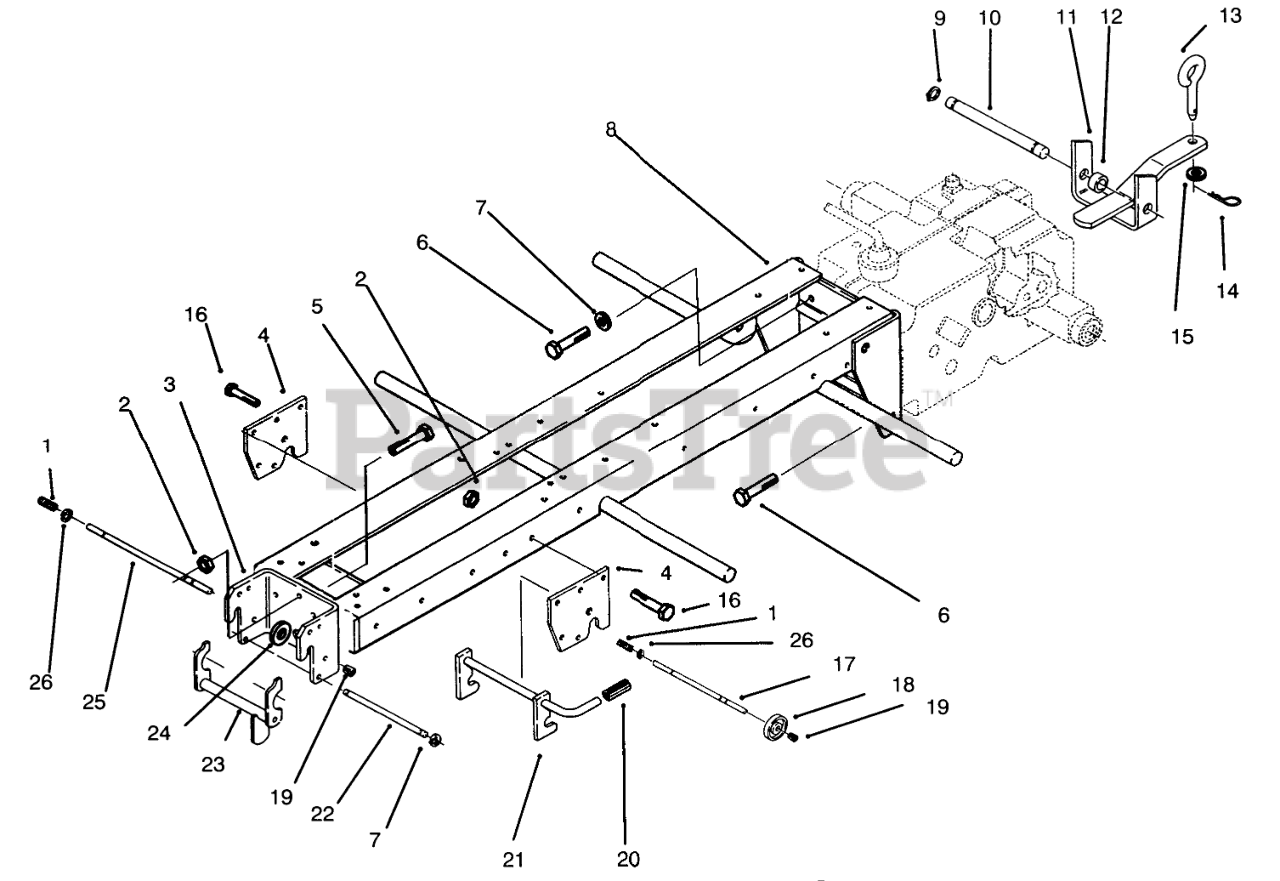

FRAME & HITCHES Parts Diagram

  • Title

1

Toro 8616

SPRING

$4.49

$

Usually ships in 3-6 days

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 101711

Front Hitch
(Superseded to 101711-01)

$120.99

$

Usually ships in 3-6 days

0

4

Toro 102644

Hitch Plate
(Superseded to 102644-01)

$33.99

$

Usually ships in 3-6 days

0

5

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

6

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

7

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

8

Toro 78-2680

WELD FRAME R

$

$

Not available

9

Toro 5618

E-RING

$1.49

$

In Stock, Qty 6

0

10

Toro 105269

PIN-STATIONARY HITCH

$

$

Not available

11

Toro 1644

Hitch
(Superseded to 98-8083-01)

$103.99

$

In Stock, only 1 left!

0

12

Toro 979120

Spacer
(Superseded to 9791204)

$

$

Not available

13

Toro 106634

PIN-TOOL

$

$

Not available

14

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

15

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

17

Toro 101017

LOCK

$32.99

$

Usually ships in 3-6 days

0

18

Toro 83-6520

ROD-LOCK

$47.99

$

Usually ships in 3-6 days

0

19

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

20

Toro 9038

GRIP

$7.49

$

In Stock, only 2 left!

0

21

Toro 117930

MID HITCH ASM

$100.99

$

Usually ships in 3-6 days

0

22

Toro 101750

ROD-LATCH PIVOT

$51.99

$

Usually ships in 3-6 days

0

23

Toro 93-1613

LATCH

$

$

Not available

24

Toro 101707

LOCK

$

$

Not available

25

Toro 101751

ROD-LOCK

$28.99

$

Usually ships in 3-6 days

0

26

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0
