73420 (416-8) - Toro Garden Tractor (SN: 059000001 - 059000614) (1995) CARBURETOR Parts Diagram

Garden Tractor

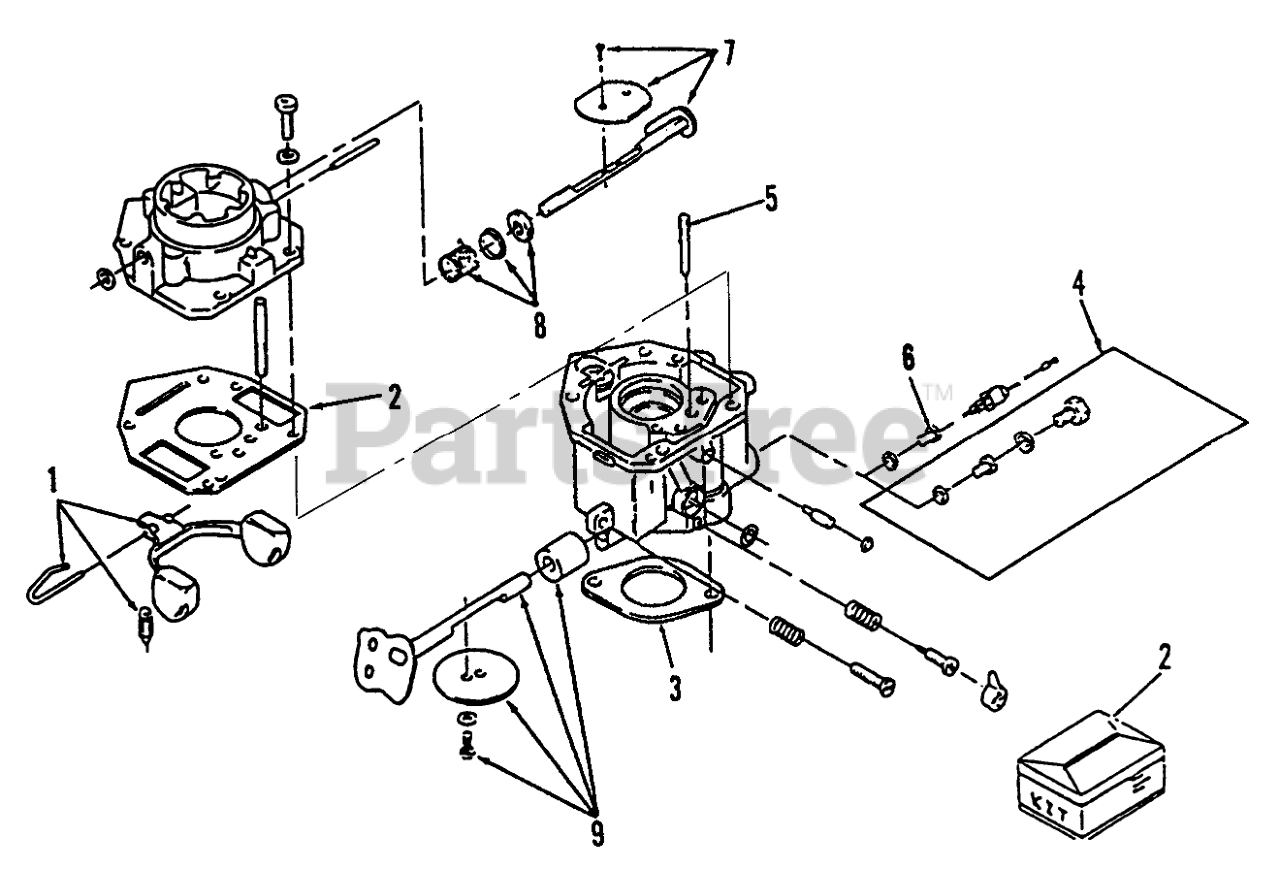

CARBURETOR Parts Diagram

  • Title

1

Toro NN10209

Kit-Float (Incl.Float,Pin,&Valve)
(Superseded to 62-2800)

$164.99

$

Usually ships in 3-6 days

0

2

Toro 82-0780

Kit-Repair (Incl.Screw&Plug Package,Gasket Package,Float Valve,Idle Adjustment Needle&Spring,Mounting Gaskets,&Idle Limit Cap)

$716.99

$

Usually ships in 3-6 days

0

3

Toro 82-0850

GASKET-CARBURETOR

$12.99

$

In Stock, only 1 left!

0

4

Toro NN10810

FIXED-JET PKG

$

$

Not available

5

Toro NN10201

Idle Jet
(Superseded to 62-2820)

$

$

Not available

6

Toro NN10199

POWER JET

$

$

Not available

7

Toro NN10207

Kit-Choke Shaft (Incl. Choke Valve, Valve Screw-Set, & Air Filter)
(Superseded to 72-3860)

$

$

Not available

8

Toro NN10809

Kit-Choke Lever (Incl. Choke Lever Ring, Choke Spring,&Choke Collar)

$129.99

$

Usually ships in 3-6 days

0

9

Toro NN10811

Kit-Throttle Shaft (Incl. Valve Screw-Set, Air Filter,& Throttle Valve)

$

$

Not available
