73420 (416-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) OIL BASE AND FILL TUBE AND BRACKET Parts Diagram

Garden Tractor

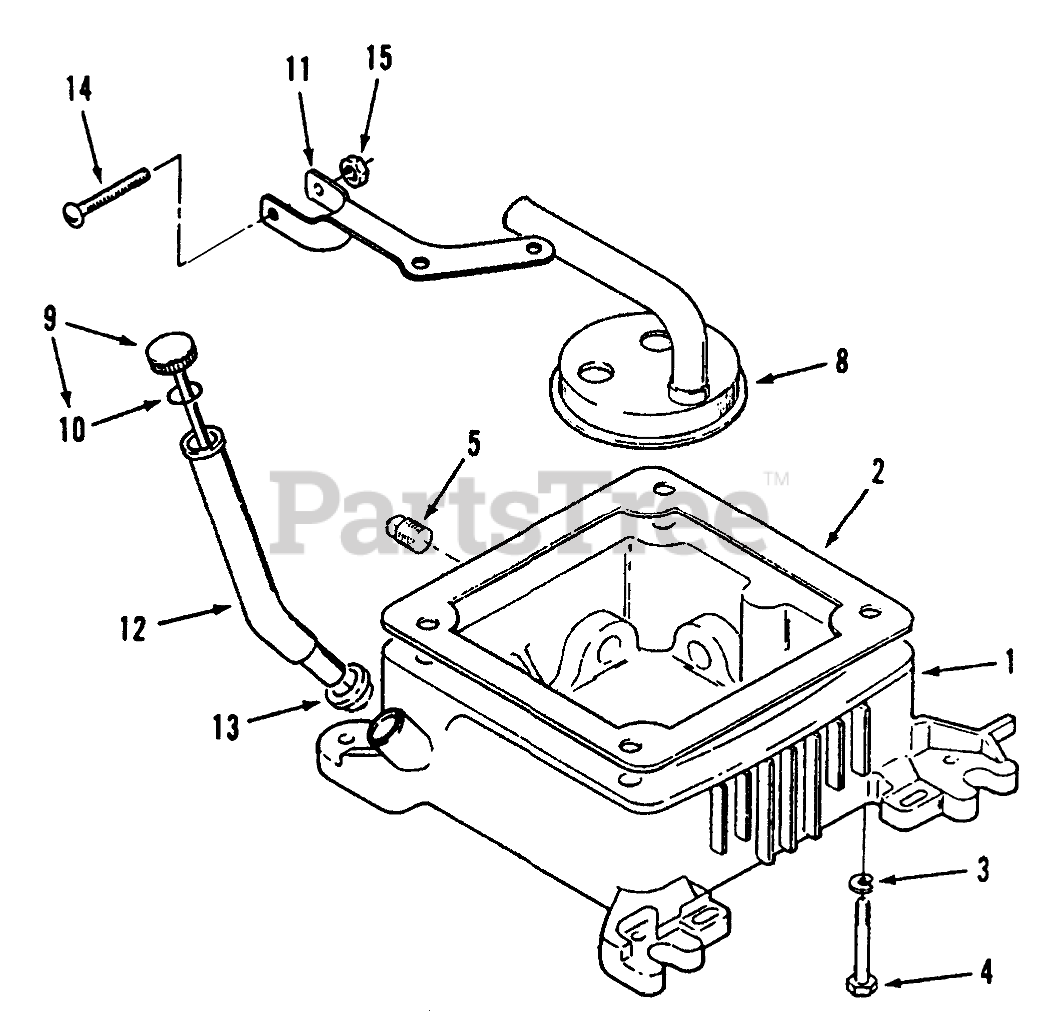

OIL BASE AND FILL TUBE AND BRACKET Parts Diagram

  • Title
1

Toro NN10018

Base-Oil (Incl. All Plugs & Plug Gasket)
(Superseded to 71-5730)

$

$

Not available

2

Toro 57-8090

GASKET

$37.99

$

Usually ships in 3-6 days

0

3

Toro 82-1310

WASHER-FLAT

$

$

Not available

4

Toro NN10379

HHCS 3/8-16 X 3 3/4

$

$

Not available

5

Toro 82-1130

PLUG - SQUARE HEAD

$

$

Not available

8

Toro NN10138

Cup-Oil Pump Intake
(Superseded to 57-8490)

$

$

Not available

9

Toro NN10159

Cap-Oil Fill & Indicator (Incl. "O" Ring)
(Superseded to 115-0940)

$

$

Not available

10

Toro NN10323

O-Ring
(Superseded to 57-9610)

$7.99

$

In Stock, only 1 left!

0

11

Toro 79-6460

BRACKET-FILL TUBE

$55.99

$

Usually ships in 3-6 days

0

12

Toro NN10854

TUBE-OIL FILL

$

$

Not available

13

Toro NN10690

Seal
(Superseded to 71-6170)

$15.99

$

In Stock, only 1 left!

0

14

Toro 82-1560

SCREW - PAN HEAD

$

$

Not available

15

Toro 82-1700

NUT - SPEED

$

$

Not available
