73420 (416-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) GOVERNOR Parts Diagram

Garden Tractor

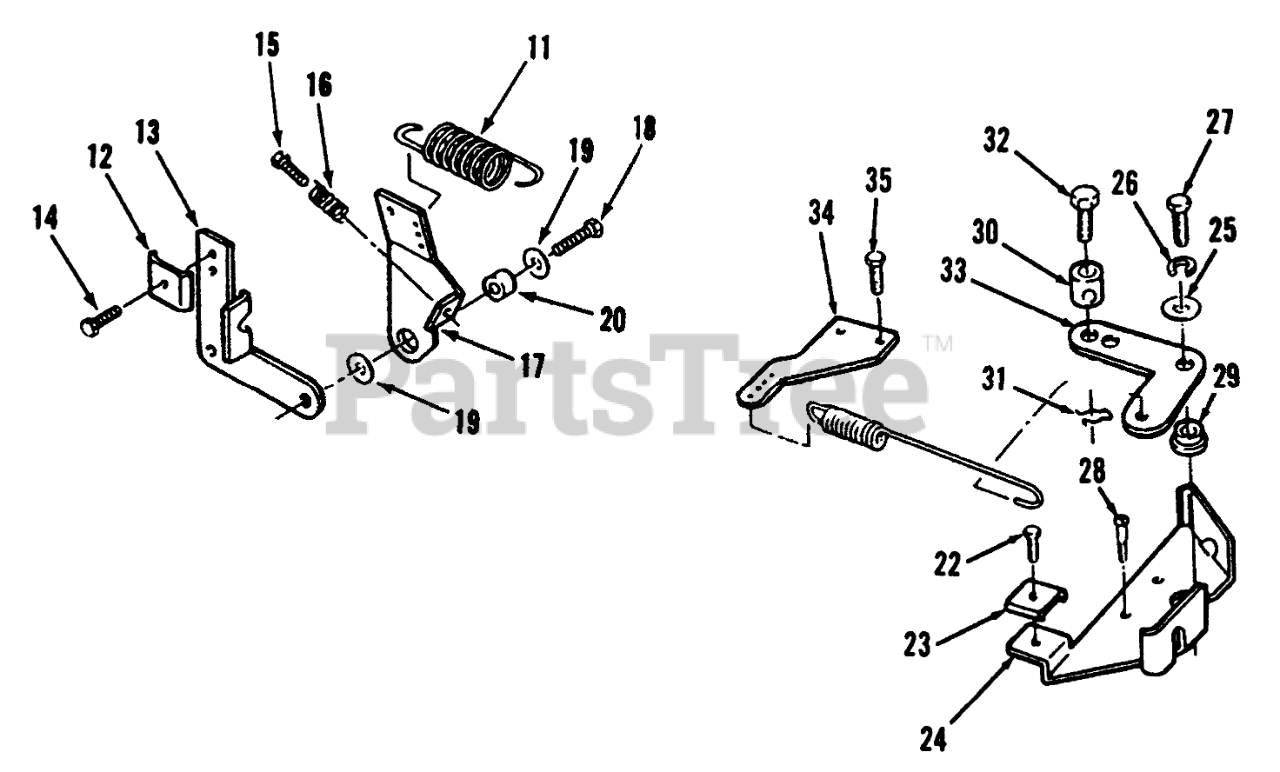

GOVERNOR Parts Diagram

  • Title
11

Toro NN10217

Spring
(Superseded to 57-9100)

$

$

Not available

12

$

$

Not available

13

Toro 79-6360

BRACKET

$

$

Not available

14

Toro NN10395

Bolt
(Superseded to 72-3900)

$

$

Not available

15

Toro 59-1030

SCREW-TAP

$

$

Not available

16

Toro NN10219

Spring
(Superseded to 59-0430)

$

$

Not available

17

Toro 92-0922

GOVERNOR CONTROL ARM

$

$

Not available

18

Toro 59-1100

SCREW-HWH

$

$

Not available

19

Toro NN10357

Screw
(Superseded to 59-0830)

$

$

Not available

20

Toro NN10218

Bushing
(Superseded to 57-9120)

$

$

Not available

22

Toro 59-1000

TAPPING HEX HD CS

$

$

Not available

23

$

$

Not available

24

Toro 79-6390

BRKT-GOVERNOR CONTRL

$

$

Not available

25

Toro 59-0830

WASHER-FLAT

$

$

Not available

26

Toro 82-1620

WASHER-LOCK, SPRING

$

$

Not available

27

Toro 82-1370

SCREW - CAP HEX HEAD

$

$

Not available

28

Toro 201327

HEX HD CAP SCREW

$

$

Not available

29

Toro 79-6400

BUSHING-GOV CONTROL

$

$

Not available

30

Toro NN10320

Oil Seal
(Superseded to 57-9580)

$

$

Not available

31

Toro 59-0720

PIN-COTTER

$

$

Not available

32

Toro NN10410

Bolt
(Superseded to 72-3890)

$

$

Not available

33

Toro 79-6410

LINK-GOV CONTROL

$

$

Not available

34

Toro 79-6420

ADAPTER-GOV ARM

$

$

Not available

35

Toro 59-1050

SCREW-TAPPING PAN HD

$

$

Not available
