73403 (314-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) STARTER Parts Diagram

Garden Tractor

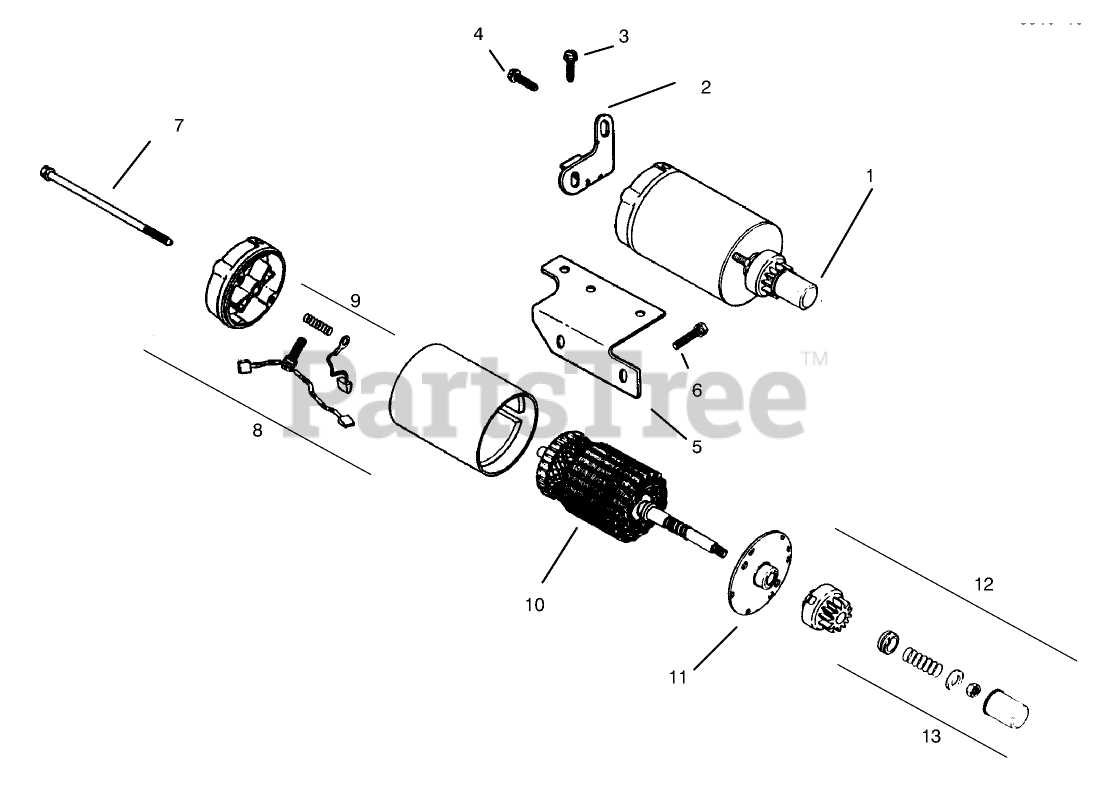

STARTER Parts Diagram

  • Title

1

Toro 41-098-04

Starter ASM INC 9-13

$

$

Currently unavailable

2

Toro 45-126-17

Brace-Starter Tail

$

$

Currently unavailable

3

Kohler X-67-62

Screw
(Superseded to X-67-62-S)

$3.49

$

Usually ships in 2-5 days

0

4

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

In Stock, only 1 left!

0

5

Toro 47-126-29

Bracket-Solenoid

$

$

Currently unavailable

6

Kohler X-159-2

Screw
(Superseded to X-159-2-S)

$4.49

$

Usually ships in 2-5 days

0

7

Toro 41-086-19

Bolt

$

$

Currently unavailable

8

Toro 41-227-04

End Cap ASM-INC 9

$

$

Currently unavailable

9

Toro 52-755-15

Kit-Brush

$

$

Currently unavailable

10

Toro 47-170-02

Armature

$

$

Currently unavailable

11

Toro 41-227-03

Cap-Drive End

$

$

Currently unavailable

12

Toro 47-755-07

Kit-Drive INC 13

$

$

Currently unavailable

13

Toro 7-755-13

Kit-Drive Parts

$

$

Currently unavailable

Toro 47-126-29

Bracket-Solenoid

$

$

Currently unavailable

Kohler X-159-2

Screw
(Superseded to X-159-2-S)

$4.49

$

Usually ships in 2-5 days

0
