73403 (314-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) PISTON AND RINGS Parts Diagram

Garden Tractor

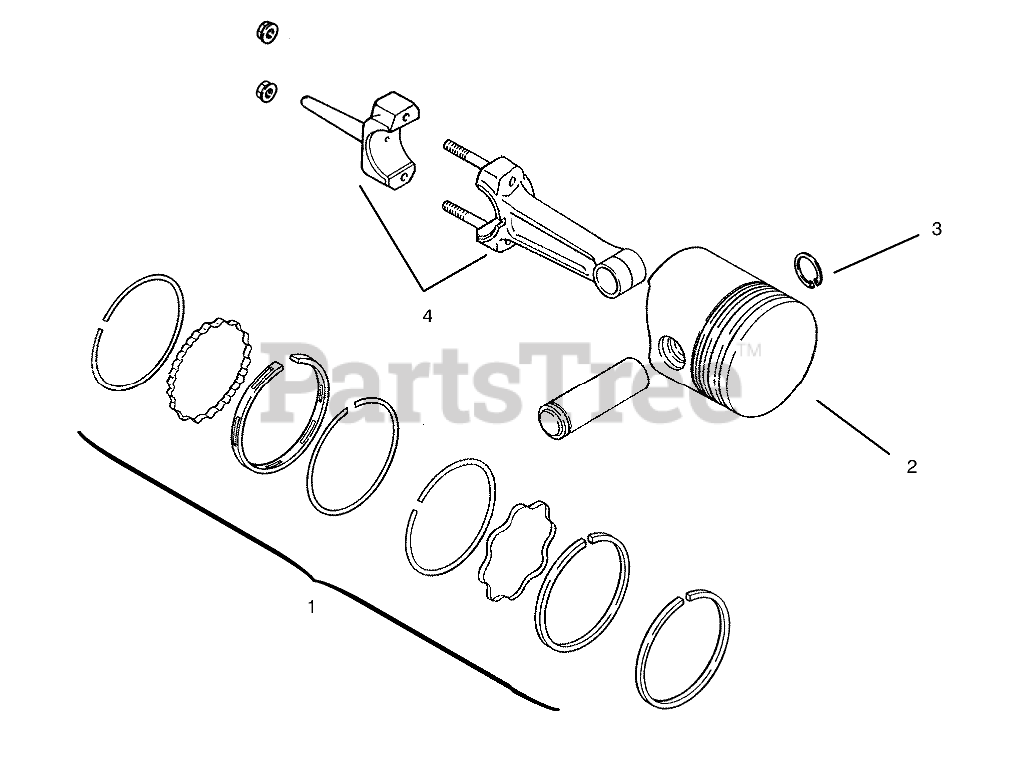

PISTON AND RINGS Parts Diagram

  • Title
1

Toro 47-108-05

Set-Ring STD .003 14hp

$

$

Currently unavailable

Toro 47-108-06

Set-Ring .010

Note: Not illustrated

$

$

Currently unavailable

Toro 47-108-07

Set-Ring .020

Note: Not illustrated

$

$

Currently unavailable

Toro 47-108-08

Set-Ring .030

Note: Not illustrated

$

$

Currently unavailable

2

Toro 47-874-21

Piston-Ring Set STD 14hp

$

$

Currently unavailable

Toro 47-874-22

Piston-Ring Set .003

Note: Not illustrated

$

$

Currently unavailable

Toro 47-874-23

Piston-Ring Set .010

Note: Not illustrated

$

$

Currently unavailable

Toro 47-874-24

Piston-Ring Set .020

Note: Not illustrated

$

$

Currently unavailable

Toro 47-874-25

Piston-Ring Set .030

Note: Not illustrated

$

$

Currently unavailable

Toro 47-018-01

Retainer

Note: Not illustrated

$

$

Currently unavailable

4

Toro 45-067-24

Rod-Connecting STD

$

$

Currently unavailable

Toro 25-468-04

Washer

Note: Not illustrated

$

$

Currently unavailable
