73403 (314-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) HYDROSTATIC TRANSMISSION Parts Diagram

Garden Tractor

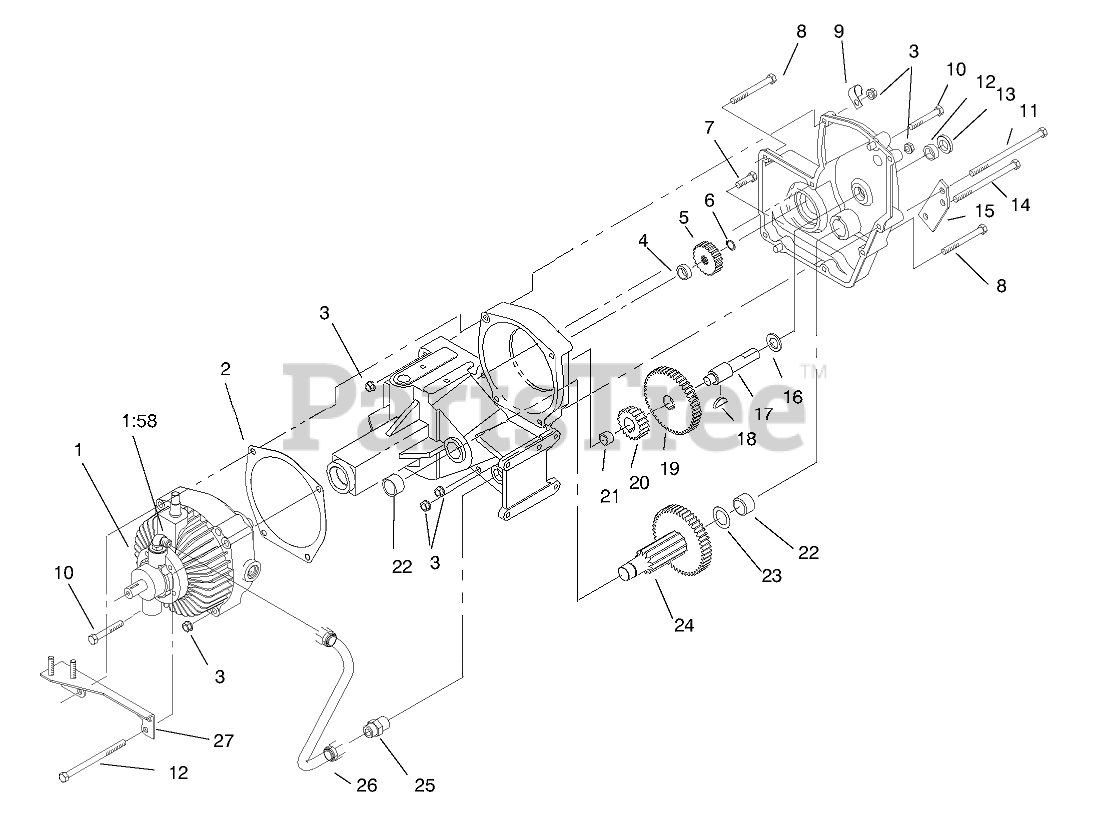

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

1

Toro 92-9848

TRANSMISSION-PUMP

$

$

Not available

2

Toro 108319

GASKET

$10.99

$

In Stock, only 2 left!

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 108366

SPACER GEAR

$

$

Not available

5

Toro 109751

GEAR 20 TEETH DRIVE

$

$

Not available

6

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0

7

Toro 9080356

Bolt

$

$

Currently unavailable

8

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

9

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

10

Toro 9080406

Bolt

$

$

Currently unavailable

11

Toro 323-26

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

12

Toro 1538

NEEDLE BEARING

$46.99

$

Usually ships in 3-6 days

0

13

Toro 108357

Seal
(Superseded to 253-44)

$29.99

$

In Stock, only 1 left!

0

14

Toro 323-25

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

15

Toro 109367-03

Bracket-Brake

$

$

Not available

16

Toro 7956

Race Thrust
(Superseded to 702982)

$9.99

$

In Stock, Qty 5

0

16:1

Toro 113927-01

Case-Transaxle
(Superseded to 113927)

$1209.99

$

Usually ships in 3-6 days

0

16:2

Toro 88-2790

DECAL - DANGER

$

$

Not available

17

Toro 109370

SHAFT GEAR

$

$

Not available

18

Toro 937099

Key
(Superseded to 937024)

$

$

Not available

19

Toro 109752

GEAR 46 TEETH

$

$

Not available

20

Toro 109742

GEAR 20 TEETH

$

$

Not available

21

Toro 1518

BEARING-NEEDLE

$31.99

$

Usually ships in 3-6 days

0

22

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

23

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

24

Toro 109703

ASSY GEAR

$

$

Not available

25

Toro 108364

FITTING-TUBE

$

$

Not available

26

Toro 111217

ASSY-TUBE SUCTION

$

$

Not available

27

Toro 108329-03

Plate-Control

$

$

Currently unavailable
