73403 (314-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) HOODSTAND, CONSOLE Parts Diagram

Garden Tractor

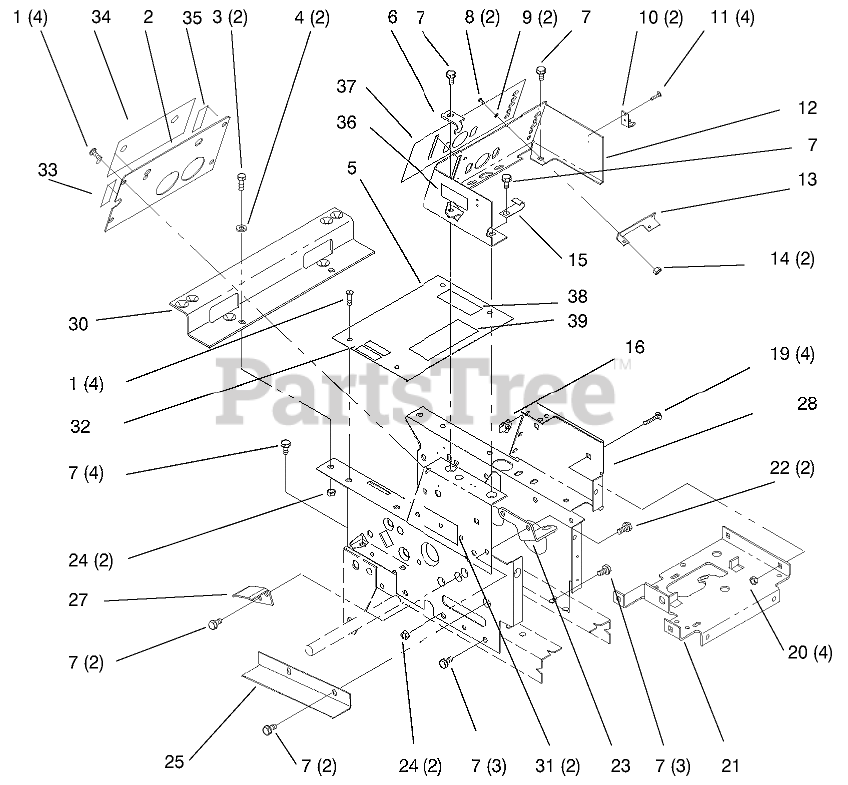

HOODSTAND, CONSOLE Parts Diagram

  • Title

1

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

2

Toro 78-5620

Plate-Hood Stand
(Superseded to 78-5620-03)

$

$

Not available

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 78-8110

Plate-Shift
(Superseded to 78-8110-03)

$

$

Not available

6

Toro 112415

STOP-PTO

$21.99

$

In Stock, only 1 left!

0

7

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

8

Toro 9107622

SCREW-PAN

$1.49

$

Usually ships in 3-6 days

0

9

Toro 9201504

Washer-Lock

$

$

Currently unavailable

10

Toro 117343

KEEPER-LATCH

$4.49

$

In Stock, only 2 left!

0

11

Toro 117431

POPRIVET 1/8X 1/8 BK

$

$

Not available

12

Toro 78-5610

CONSOLE B

$108.99

$

In Stock, only 2 left!

0

13

Toro 112506

BRACKET

$7.99

$

Usually ships in 3-6 days

0

14

Toro 9159604

Nut
(Superseded to 3217-29)

$0.99

$

Usually ships in 3-6 days

0

15

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

16

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

17

Toro 111332

SWITCH

$11.99

$

Usually ships in 3-6 days

0

18

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

19

Toro 117371

BOLT CARR. 5/16X1/2 BK

$

$

Not available

20

Toro 9151126

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

21

Toro 78-3000

WLDMT-BATTERY SUP B

$129.99

$

Usually ships in 3-6 days

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 78-1540

Bracket-Control
(Superseded to 78-1540-03)

$

$

Not available

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

25

Toro 106209

ANGL-BLT GURDB

$17.99

$

Usually ships in 3-6 days

0

27

Toro 108537

BRCKET-BLT SUTB

$

$

Not available

28

Toro 92-1525

Hoodstand
(Superseded to 95-7676-03)

$

$

Not available

29

Toro 9109482

Screw

$

$

Currently unavailable

30

Toro 107951

BRACKET-FENDER B
(Superseded to 95-7665-03)

$57.99

$

In Stock, only 1 left!

0

31

Toro 94-6339

DECAL - MODEL 314 HYDRO

$

$

Not available

32

Toro 78-9130

DECAL-COLD START

$

$

Not available

33

Toro 111960

DECAL PTO CLUTCH

$14.99

$

Usually ships in 3-6 days

0

34

Toro 79-2470

DECAL-BACK PLATE

$20.99

$

Usually ships in 3-6 days

0

35

Toro 78-7300

DECAL-CHOKE

$

$

Not available

36

Toro 111926

DECAL ELECT SYSTEM

$

$

Not available

37

Toro 78-7190

DECAL-DASH

$

$

Not available

38

Toro 116445

DECAL-PARKING BRAKE

$

$

Not available

39

Toro 92-8946

DECAL-DANGER

$6.49

$

Usually ships in 3-6 days

0
