73402 (314-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) WHEEL ASSEMBLIES Parts Diagram

Garden Tractor

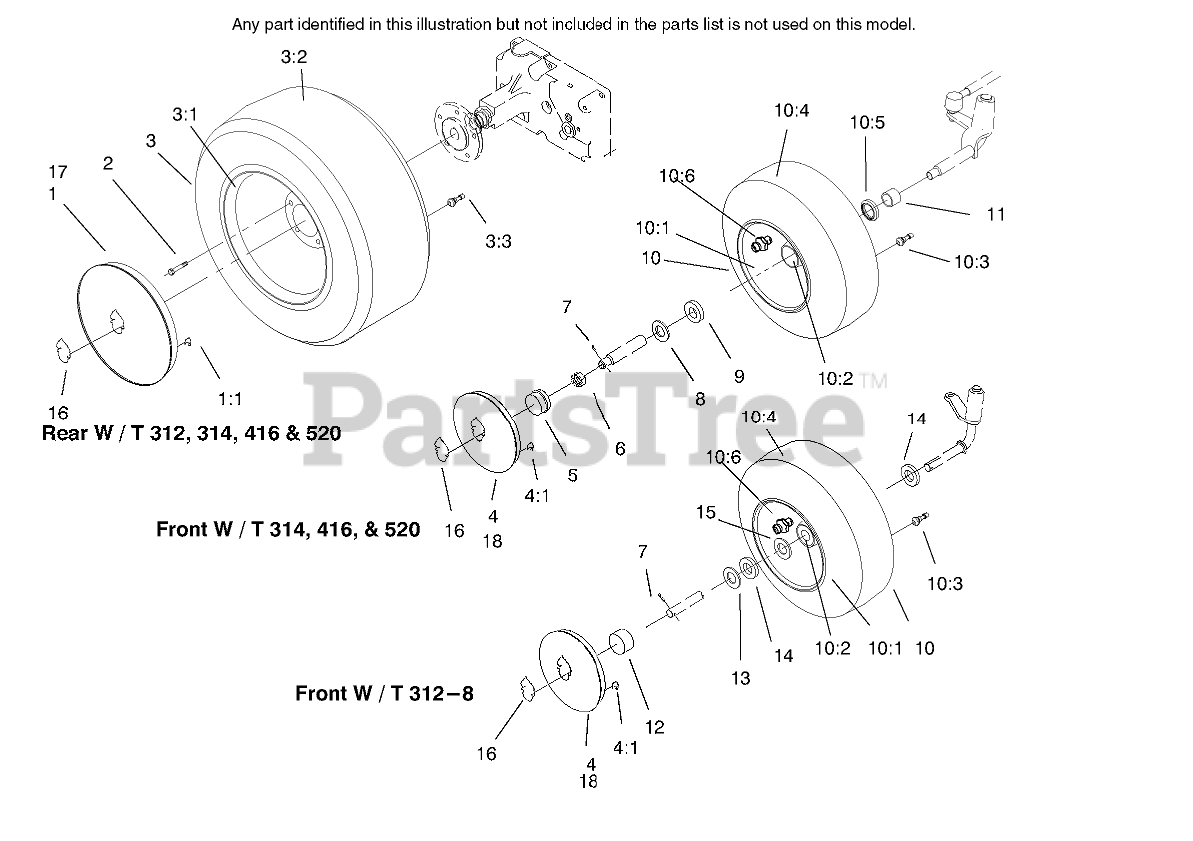

WHEEL ASSEMBLIES Parts Diagram

  • Title

2

Toro 83-2720

BOLT-LUG

$4.99

$

In Stock, only 4 left!

0

3

ASM-Wheel & Tire

$

$

Not available

3:1

Toro 111516

WHEEL

$307.99

$

Usually ships in 3-6 days

0

3:2

Toro 116744

TIRE
(Superseded to 116-5363)

$226.99

$

Usually ships in 3-6 days

0

3:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

7

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

10

Toro 93-9800

FRONT WHEEL ASM

$

$

Not available

10:1

Toro 93-9801

Wheel ASM

$257.99

$

Usually ships in 3-6 days

0

10:2

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 3 left!

0

10:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

10:4

Toro 117127

Tire (16 x 6.5-8) 2-Ply -2 Wheel Axel

$

$

Not available

10:6

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

Toro 100079

TUBE

Note: Not illustrated

$

$

Not available

Toro 7007

TUBE-INNER
(Superseded to 231-90)

Note: Not illustrated

$

$

Not available

12

Toro 111951

HUBCAP

$16.99

$

In Stock, only 2 left!

0

13

Toro 111952

WASHER WHEEL

$7.49

$

In Stock, Qty 5

0

14

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

15

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0
