73402 (314-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) FRAME AXLE AND STEERING SYSTEM Parts Diagram

Garden Tractor

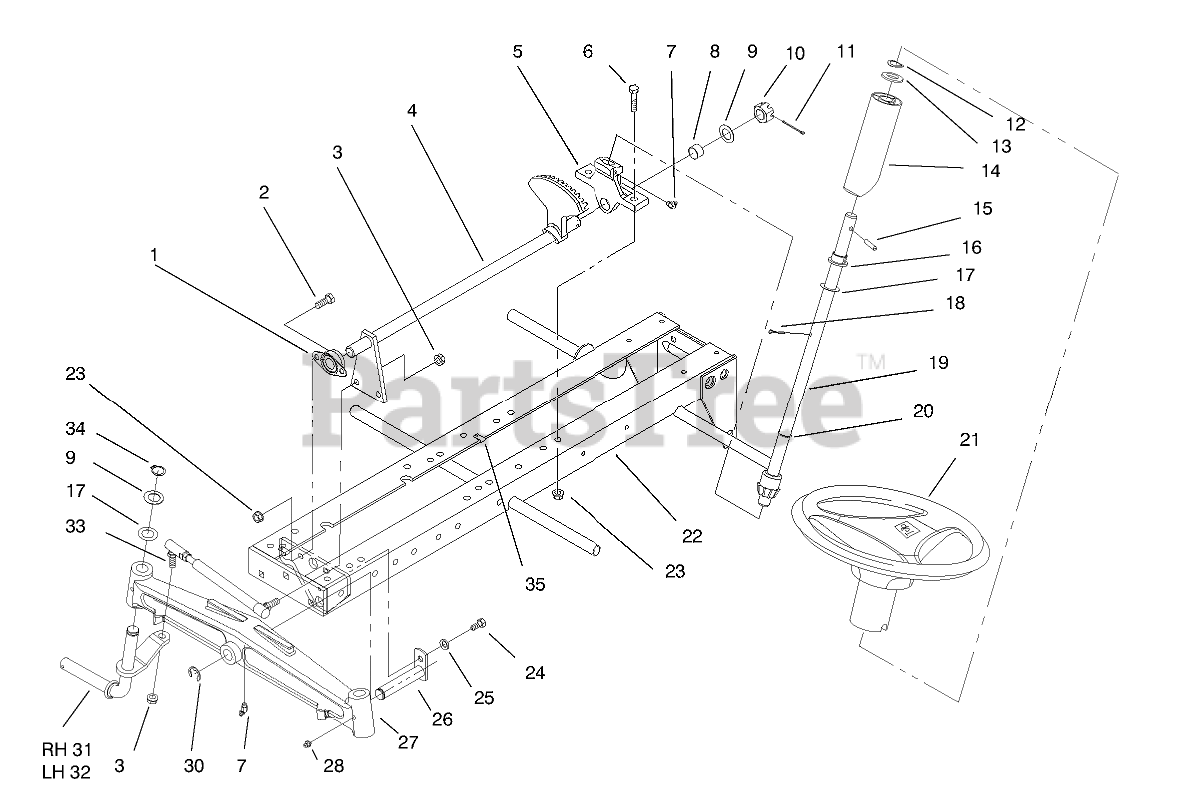

FRAME AXLE AND STEERING SYSTEM Parts Diagram

  • Title

1

Toro 6472

BEARING-FLANGED

$24.99

$

In Stock, only 2 left!

0

2

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

4

Toro 78-2880-01

Shaft-Steering

$

$

Currently unavailable

5

Toro 88-2710-01

Support-Lower Steering

$

$

Currently unavailable

6

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

8

Toro 6397

BEARING-BRONZE

$24.99

$

In Stock, only 1 left!

0

9

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

10

Toro 32136-5

NUT-HEX, SLOTTED

$7.99

$

Usually ships in 3-6 days

0

11

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

12

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

13

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

14

Toro 113443

TUBE-STEERING

$

$

Not available

15

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

16

Toro 109189

BEARING-FLANGED

$3.49

$

In Stock, Qty 20+

0

17

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

18

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

19

Toro 92-4987

STEERING SHAFT ASM

$

$

Not available

20

Toro 237-69

O-RING

$6.99

$

Usually ships in 3-6 days

0

21

Toro 94-3519

WHEEL - STEERING 15"
(Superseded to 98-1473)

$265.99

$

Usually ships in 3-6 days

0

21:1

Toro 88-3870

COVER-WHEEL

$

$

Not available

22

Toro 94-6673-01

FRAME ASM

$

$

Not available

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

24

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

25

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 6216

PIN AND PLATE ASM

$51.99

$

Usually ships in 3-6 days

0

27

Toro 5638-01

AXLE-FRONT

$

$

Not available

28

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

30

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

31

Toro 113382-01

SPINDLE ASM-RH

$108.99

$

In Stock, only 1 left!

0

32

Toro 113381-01

SPINDLE ASM-LH

$112.99

$

Usually ships in 3-6 days

0

33

Toro 78-2900

ASM-Rod

$76.99

$

In Stock, only 2 left!

0

34

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

35

Toro 8519

CLIP-WIRE

$

$

Not available
