73402 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) TRANSMISSION Parts Diagram

Garden Tractor

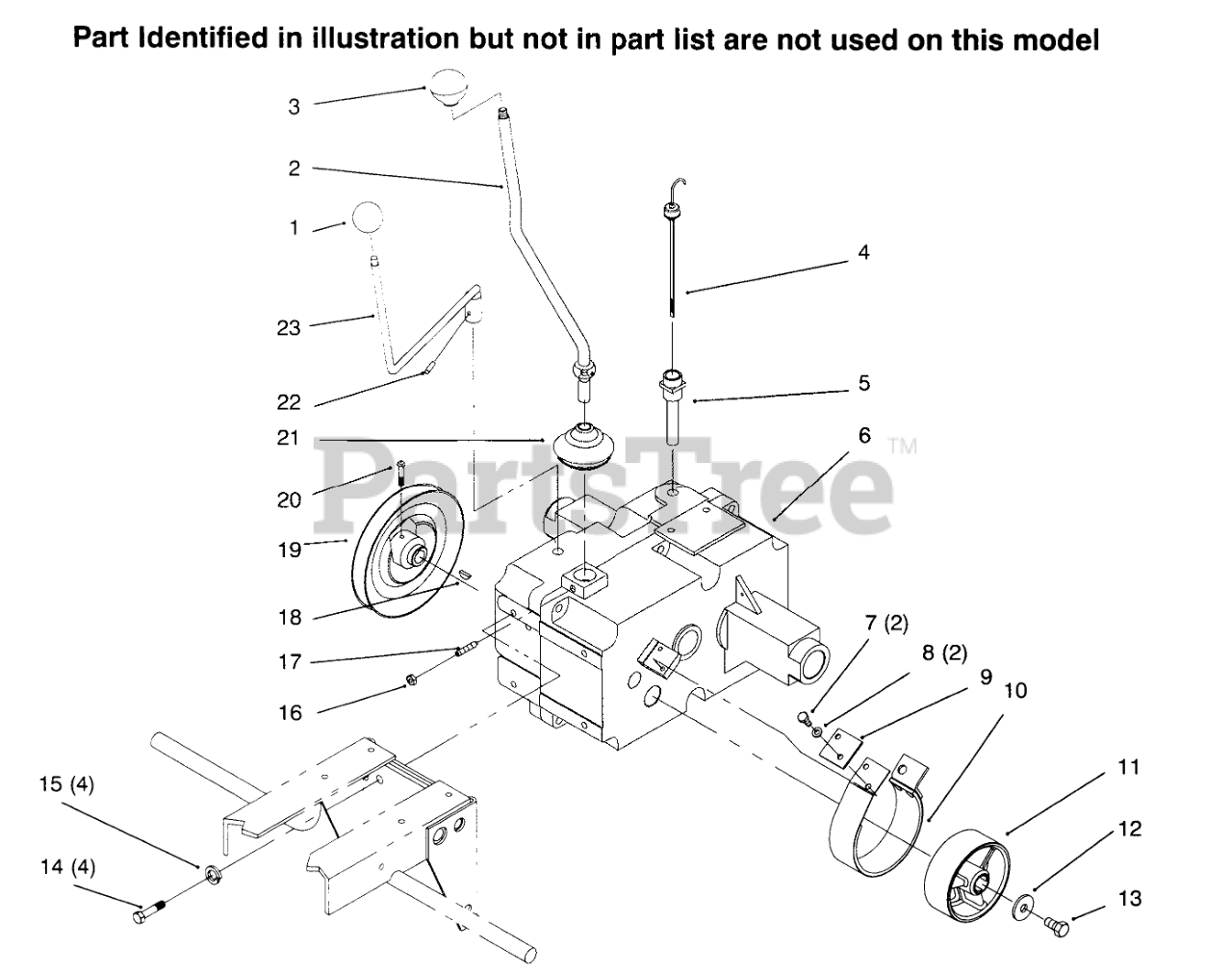

TRANSMISSION Parts Diagram

  • Title

1

Toro 83-2710

KNOB

$16.99

$

Usually ships in 3-6 days

0

2

Toro 110725

ASM-Rod
(Superseded to 95-7684)

$200.99

$

In Stock, only 1 left!

0

3

Toro 108758

KNOB

$15.99

$

In Stock, only 4 left!

0

4

Toro 101847

Dipstick
(Superseded to 101847-03)

$

$

Not available

5

Toro 102703

NIPPLE-FILL, TRANSMISSION

$

$

Not available

6

Toro 92-8708

Trans ASM 8 Pin 8 Spd
(Superseded to 94-6671)

$6406.99

$

Usually ships in 3-6 days

0

7

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 9598

Plate-Stop
(Superseded to 94-6696-03)

$10.99

$

Usually ships in 3-6 days

0

10

Toro 9593

BRAKE BAND ASM

$156.99

$

In Stock, only 3 left!

0

11

Toro 106719

DRUM-BRAKE

$109.99

$

Usually ships in 3-6 days

0

12

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

13

Toro 110234

SCREW-HEX HD CAP

$5.49

$

In Stock, only 1 left!

0

14

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

15

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

16

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

17

Toro 1239

SETSCREW

$10.99

$

In Stock, Qty 7

0

18

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$

$

Not available

19

Toro 106165

PULLEY-TRANSMISSION

$148.99

$

Usually ships in 3-6 days

0

20

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

21

Toro 3577

COVER-DUST

$

$

Not available

22

Toro 933184

PIN-SPIROL

$1.49

$

In Stock, Qty 8

0

23

Toro 110727

SHIFT ROD ASM

$93.99

$

Usually ships in 3-6 days

0

24

Toro 94-1834

DECAL-UNIDRIVE

$5.99

$

In Stock, Qty 7

0
