73402 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) HITCHES Parts Diagram

Garden Tractor

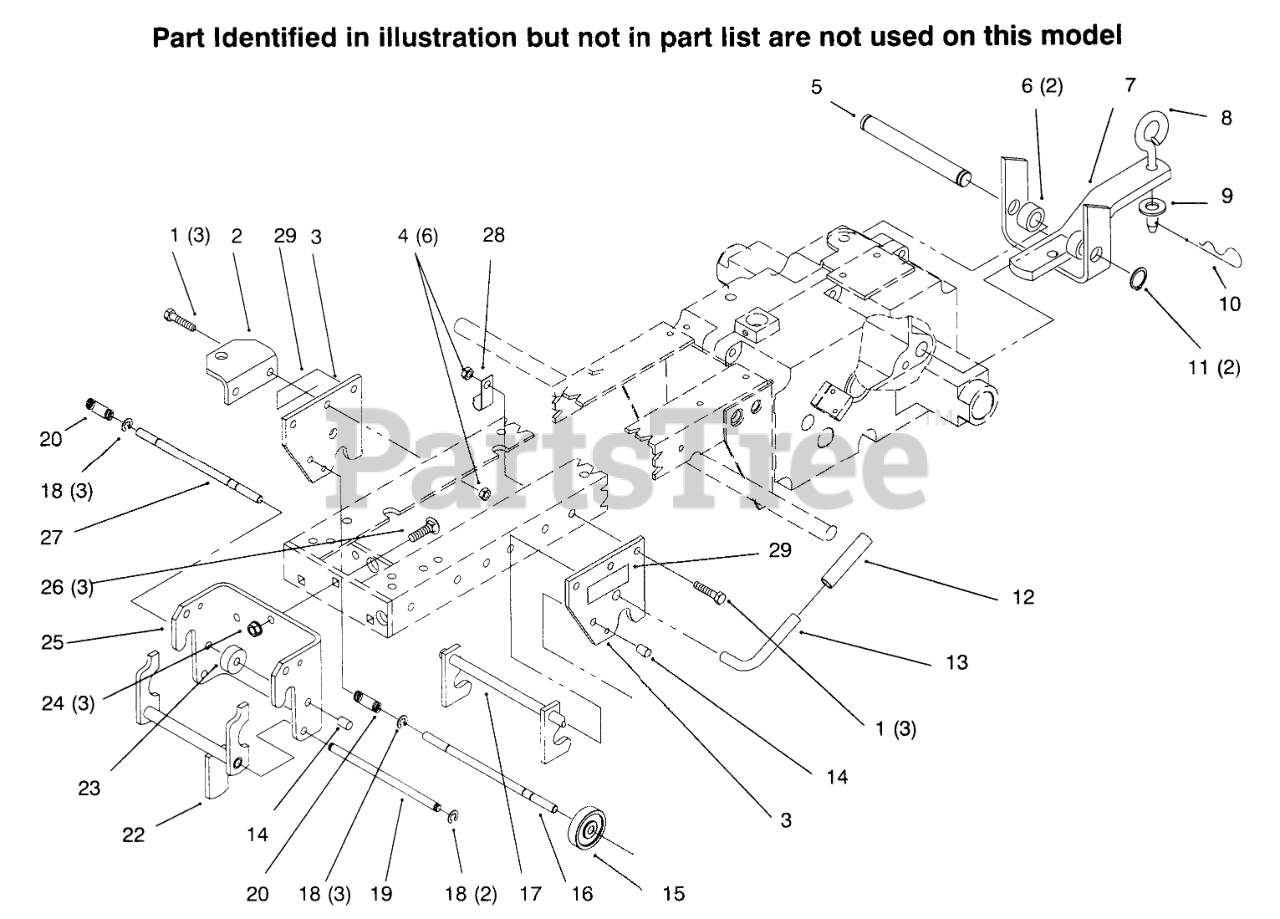

HITCHES Parts Diagram

  • Title
1

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

2

Toro 102870

Axle
(Superseded to 102870-01)

$34.99

$

Usually ships in 3-6 days

0

3

Toro 102644

Hitch Plate
(Superseded to 102644-01)

$32.99

$

Usually ships in 3-6 days

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 105269

PIN-STATIONARY HITCH

$

$

Not available

6

Toro 9791204

SPACER

$

$

Not available

7

Toro 1644

Hitch
(Superseded to 98-8083-01)

$98.99

$

In Stock, only 1 left!

0

8

Toro 106634

PIN-TOOL

$

$

Not available

9

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

11

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

12

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

14

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

15

$31.99

$

Usually ships in 3-6 days

0

16

Toro 83-6520

ROD-LOCK

$45.99

$

Usually ships in 3-6 days

0

17

Toro 117930

MID HITCH ASM

$95.99

$

In Stock, only 1 left!

0

18

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

19

Toro 101750

ROD-LATCH PIVOT

$49.99

$

Usually ships in 3-6 days

0

20

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

22

Toro 93-1613

LATCH

$

$

Not available

23

$

$

Not available

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 101711

Front Hitch
(Superseded to 101711-01)

$115.99

$

Usually ships in 3-6 days

0

26

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

27

Toro 101751

ROD-LOCK

$27.99

$

Usually ships in 3-6 days

0

28

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

29

Toro 94-6330

DECAL - ATTACH-A-MATIC

$

$

Not available
