73402 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) FRONT PLATE. RELAYS Parts Diagram

Garden Tractor

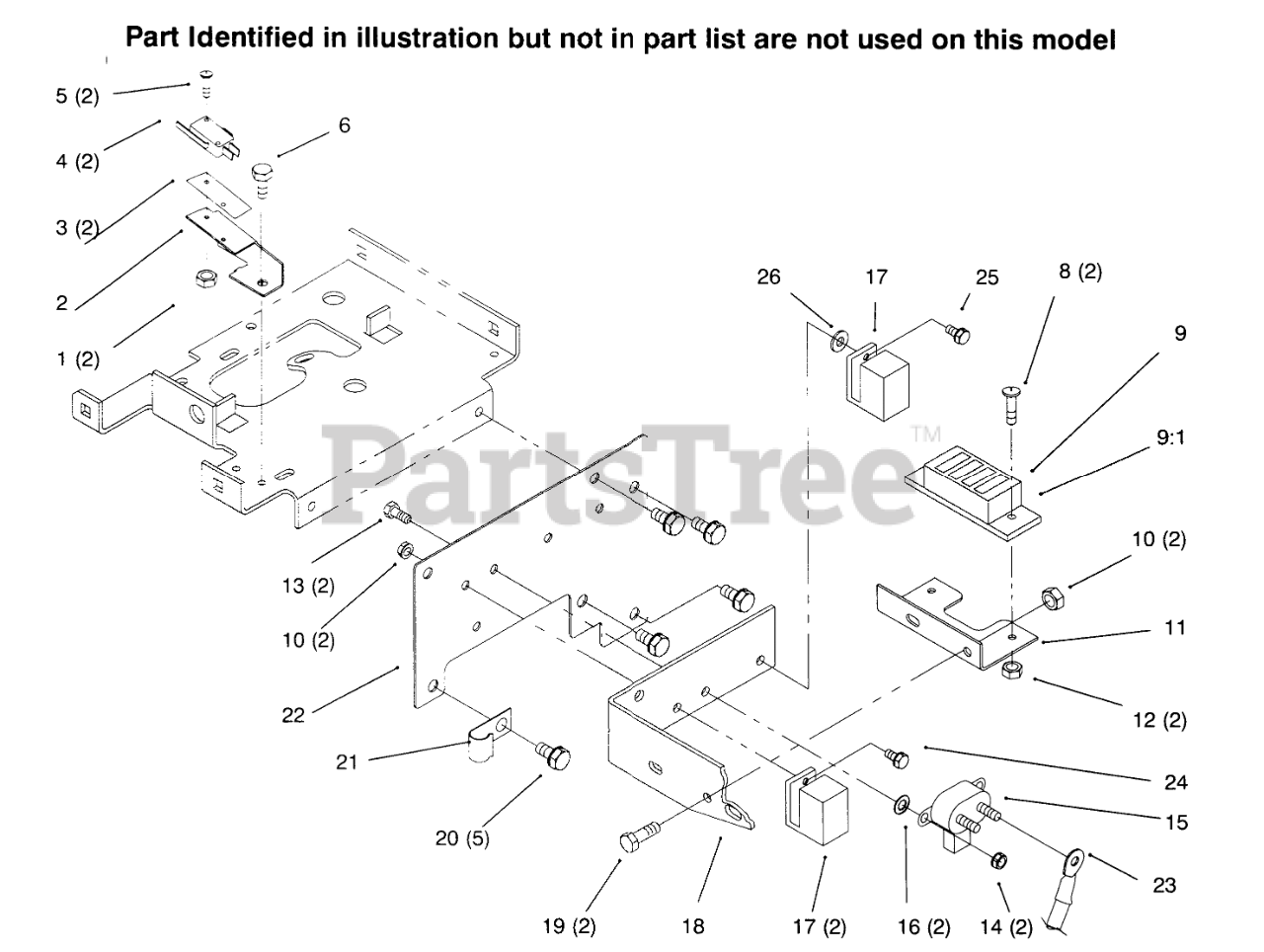

FRONT PLATE. RELAYS Parts Diagram

  • Title

1

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

2

Toro 115411

BRACKET-SWITCH

$

$

Not available

3

Toro 111642

BARRIER - SWITCH

$

$

Not available

4

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

5

Toro 9104784

SCREW-PHL 4-40X1 1/4

$1.99

$

Usually ships in 3-6 days

0

6

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

8

Toro 9107944

SCREW-PAN

$2.99

$

Usually ships in 3-6 days

0

9

Toro 79-3590

WIRING HARNESS & DIA

$

$

Not available

9:1

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

11

Toro 117331

FUSE HOLDERB
(Superseded to 117331-03)

$

$

Not available

12

Toro 9157404

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

13

Toro 9601524

SCREW1/4-20X5/8 WHIZ
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

14

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

15

Toro 92-9845

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, only 4 left!

0

16

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

17

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0

18

Toro 109554

BRACKET-BELTB

$

$

Not available

19

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

21

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

22

Toro 78-3020

Front Plate
(Superseded to 78-3020-03)

$

$

Not available

23

Toro 111069

ASSY WIRE

$

$

Not available
