73402 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) CRANKCASE AND CYLINDER HEAD Parts Diagram

Garden Tractor

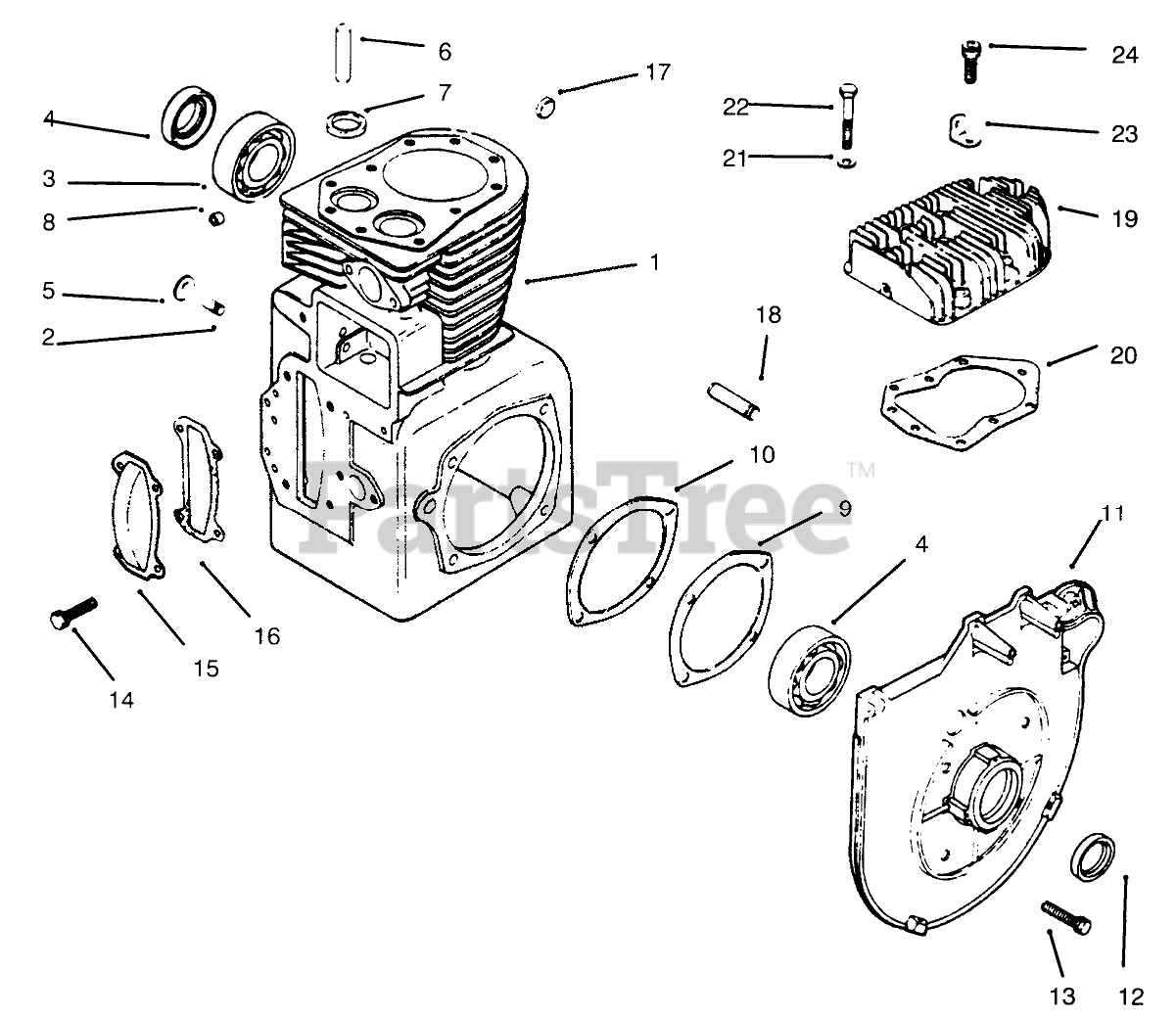

CRANKCASE AND CYLINDER HEAD Parts Diagram

  • Title

1

Toro 47-782-67

Short Block 14hp

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

1

Toro 47-782-80

Miniblock W/Out Crank

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

2

Kohler 235125-S

Shaft-Govemor

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$87.99

$

Usually ships in 2-5 days

0

3

Kohler 235376

Ball Bearing
(Superseded to 235376-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$232.99

$

Usually ships in 2-5 days

0

4

Toro 47-032-07

Seal

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

5

Kohler X-230-11

Plug
(Superseded to X-230-11-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$2.99

$

In Stock, only 2 left!

0

6

Kohler 235007-S

Guide Valve

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Not available

7

Kohler 230265

Insert
(Superseded to 230265-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Not available

8

Kohler 234866

Bearing
(Superseded to 234866-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$9.99

$

Usually ships in 2-5 days

0

9

Toro 47-041-09

Gasket

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

10

Toro 47-522-05

Gasket

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

11

Toro 47-146-11

Plate-Bearing

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

12

Toro 47-032-06

Seal

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

13

Kohler X-159-2

Screw
(Superseded to X-159-2-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$4.49

$

Usually ships in 2-5 days

0

14

Kohler X-132-6

Screw
(Superseded to X-132-6-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 235026

Cover
(Superseded to 235026-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Not available

16

Kohler 235025

Gasket
(Superseded to 235025-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$10.99

$

In Stock, Qty 6

0

18

Kohler 236559

Shaft
(Superseded to 236559-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Not available

19

Toro 47-015-06

Head-Cylinder

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

20

Toro 47-041-15

Gasket

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

21

Kohler 270889

Washer
(Superseded to 270889-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$8.49

$

In Stock, Qty 9

0

22

Kohler 270158

Screw
(Superseded to 270158-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$4.49

$

Usually ships in 2-5 days

0

23

Toro 47-455-02

Strap-Lifting

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

24

Toro 47-086-17

Screw

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

Toro 47-004-02

Set-Gasket W/Seals

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

Toro 47-755-27

Set-Gasket W/Seals

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable
