73402 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) BREATHER AND VENT Parts Diagram

Garden Tractor

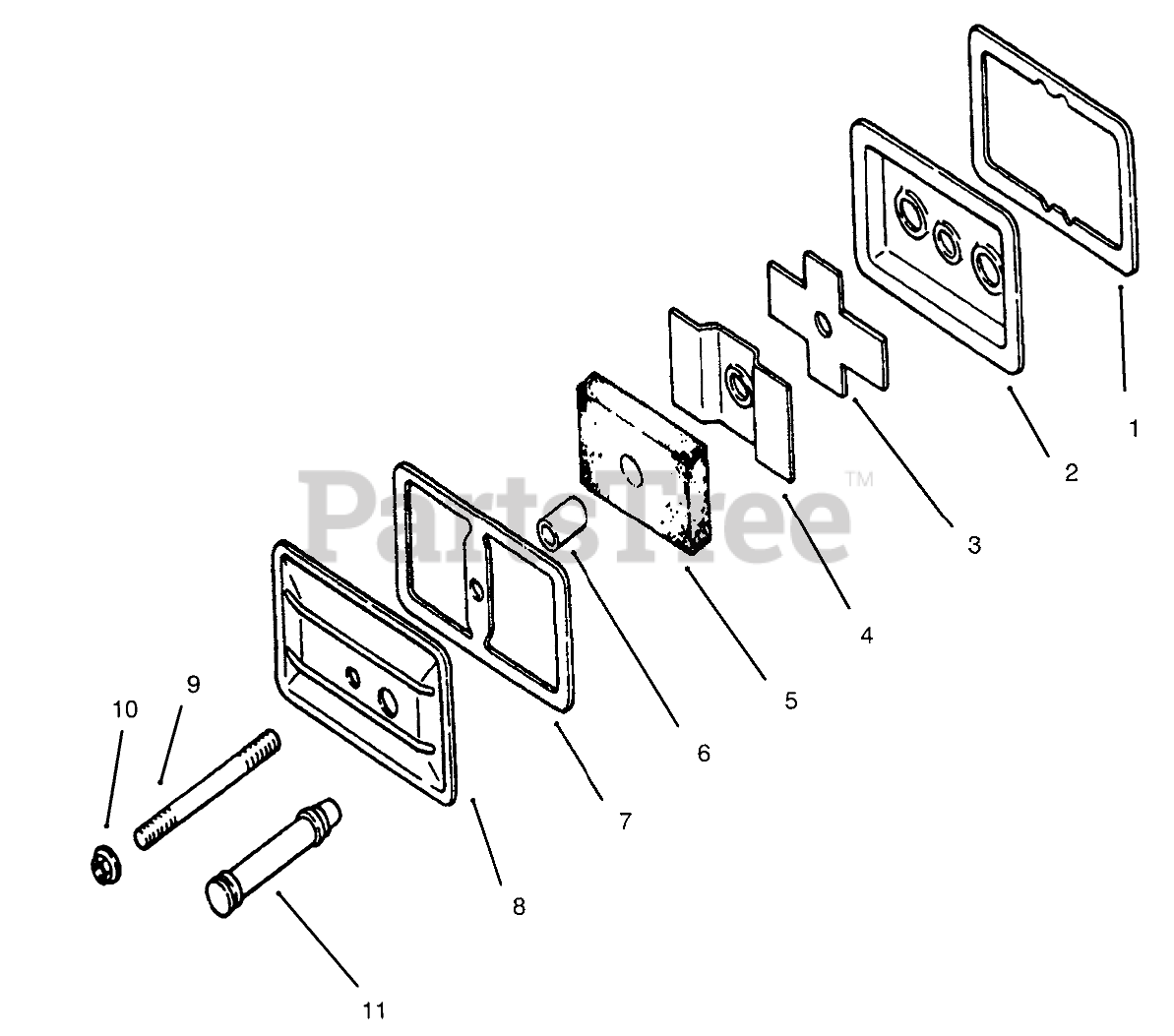

BREATHER AND VENT Parts Diagram

  • Title

1

Kohler 236765

Gasket
(Superseded to 48 108 07)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$196.99

$

Usually ships in 2-5 days

0

2

Kohler 235631

Plate
(Superseded to 235631-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$39.99

$

Usually ships in 2-5 days

0

3

Kohler 235047

Reed
(Superseded to 235047-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$37.99

$

Usually ships in 2-5 days

0

4

Kohler 270146

Baffle
(Superseded to 270146-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$9.99

$

Usually ships in 2-5 days

0

5

Toro 47-050-01

Filter

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

6

Kohler 231032

Seal
(Superseded to 231032-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$8.49

$

Usually ships in 2-5 days

0

7

Kohler 275144

Gasket
(Superseded to 275144-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$7.99

$

Usually ships in 2-5 days

0

8

Toro 47-096-01

Cover

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

9

Kohler 275220

Stud
(Superseded to 275220-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Not available

10

Kohler X-799-1

Palnut
(Superseded to X-799-1-S)

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$3.99

$

Usually ships in 2-5 days

0

11

Toro 47-326-03

Hose

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable
