734017 - Gravely 48" Dethatcher for GEM Tractor Frame Pivot Parts Diagram

48" Dethatcher for GEM Tractor

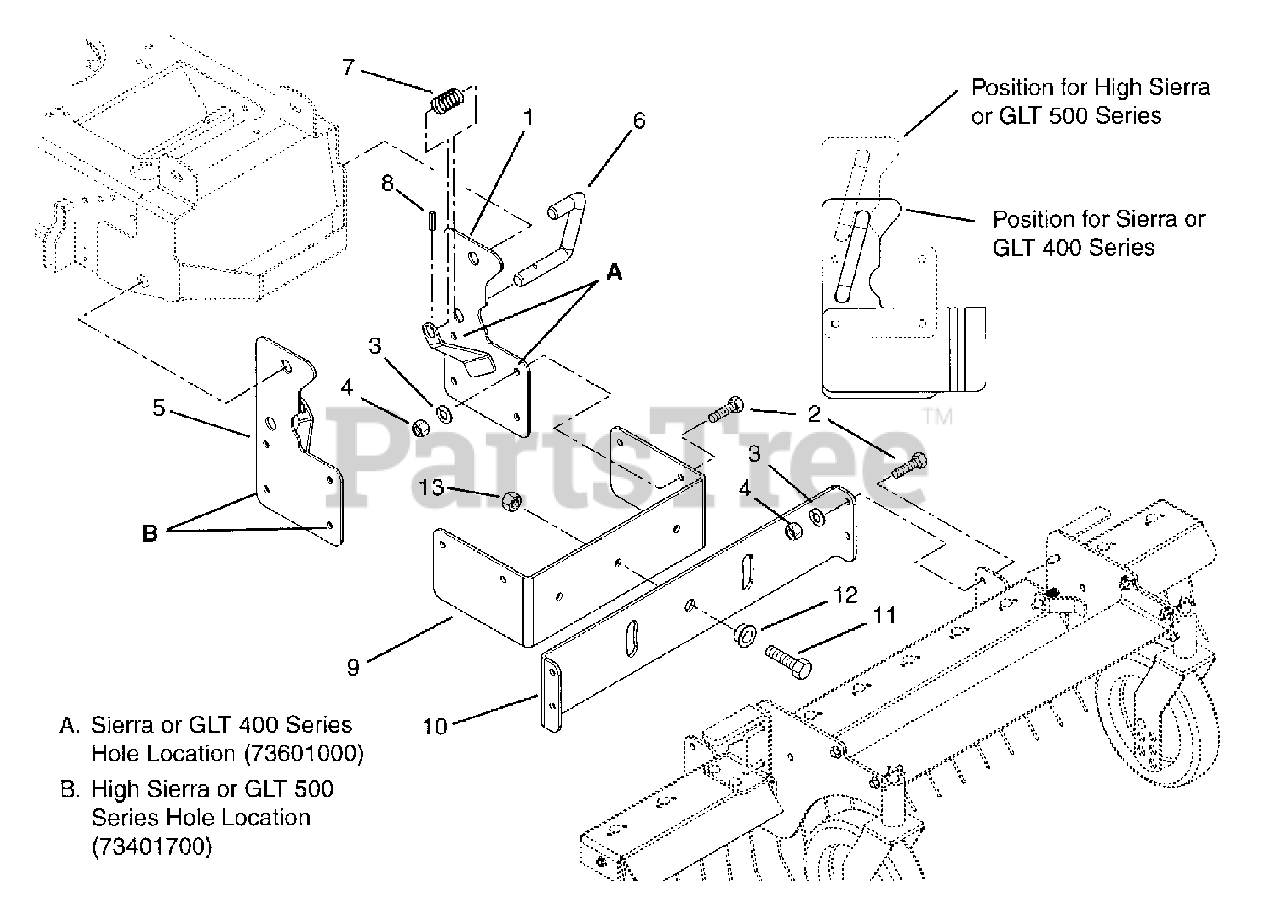

Frame Pivot Parts Diagram

  • Title

1

Gravely 03659851

Pivot-Frame Left Hand

$

$

Not available

2

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06308600

Washer-Lock .312 x .097
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

5

Gravely 03659951

Pivot-Frame Right Hand

$

$

Not available

6

Gravely 03359900

Pin-Latch

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 051644

Spring-Compression .072 x .77 x 1.75
(Superseded to 08326000)

$

$

Not available

8

Gravely 05801600

Pin-Roll .188 x 1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

9

Gravely 03660551

Stabilizer-Pivot Frame

$

$

Not available

10

Gravely 03660651

Stabilizer-Channel Support

$

$

Not available

11

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05514600

Bushing-Flange .390 x .625 x .328 x .875
(Superseded to 00206900)

$

$

Not available

13

Gravely 06529600

Nut-Hex .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
