734017 - Ariens 48" Dethatcher Attachment Frame Pivot Parts Diagram

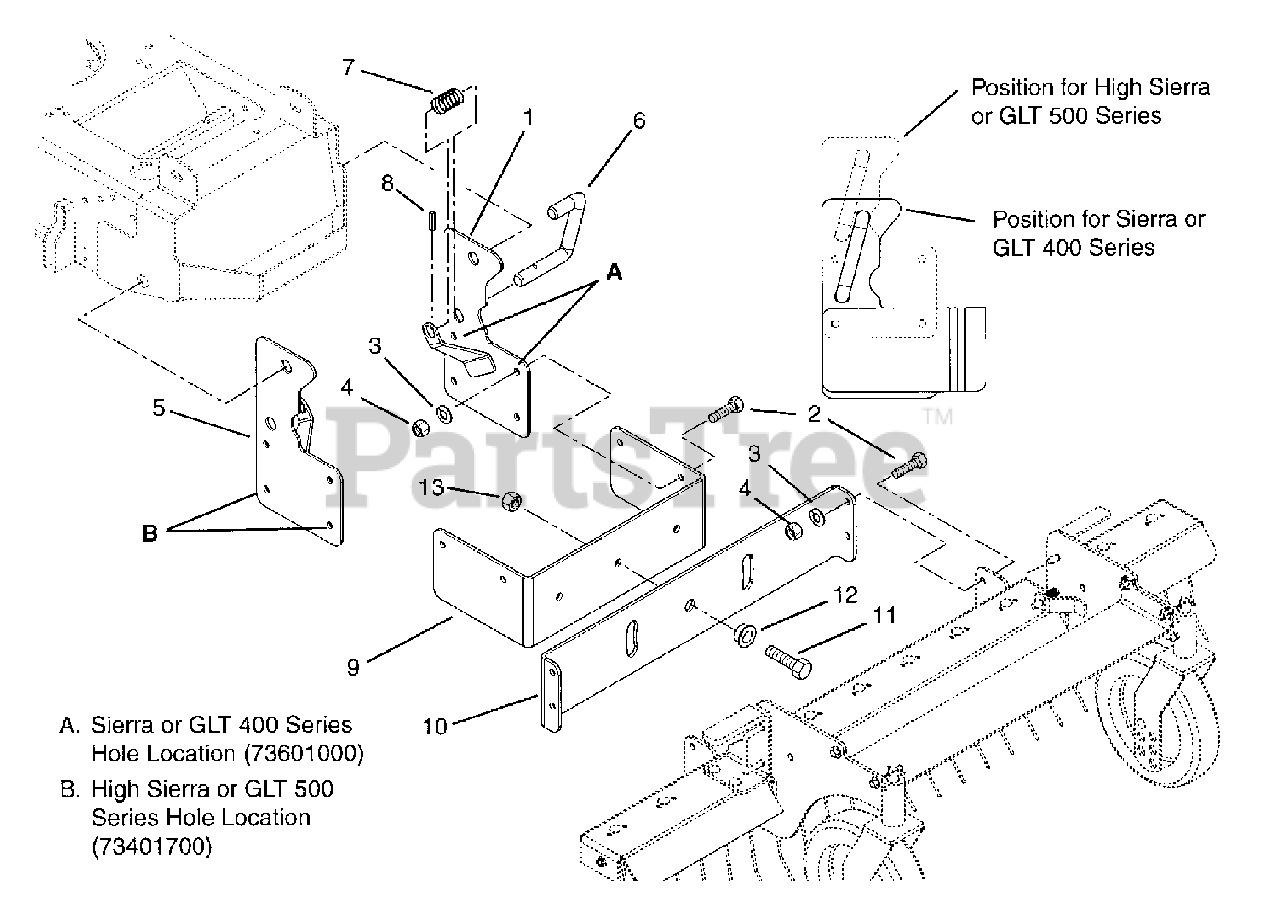

48" Dethatcher Attachment

Frame Pivot Parts Diagram

  • Title

1

Ariens 03659851

PIVOT FRAME LH

$

$

Not available

2

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

5

Ariens 03659951

PIVOT FRAME RH

$

$

Not available

6

Ariens 03359900

PIN, LATCH

$13.99

$

Usually ships in 4-12 days

0

7

Ariens 051644

SG-COMP .072X.77X1.75
(Superseded to 08326000)

$

$

Not available

8

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

9

Ariens 03660551

STABILIZER - PIVOT FRAME

$

$

Not available

10

Ariens 03660651

STABLIZER - CHANNEL SUPPORT

$

$

Not available

11

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05514600

BSHG-FLG .390X.625X.328X.875
(Superseded to 00206900)

$

$

Not available

13

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
