734015 - Ariens High Sierra 48" Lawn Dethatcher Channel, Pivot, And Wheels Parts Diagram

High Sierra 48" Lawn Dethatcher

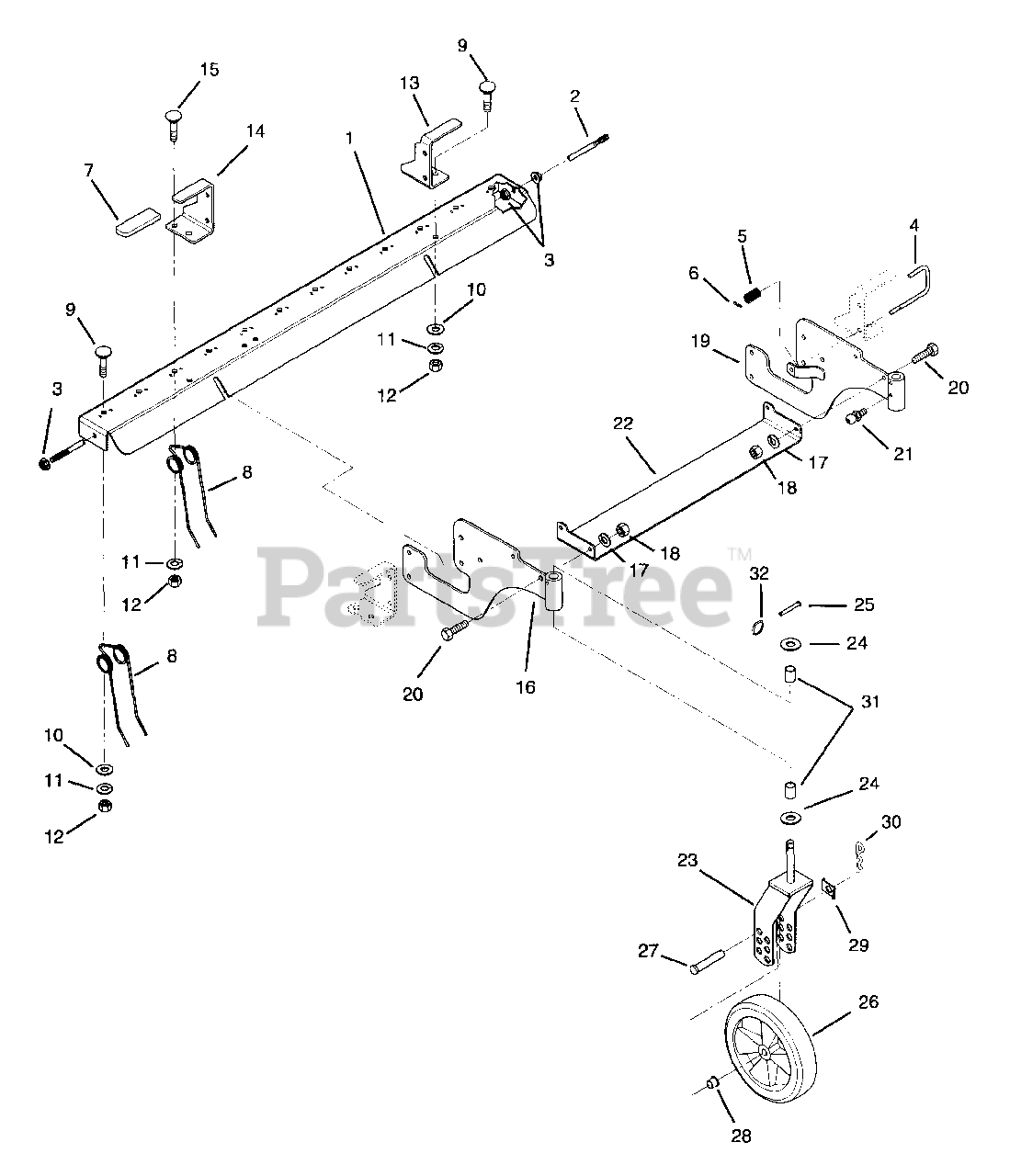

Channel, Pivot, And Wheels Parts Diagram

  • Title

1

Ariens 03659600

CHANNEL
(Superseded to 03659659)

Note: (736007)

$

$

Not available

1

Ariens 03359800

CHANNEL
(Superseded to 03359859)

Note: (734015)

$

$

Not available

2

Ariens 03618800

ROD

Note: (736007)

$

$

Not available

2

Ariens 03062400

ROD

Note: (734015)

$

$

Not available

3

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 03669200

J-PIN .312 DIA. YWZC

$

$

Not available

5

Ariens 08313100

SG-COMP .063X.53X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 7

0

6

Ariens 05808100

PIN-ROLL .094X.750

$0.99

$

In Stock, only 2 left!

0

7

Ariens 07509400

GRIP

$

$

Not available

8

Ariens 01136100

SPRING

Note: (736007)

$22.99

$

In Stock, only 1 left!

0

8

Ariens 01136100

SPRING

Note: (734015)

$22.99

$

In Stock, only 1 left!

0

9

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

Note: (736007)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

Note: (734015)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

Note: (736007)

$3.99

$

In Stock, only 3 left!

0

10

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

Note: (734015)

$3.99

$

In Stock, only 3 left!

0

11

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (736007)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (734015)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (736007)

$0.99

$

In Stock, Qty 10

0

12

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (734015)

$0.99

$

In Stock, Qty 10

0

13

Ariens 03669100

BRACKET-CHANNEL PIVOT LH
(Superseded to 03669159)

$

$

Not available

14

Ariens 03669000

BRACKET-CHANNEL PIVOT RH
(Superseded to 03669059)

$

$

Not available

15

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

16

Ariens 03669300

SUPPORT-CHANNEL RH
(Superseded to 03669359)

$

$

Not available

17

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$

$

Not available

18

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

19

Ariens 03669400

SUPPORT-CHANNEL LH
(Superseded to 03669459)

$

$

Not available

20

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

22

Ariens 03660900

BRACE

$

$

Not available

23

Ariens 01169300

WHEEL YOKE WELDMENT
(Superseded to 01169359)

$149.99

$

In Stock, only 1 left!

0

24

Ariens 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$2.49

$

In Stock, only 3 left!

0

25

Ariens 06811500

PIN-CLEV .25X1.75
(Superseded to 06814600)

$3.99

$

In Stock, Qty 6

0

26

Ariens 07120100

WHEEL
(Superseded to 51116000)

$67.99

$

In Stock, only 1 left!

0

27

Ariens 01168300

PIN-CLEV .494X2.62 YWZC

$9.49

$

In Stock, only 2 left!

0

28

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

29

Ariens 01168100

AXLE TAB

$16.99

$

In Stock, only 2 left!

0

30

Ariens 06713200

PIN-HAIR-INT .15X.43X2.75 YWZC
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

31

Ariens 05504700

BSHG-SLV .625X.750X.500 BR

$11.99

$

In Stock, only 1 left!

0

32

Ariens 01169200

KICKOUT RING YWZC
(Superseded to 01239800)

$2.49

$

In Stock, only 2 left!

0
