73401 (314-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) ENGINE, MUFFLER, PULLEY & DRIVE BELT Parts Diagram

Garden Tractor

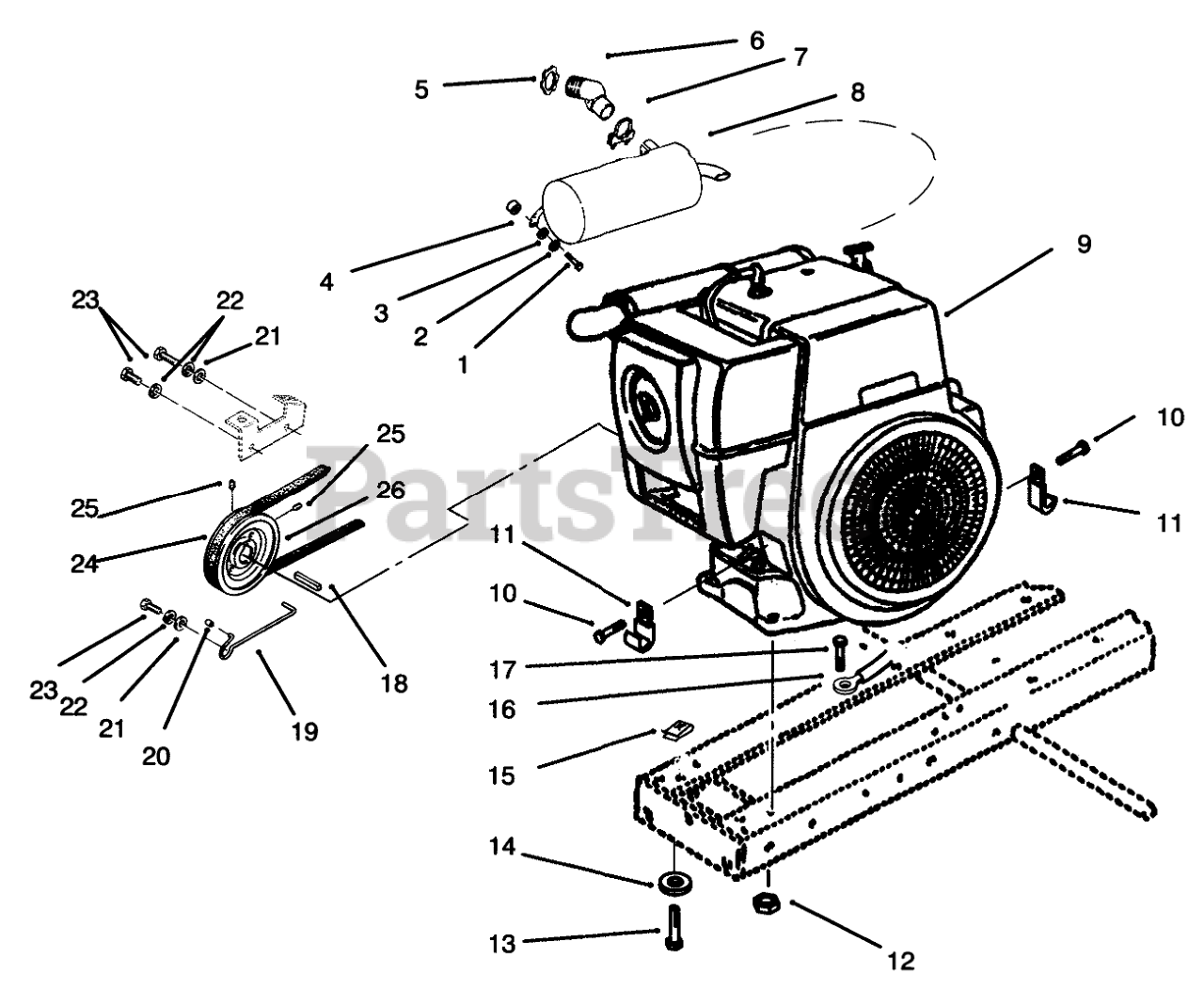

ENGINE, MUFFLER, PULLEY & DRIVE BELT Parts Diagram

  • Title

1

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 6876

SPACER

$

$

Not available

5

Toro KH10535

Nut-Lock

$

$

Not available

6

Toro KH10278

Elbow

$

$

Not available

7

Toro 106858

CLAMP-1 1/2
(Superseded to 2112-9)

$9.99

$

Usually ships in 3-6 days

0

8

Toro 112213

Muffler
(Superseded to 94-3739)

$

$

Not available

9

Toro 92-1532

Engine-14HP

$

$

Not available

10

Screw (Engine) Ref

$

$

Not available

11

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

15

Toro 3023

SPEED CLIP

$

$

Not available

16

Toro 109910

WIRE GROUND

$5.99

$

Usually ships in 3-6 days

0

17

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 105453

Key

$2.49

$

In Stock, only 2 left!

0

19

Toro 111242

GUIDE BELT

$

$

Not available

20

Toro 112841

CAP

$

$

Not available

21

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

24

Toro 108501

V-BELT TRANS DRIVE

$67.99

$

In Stock, only 2 left!

0

25

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

26

Toro 7443

PULLEY

$

$

Not available
