73401 (314-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) CLUTCH, BRAKE MOTION CONTROL LINKAGE Parts Diagram

Garden Tractor

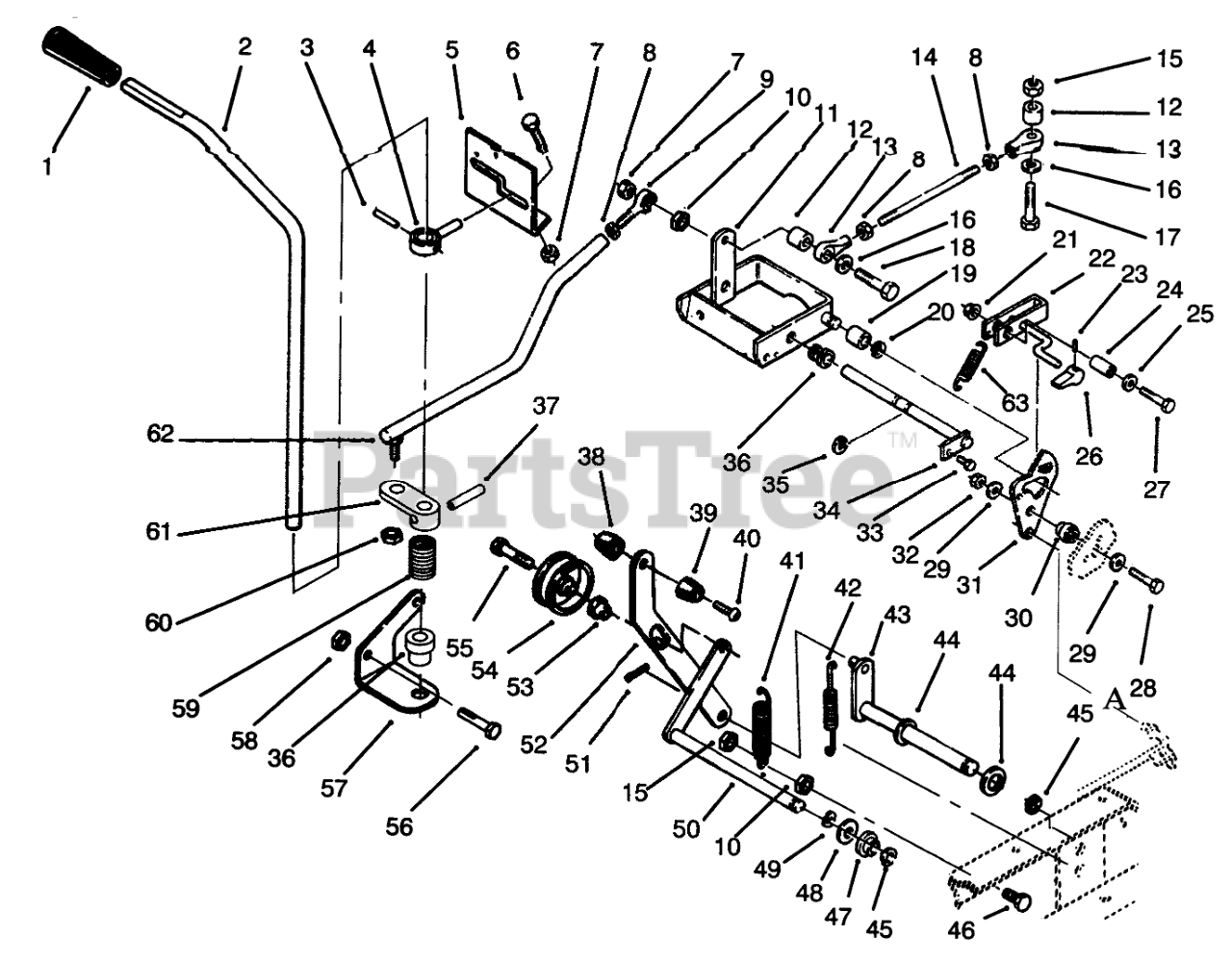

CLUTCH, BRAKE MOTION CONTROL LINKAGE Parts Diagram

  • Title
1

Toro 116635

Knob-Motion Control
(Superseded to 94-6668)

$

$

Not available

2

Toro 78-5660

ROD-MOTION CONTROL

$212.99

$

Usually ships in 3-6 days

0

3

Toro 933198

SPIROL PIN 7/32X7/8

$1.99

$

Usually ships in 3-6 days

0

4

Toro 118660

GUIDE-CONTROL

$

$

Not available

5

Toro 78-5631

Bracket-Control
(Superseded to 78-5631-03)

$

$

Not available

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

8

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

9

Toro 116407

ROD END, 1/4-28

$60.99

$

Usually ships in 3-6 days

0

10

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

11

Toro 113454

Cam Comtrol
(Superseded to 113454-03)

$

$

Not available

12

Toro 100304

Spacer

$6.99

$

Usually ships in 3-6 days

0

13

Toro 110189

ASSY ROD END

$

$

Not available

14

Toro 108904

ROD-CONTROL

$28.99

$

Usually ships in 3-6 days

0

15

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

18

Toro 9114584

HHCS 1/4X2.25 FULL T

$4.49

$

In Stock, only 1 left!

0

19

Toro 100656

BEARING-CAM RETURN

$6.49

$

In Stock, Qty 5

0

20

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

21

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

22

Toro 78-8500

Lever-Parking Brake
(Superseded to 78-8500-03)

$

$

Not available

23

Toro 933135

PIN-SPIROL 3/32X5/8

$

$

Not available

24

Toro 102025

SPACER

$

$

Not available

25

Toro 9202414

WASHER-SPACER

$5.49

$

Usually ships in 3-6 days

0

26

Toro 118860

KNOB-PARKING BRAKE

$

$

Not available

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Toro 108717

Spacer

$

$

Not available

31

Toro 108716

Cam Plate
(Superseded to 108716-03)

$

$

Not available

32

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

33

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

34

Toro 108496

ASSY-ROD CAM PIVOT

$

$

Not available

35

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

36

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 16

0

37

Toro 32121-94

PIN-SPECIAL

$

$

Not available

38

Toro 8722

KNOB

$21.99

$

In Stock, only 3 left!

0

39

Toro 8693

KNOB

$6.99

$

In Stock, Qty 9

0

40

Toro 9117474

Screw

$

$

Currently unavailable

41

Toro 107938

SPRING-EXTENSION

$13.99

$

In Stock, only 1 left!

0

42

Toro 110769

SPRING-EXTENSION

$14.99

$

In Stock, only 4 left!

0

43

Toro 106369

ASSY-BRAKE LEVER

$

$

Not available

44

Toro 9202634

WASHER

$6.49

$

Usually ships in 3-6 days

0

45

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

46

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

47

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

48

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

49

Toro 114823

CURVED-SPRING WASHER

$9.49

$

Usually ships in 3-6 days

0

50

Toro 78-6020

WLDMT-IDLER ARM

$

$

Not available

51

Toro 3272-2

PIN-COTTER

$2.99

$

In Stock, only 2 left!

0

52

Toro 110780

Handle
(Superseded to 110780-03)

$43.99

$

In Stock, Qty 6

0

52

Toro 106368

ASSY-ARM/ROD WA

$

$

Not available

53

Toro 106450

SPACER-BRAKE LINK

$

$

Not available

54

Toro 112426

PULLEY-IDLER

$26.99

$

In Stock, only 1 left!

0

55

Toro 106193

BOLT-SPECIAL HEX

$10.99

$

In Stock, Qty 8

0

56

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

57

Toro 78-1540

Bracket-Control
(Superseded to 78-1540-03)

$

$

Not available

58

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

59

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

60

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

61

Toro 116321

ARM-CONTROL

$

$

Not available

62

Toro 116324

ASSY-ROD & BALL JOINT

$358.99

$

Usually ships in 3-6 days

0

63

Toro 83-2820

EXTENSION-SPRING

$

$

Not available
