73401 (314-H) - Toro Garden Tractor (SN: 059001261 - 059999999) (1995) CAMSHAFT, CRANKSHAFT AND VALVES Parts Diagram

Garden Tractor

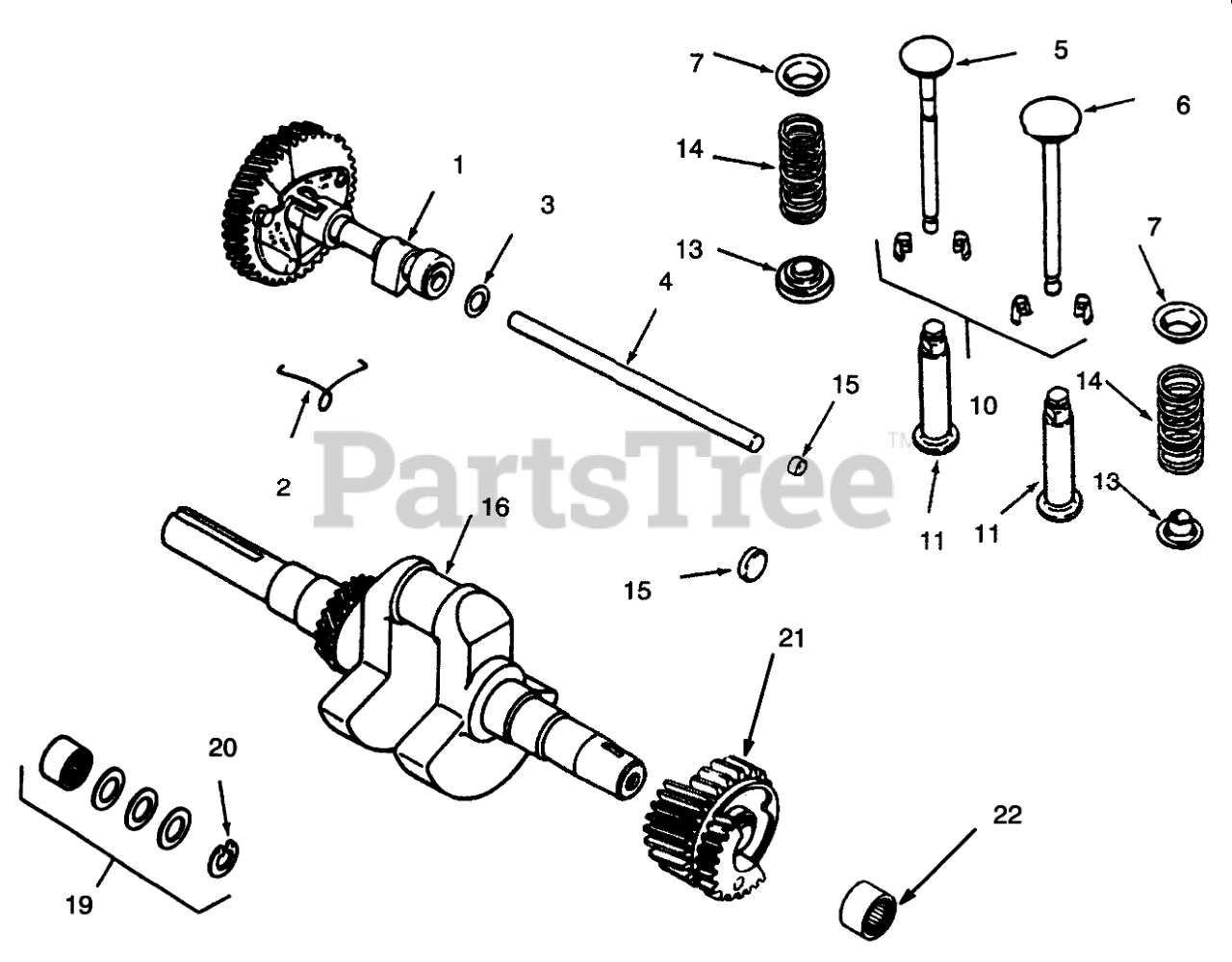

CAMSHAFT, CRANKSHAFT AND VALVES Parts Diagram

  • Title
1

Toro KH10259

Camshaft Assy (Incl. Ref. #2)

$

$

Not available

2

Toro KH10292

Spring

$

$

Not available

3

Toro KH10147

Spacer .005

$

$

Not available

Toro KH10148

Spacer .010

$

$

Not available

4

Toro KH10310

Camshaft Pin

$

$

Not available

5

Toro KH10090

Valve-Exhaust

$

$

Not available

6

Toro KH10071

Valve-Intake

$

$

Not available

7

Toro KH10054

UpperSpring Retainer

$

$

Not available

10

Toro KH10221

Kit-Retainer

$

$

Not available

11

Toro KH10539

Tappet

$

$

Not available

13

Toro KH10496

Rotator-Valve

$

$

Not available

14

Toro KH10062

Spring

$

$

Not available

15

$

$

Not available

16

Toro KH10245

Kit-Crankshaft (Includes Flywheel Hdwr.)

$

$

Not available

19

Toro KH10322

Kit-Spacer (Incl. Ref. #20)

$

$

Not available

20

Toro KH10574

Retainer

$

$

Not available

21

Toro KH10228

Gear Assembly (Incl. Ref. #22)

$

$

Not available

22

Toro KH10267

Bearing-Needle

$

$

Not available
