73401 (314-H) - Toro Garden Tractor (SN: 059001261 - 059999999) (1995) BELT GUARD & FOOTRESTS Parts Diagram

Garden Tractor

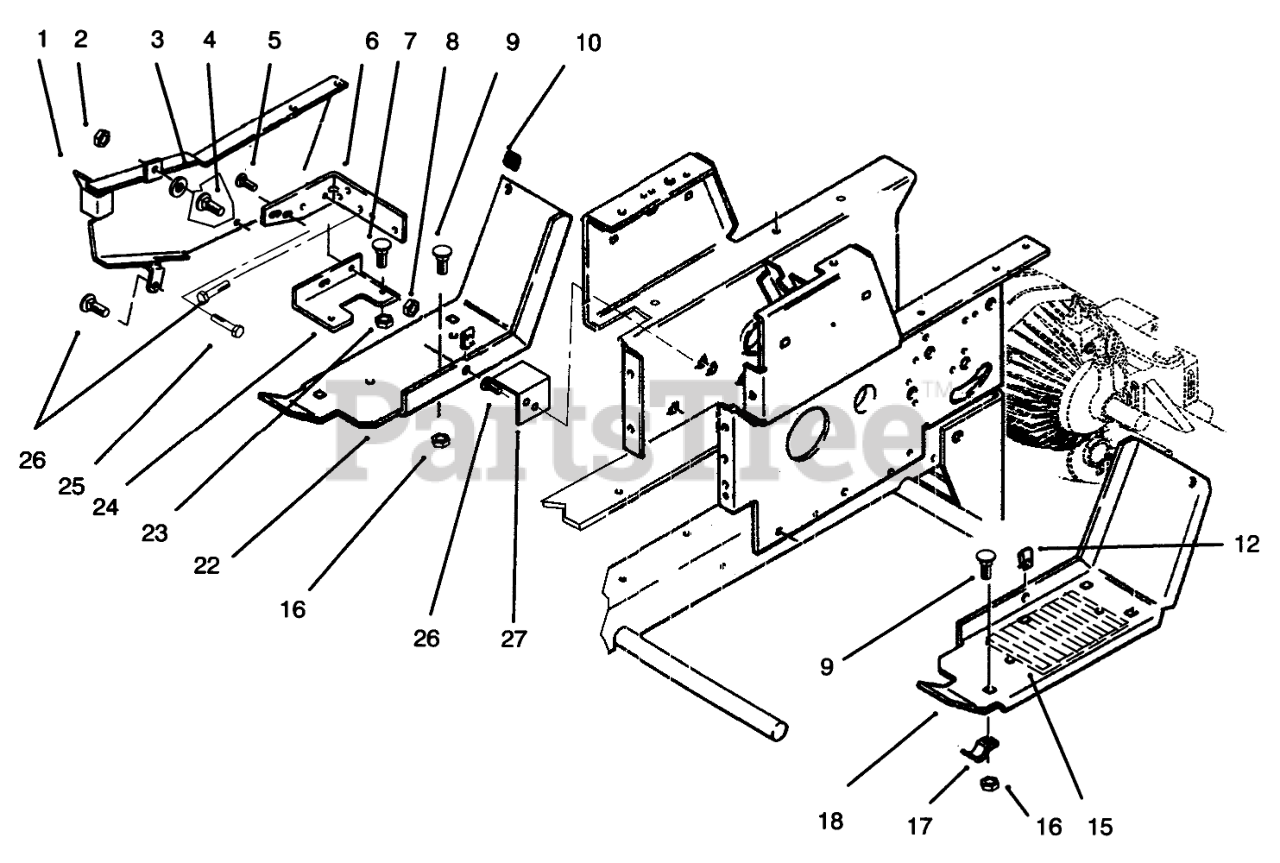

BELT GUARD & FOOTRESTS Parts Diagram

  • Title

1

Toro 107975

Belt Guard
(Superseded to 95-7695-01)

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 108457

NUT-PUSH

$

$

Not available

4

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 109554

BRACKET-BELTB

$

$

Not available

7

Toro 910794

BOLT

$

$

Not available

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

9

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 518211

BUMPER

$4.49

$

In Stock, Qty 6

0

12

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 110636

PAD FOOTREST

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 7456

BRACKET

$

$

Not available

18

Toro 106223

FOOTREST LH R

$

$

Not available

22

Toro 106222

Footrest-RH
(Superseded to 106222-01)

$

$

Not available

23

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

24

Toro 117331

FUSE HOLDERB
(Superseded to 117331-03)

$

$

Not available

25

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

26

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

27

Toro 108537

BRCKET-BLT SUTB

$

$

Not available
