73401 (314-H) - Toro Garden Tractor (SN: 059000001 - 059000260) (1995) WHEELS AND TIRES Parts Diagram

Garden Tractor

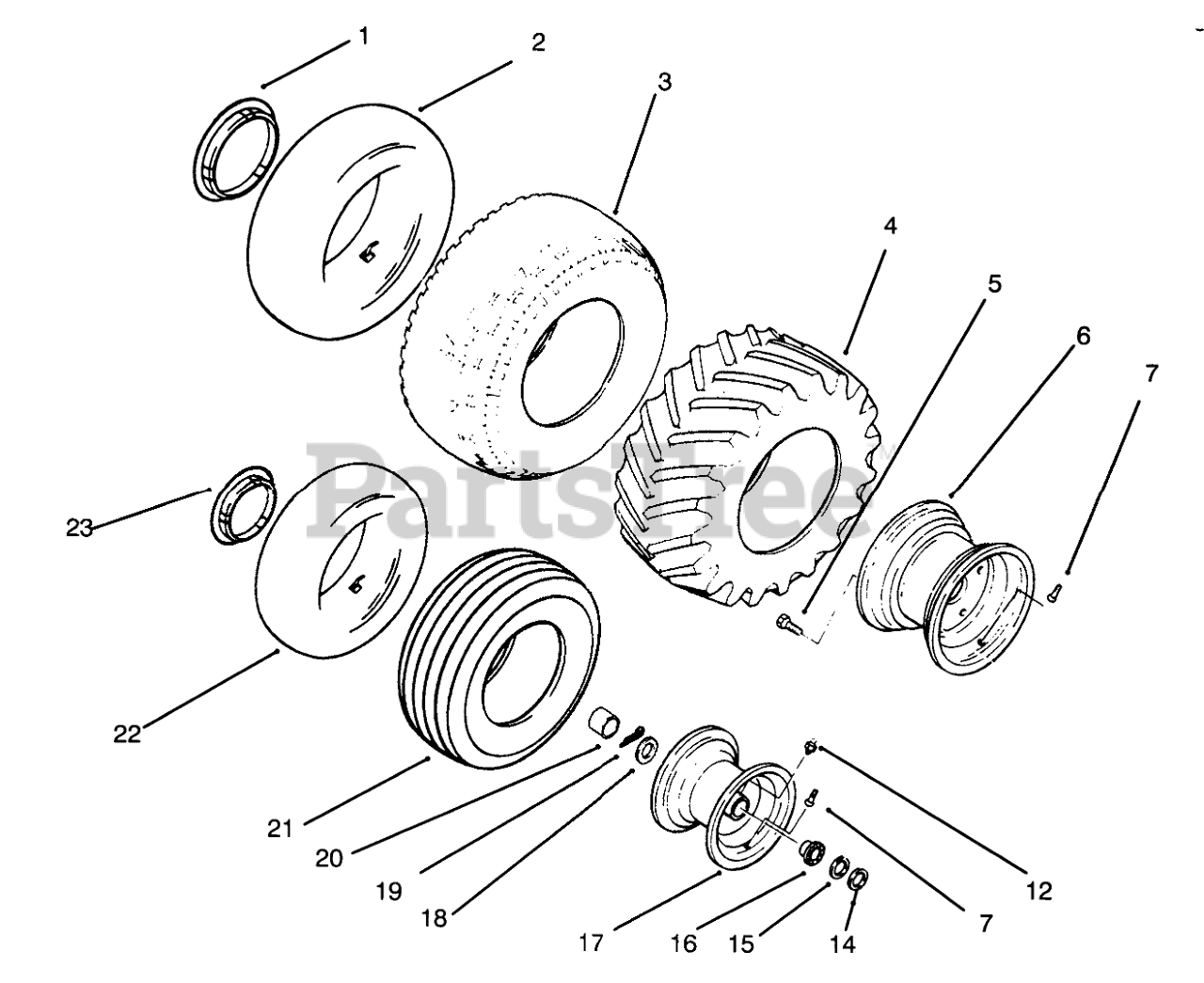

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 114428

12"-HUB CAP LOGO

$

$

Not available

2

Toro 1645

Tube-Rear (Opt.)

$

$

Currently unavailable

Toro 100291

Tube Cleat Tires
(Superseded to 231-90)

Note: Not illustrated

$

$

Not available

3

Toro 116744

TIRE
(Superseded to 116-5363)

$226.99

$

Usually ships in 3-6 days

0

4

Toro 7607

Tire-Cleat, Rear
(Superseded to 110934)

$

$

Not available

5

Toro 83-2720

BOLT-LUG

$4.99

$

In Stock, only 4 left!

0

6

Toro 111516

WHEEL

$307.99

$

Usually ships in 3-6 days

0

Toro 110677

WHEEL

Note: Not illustrated

$

$

Not available

7

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

12

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

14

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

15

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

16

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 2 left!

0

17

Toro 78-1660

Rim-Front
(Superseded to 93-9801)

$257.99

$

Usually ships in 3-6 days

0

18

Toro 11952

Washer-Special Hub Cap
(Superseded to 703499)

$

$

Not available

19

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

20

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

21

Toro 117127

Tire (16 x 6.5-8) 2-Ply -2 Wheel Axel

$

$

Not available

22

Toro 100079

TUBE

$

$

Not available

23

Toro 114426

6"-HUB CAP LOGO

$

$

Not available

Toro 78-7600

Wheel Assembly-Front (Incl. Ref.# 7,12,16 & 21)

Note: Not illustrated

$

$

Not available
