73401 (314-H) - Toro Garden Tractor (SN: 059000001 - 059000260) (1995) TRANSAXLE ASSEMBLY Parts Diagram

Garden Tractor

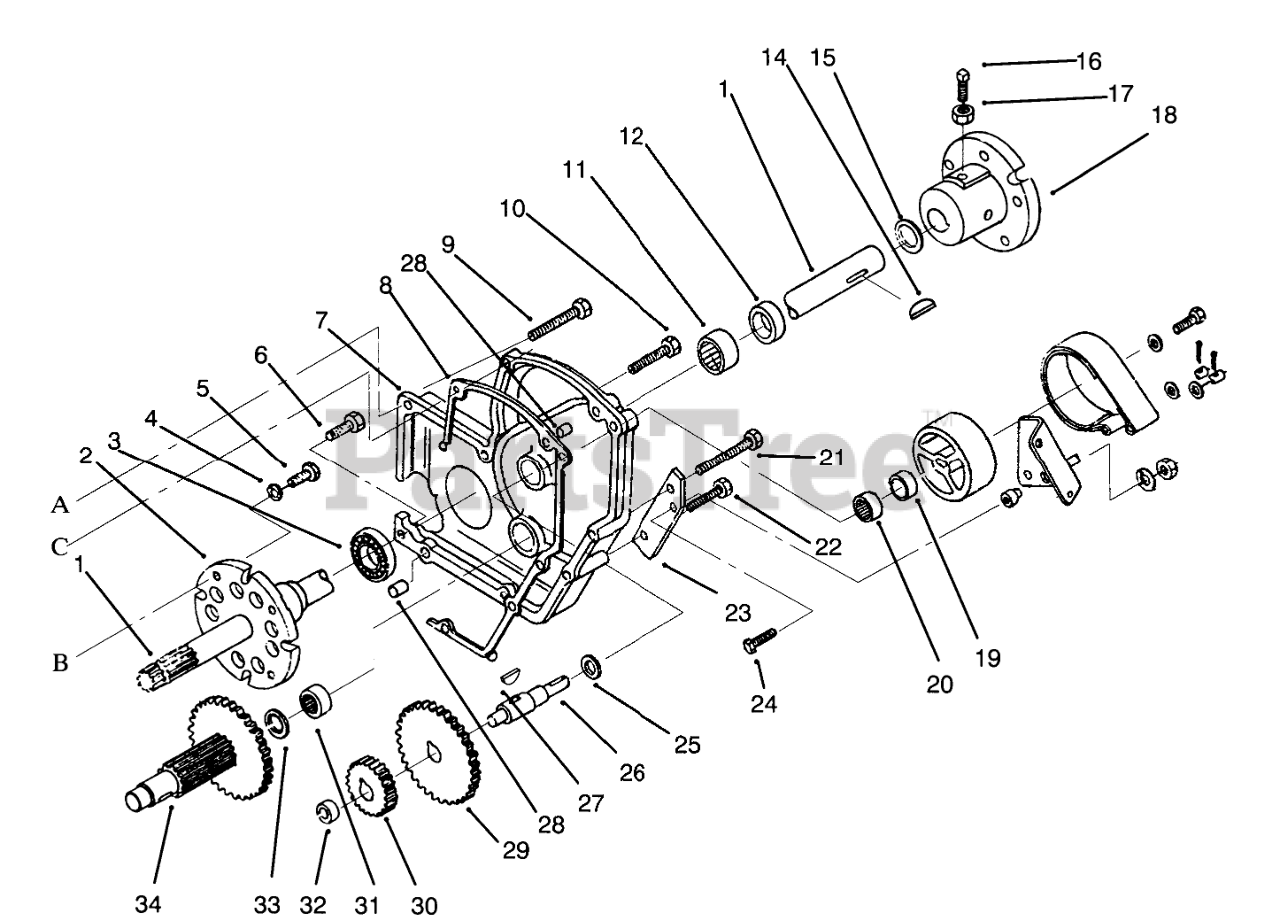

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 108361

AXLE-REAR LH

$

$

Not available

2

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 1 left!

0

3

Toro 111199

BEARING-BALL

$125.99

$

In Stock, only 2 left!

0

4

Toro 107374

WASHER

$0.99

$

In Stock, only 4 left!

0

5

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, Qty 20+

0

6

Toro 9080356

Bolt

$

$

Currently unavailable

7

Toro 111201

CASE TRANS LH

$

$

Not available

8

Toro 108312

GASKET-TRANSMISSION

$25.99

$

In Stock, only 2 left!

0

9

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

10

Toro 9080406

Bolt

$

$

Currently unavailable

11

Toro 9416

BEARING

$85.99

$

Usually ships in 3-6 days

0

12

Toro 6449

SEAL-OIL

$25.99

$

In Stock, Qty 14

0

14

Toro 937108

KEY-WOODRUFF

$5.99

$

In Stock, Qty 10

0

15

Toro 106826

WASHER-THRUST

$14.99

$

In Stock, only 3 left!

0

16

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 20+

0

17

Toro 106826

WASHER-THRUST

$14.99

$

In Stock, only 3 left!

0

18

Toro 105763

Hub Rear
(Superseded to 105763-03)

$200.99

$

In Stock, only 2 left!

0

19

Toro 108357

Seal
(Superseded to 253-44)

$29.99

$

In Stock, only 1 left!

0

20

Toro 1538

NEEDLE BEARING

$48.99

$

Usually ships in 3-6 days

0

21

Toro 323-26

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

22

Toro 323-25

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

23

Toro 109367

BRACKET-BRAKEB

$

$

Not available

24

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 7956

Race Thrust
(Superseded to 702982)

$10.99

$

In Stock, Qty 5

0

26

Toro 109370

SHAFT GEAR

$

$

Not available

27

Toro 937099

Key
(Superseded to 937024)

$

$

Not available

28

Toro 108363

PIN-LOCATING

$

$

Not available

29

Toro 109752

GEAR 46 TEETH

$

$

Not available

30

Toro 109742

GEAR 20 TEETH

$

$

Not available

31

Toro 1532

BEARING-NEEDLE

$62.99

$

In Stock, only 3 left!

0

32

Toro 1518

BEARING-NEEDLE

$32.99

$

Usually ships in 3-6 days

0

33

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

34

Toro 109703

ASSY GEAR

$

$

Not available
