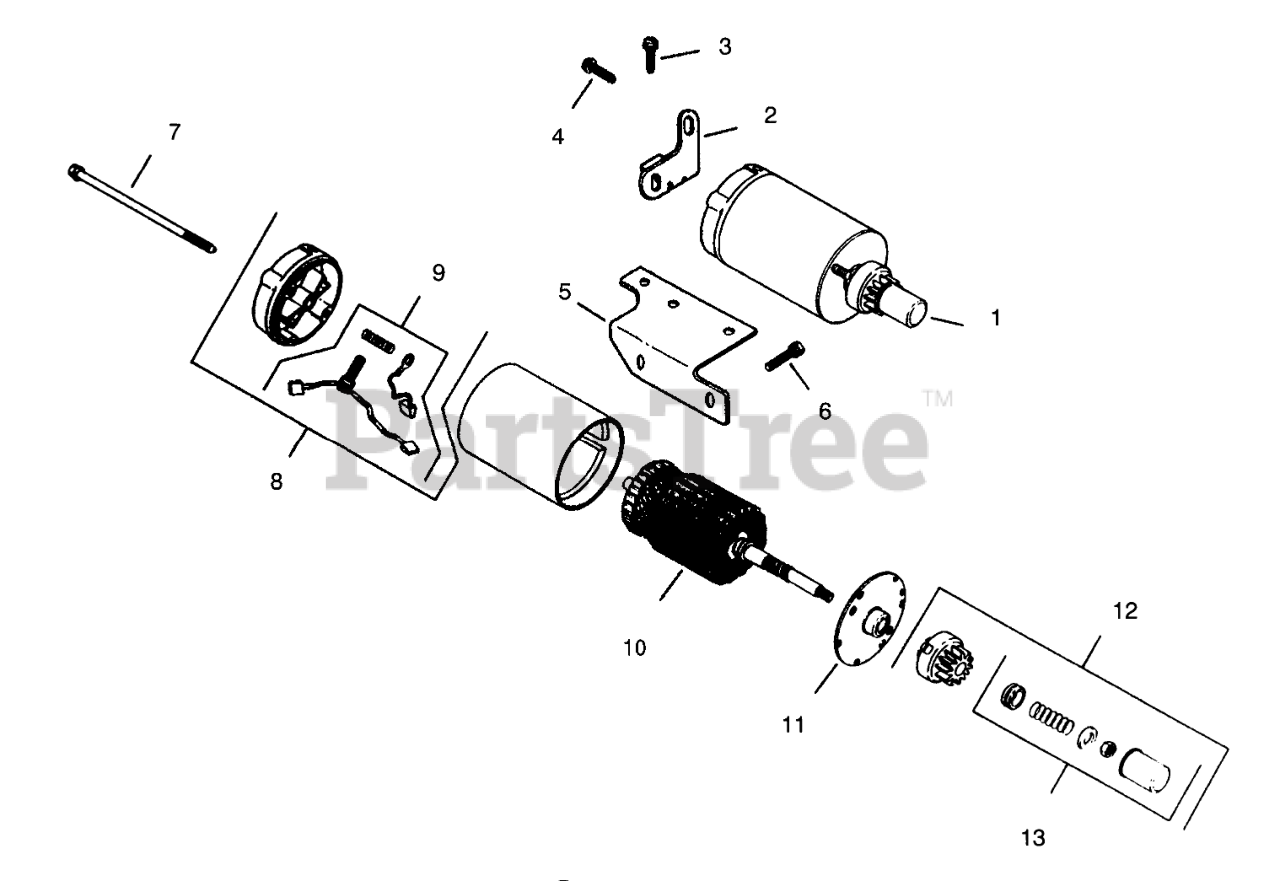

73401 (314-H) - Toro Garden Tractor (SN: 059000001 - 059000260) (1995) STARTER Parts Diagram

Garden Tractor

STARTER Parts Diagram

  • Title
1

Toro 92-7260

Starter Assembly (Includes Items 9 thru 15)

$

$

Not available

2

Toro KH10244

Brace-Starter Tail

$

$

Not available

3

Toro KH10607

Screw-Hex. Hd.

$

$

Not available

4

Toro KH10610

Screw

$

$

Not available

5

Toro KH10304

Bracket-Starter

$

$

Not available

6

Toro KH10549

Screw

$

$

Not available

7

$

$

Not available

8

Toro KH10210

End Cap Ass-Y (Incl. Ref.#9)

$

$

Not available

9

Toro KH10515

Brush Kit

$

$

Not available

10

Toro KH10247

Armature

$

$

Not available

11

Toro KH10209

Cap-Drive End

$

$

Not available

12

Toro KH10323

Kit-Drive (Incl. Ref. #15)

$

$

Not available

13

Toro KH10324

Drive Parts Kit

$

$

Not available

Toro KH10135

Caution Tag

Note: Not illustrated

$

$

Not available

Toro KH10304

Bracket-Starter

Note: Not illustrated

$

$

Not available

Toro KH10549

Screw

Note: Not illustrated

$

$

Not available
