73401 (314-H) - Toro Garden Tractor (SN: 059000001 - 059000260) (1995) HOOD STAND AND SUPPORTS Parts Diagram

Garden Tractor

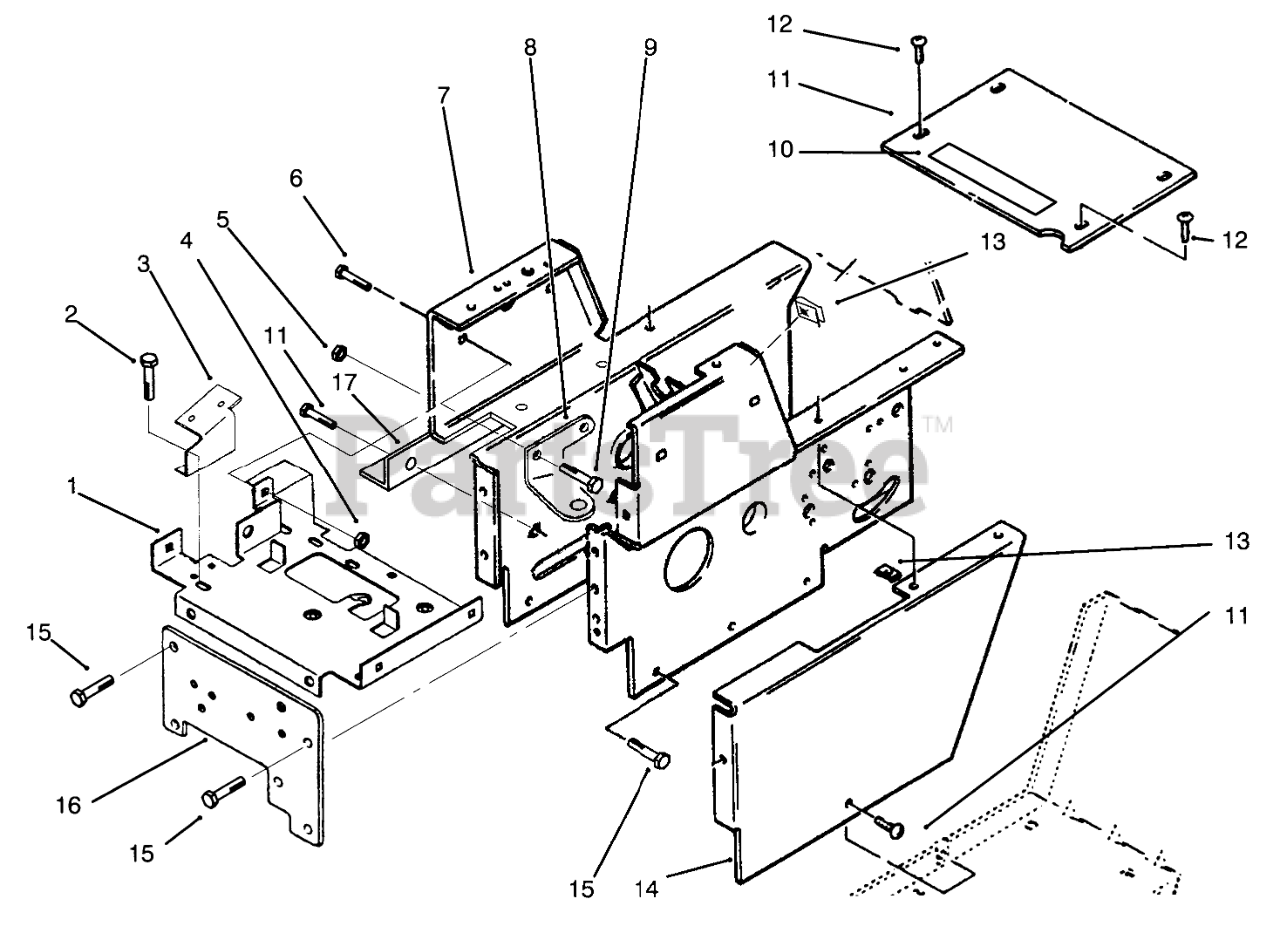

HOOD STAND AND SUPPORTS Parts Diagram

  • Title

1

Toro 78-3010

SUPORT-BATERYB
(Superseded to 78-3010-03)

$

$

Not available

2

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

3

Toro 115411

BRACKET-SWITCH

$

$

Not available

4

Toro 9151126

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 117371

BOLT CARR. 5/16X1/2 BK

$

$

Not available

7

Toro 92-1525

Hoodstand
(Superseded to 95-7676-03)

$

$

Not available

8

Toro 78-1540

Bracket-Control
(Superseded to 78-1540-03)

$

$

Not available

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 92-8946

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

11

Toro 92-7294

Plate-Shift Cover (Incl. Ref.#10)

$

$

Not available

12

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

13

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

14

Toro 113935

Cover-Side LH
(Superseded to 113935-01)

$81.99

$

Usually ships in 3-6 days

0

15

Toro 926694

SCREW

$

$

Not available

16

Toro 78-3020

Front Plate
(Superseded to 78-3020-03)

$

$

Not available

17

Toro 106209

ANGL-BLT GURDB

$20.99

$

Usually ships in 3-6 days

0
