73401 (314-H) - Toro Garden Tractor (SN: 059000001 - 059000260) (1995) FUEL PUMP Parts Diagram

Garden Tractor

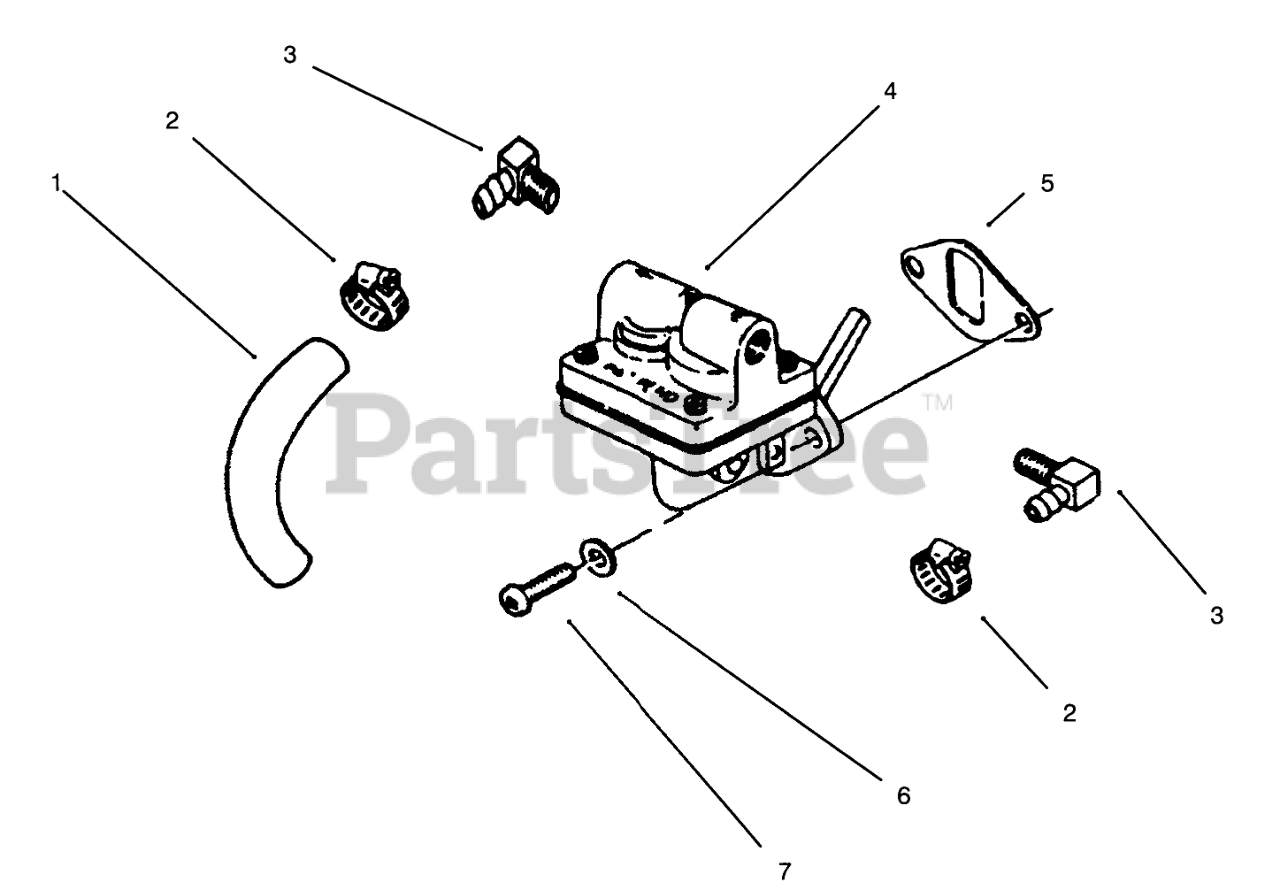

FUEL PUMP Parts Diagram

  • Title
1

Toro KH10130

Line-Fuel

$

$

Not available

2

Toro KH10586

Clamp

$

$

Not available

3

Toro KH10123

Connector 90

$

$

Not available

4

Toro KH10319

Pump Assy-Fuel (Incl. Ref.#5 &7 )

$

$

Not available

5

Toro KH10095

Gasket

$

$

Not available

6

Toro KH10569

Washer

$

$

Not available

7

Toro KH10552

Screw-Pozidrive

$

$

Not available
