73401 (314-H) - Toro Garden Tractor (SN: 059000001 - 059000260) (1995) CONTROL PANEL Parts Diagram

Garden Tractor

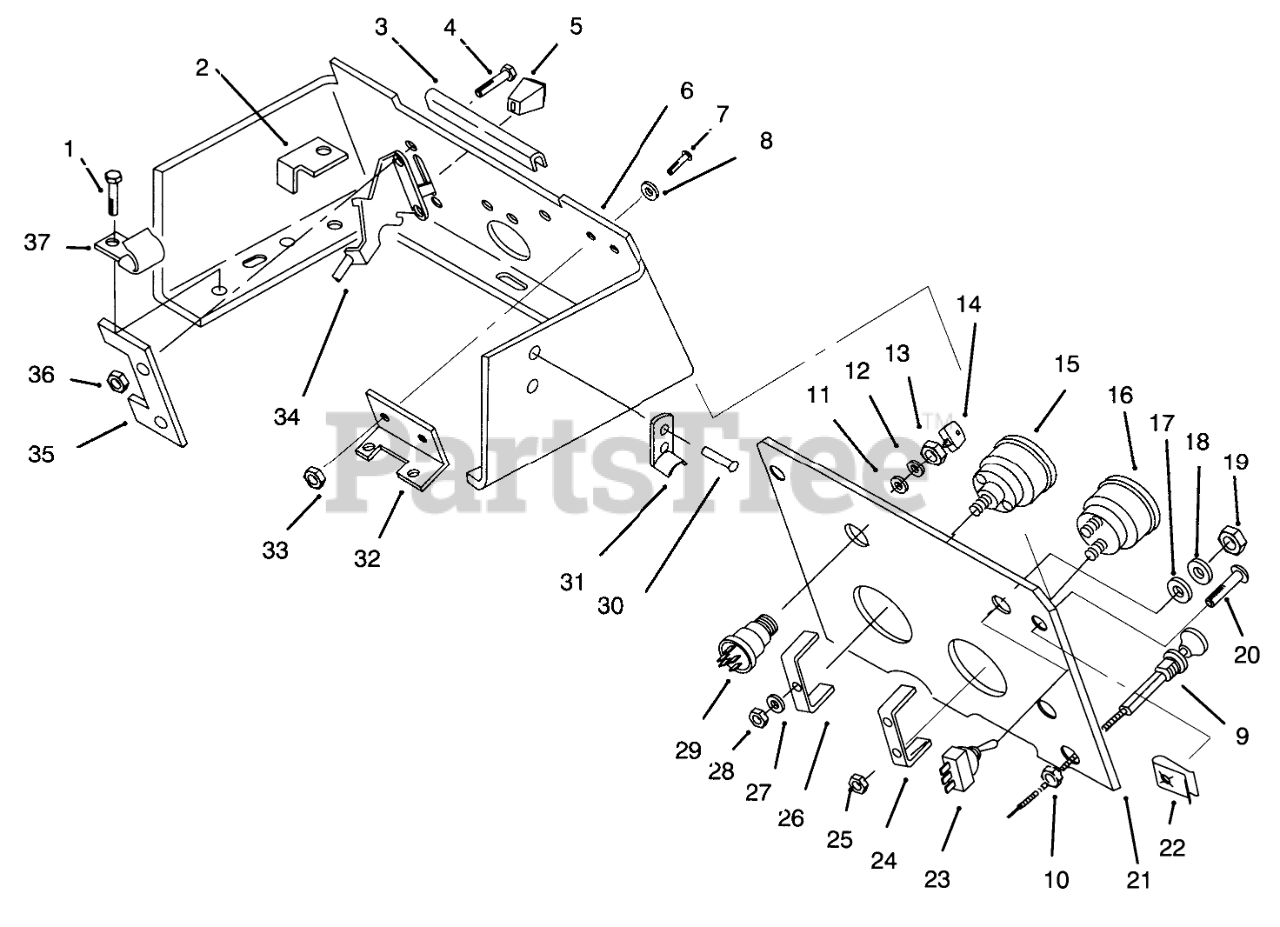

CONTROL PANEL Parts Diagram

  • Title
1

Toro 926694

SCREW

$

$

Not available

2

Toro 112415

STOP-PTO

$21.99

$

In Stock, only 1 left!

0

3

Toro 111757

EDGING-CONSOLE

$11.99

$

In Stock, only 2 left!

0

4

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

5

$5.99

$

In Stock, only 2 left!

0

6

Toro 78-5610

CONSOLE B

$122.99

$

In Stock, only 2 left!

0

7

Toro 910762

SCREW

$

$

Not available

8

Toro 920150

Washer-Lock
(Superseded to 3254-9)

$0.99

$

Usually ships in 3-6 days

0

9

Toro 112214

CONTROL CHOKE

$63.99

$

In Stock, Qty 5

0

10

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 4 left!

0

11

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

12

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

13

$7.49

$

In Stock, only 1 left!

0

14

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 20+

0

15

Toro 78-0020

Meter-Hour (Incl. Ref.# 27-28)
(Superseded to 66-2950)

$

$

Not available

16

Toro 79-0060

Meter-Volt (Incl. Ref.# 24-25)

$168.99

$

Usually ships in 3-6 days

0

17

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

18

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

19

$

$

Not available

20

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

21

Toro 78-5620

Plate-Hood Stand
(Superseded to 78-5620-03)

$

$

Not available

22

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

23

Toro 102138

Switch-Light (Incl. Ref. #17-19)

$40.99

$

Usually ships in 3-6 days

0

24

Toro 78-0080

CLAMP-MOUNTING

$

$

Not available

25

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

26

Toro 78-3320

CLAMP-HOUR METER

$11.99

$

Usually ships in 3-6 days

0

27

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

28

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

29

Toro 116338

Switch-Ignition (Incl. Ref.#11-13)

$78.99

$

In Stock, only 2 left!

0

30

Toro 117431

POPRIVET 1/8X 1/8 BK

$

$

Not available

31

Toro 117343

KEEPER-LATCH

$4.99

$

In Stock, only 2 left!

0

32

Toro 112506

BRACKET

$9.49

$

Usually ships in 3-6 days

0

33

Toro 915960

Nut
(Superseded to 3217-29)

$0.99

$

Usually ships in 3-6 days

0

34

Toro 115854

CONTROL-THROTTLE

$84.99

$

In Stock, only 3 left!

0

35

Toro 120590

Washer
(Superseded to 120590-03)

$

$

Not available

36

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

37

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0
