73401 (314-H) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) BATTERY Parts Diagram

Garden Tractor

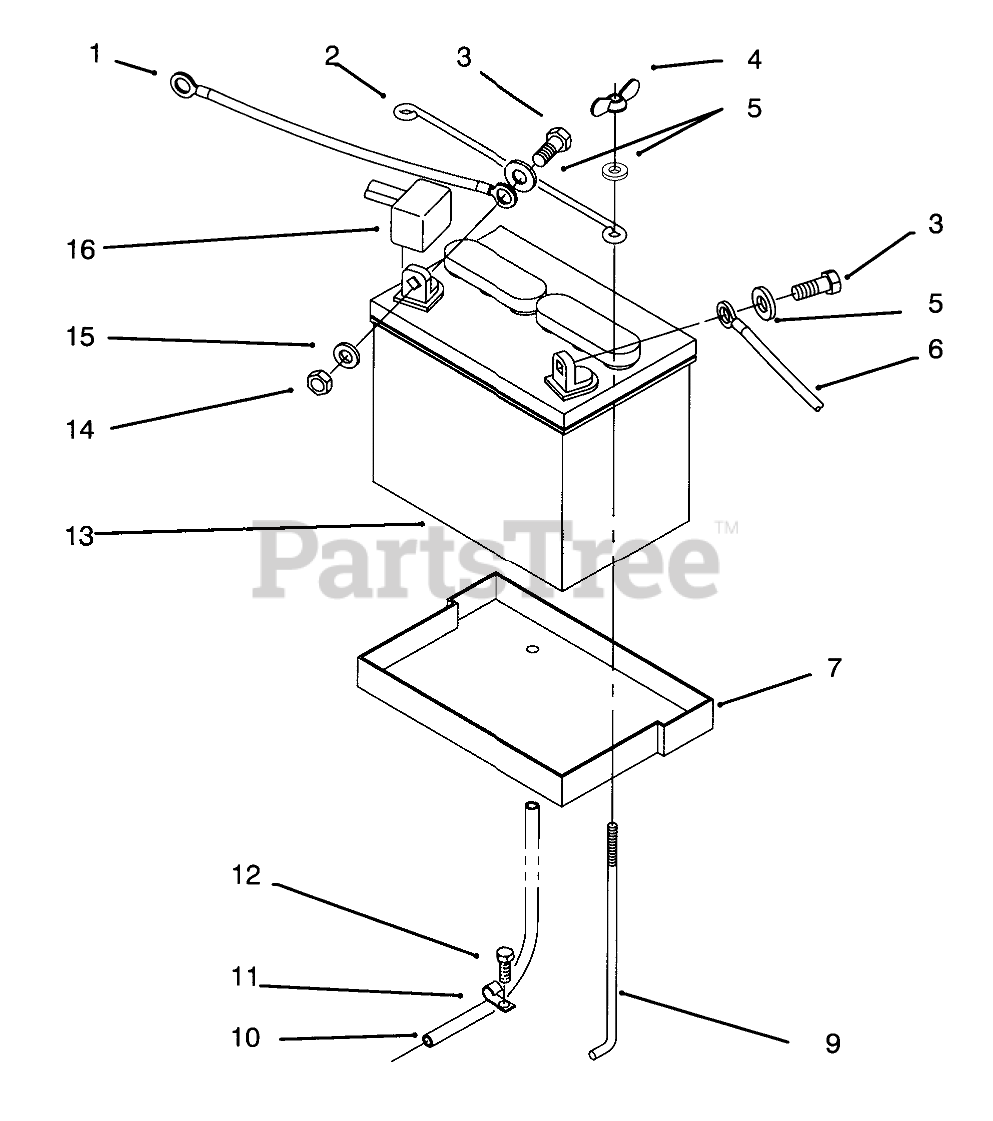

BATTERY Parts Diagram

  • Title

1

Toro 111074

CABLE-BLACK

$27.99

$

Usually ships in 3-6 days

0

2

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 3 left!

0

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

5

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 111069

ASSY WIRE

$

$

Not available

7

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 2 left!

0

9

Toro 113969

HOOK-BATTERY RETAIN

$16.99

$

In Stock, only 2 left!

0

10

Toro 114720

TUBE-21" BATTERY DRAIN

$7.99

$

Usually ships in 3-6 days

0

11

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

12

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

13

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0
