73401 (314-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) PISTON AND RINGS Parts Diagram

Garden Tractor

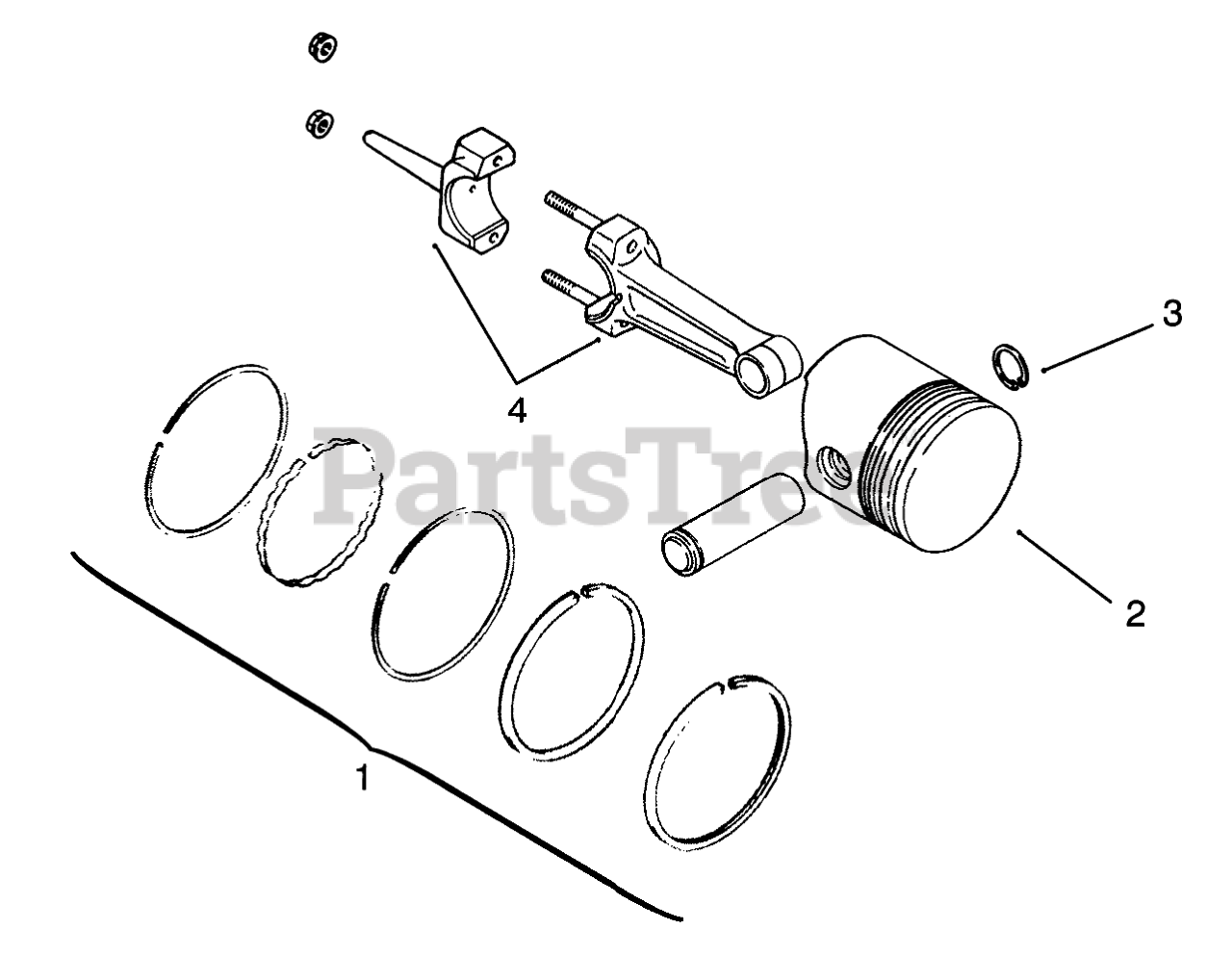

PISTON AND RINGS Parts Diagram

  • Title
1

Toro 92-7273

Set-Ring, Std. &.003

$

$

Not available

Toro 92-7274

Set-Ring.010

$

$

Not available

Toro 92-7275

Set-Ring.020

$

$

Not available

Toro 92-7276

Set-Ring.030

$

$

Not available

2

Toro 92-7268

Piston w/Ring Set Std.

$

$

Not available

Toro 92-7269

Piston w/Ring Set .003

$

$

Not available

Toro 92-7270

Piston w/Ring Set .010

$

$

Not available

Toro 92-7271

Piston w/Ring Set .020

$

$

Not available

Toro 92-7272

Piston w/Ring Set .030

$

$

Not available

3

Toro KH10262

Piston Pin Retainer

$

$

Not available

4

Toro 92-7267

Rod-Connecting Std.

$

$

Not available

Toro KH10695

Washer

$

$

Not available
