734001 - Ariens Rear Drive Kit Rear PTO Drive Parts Diagram

Rear Drive Kit

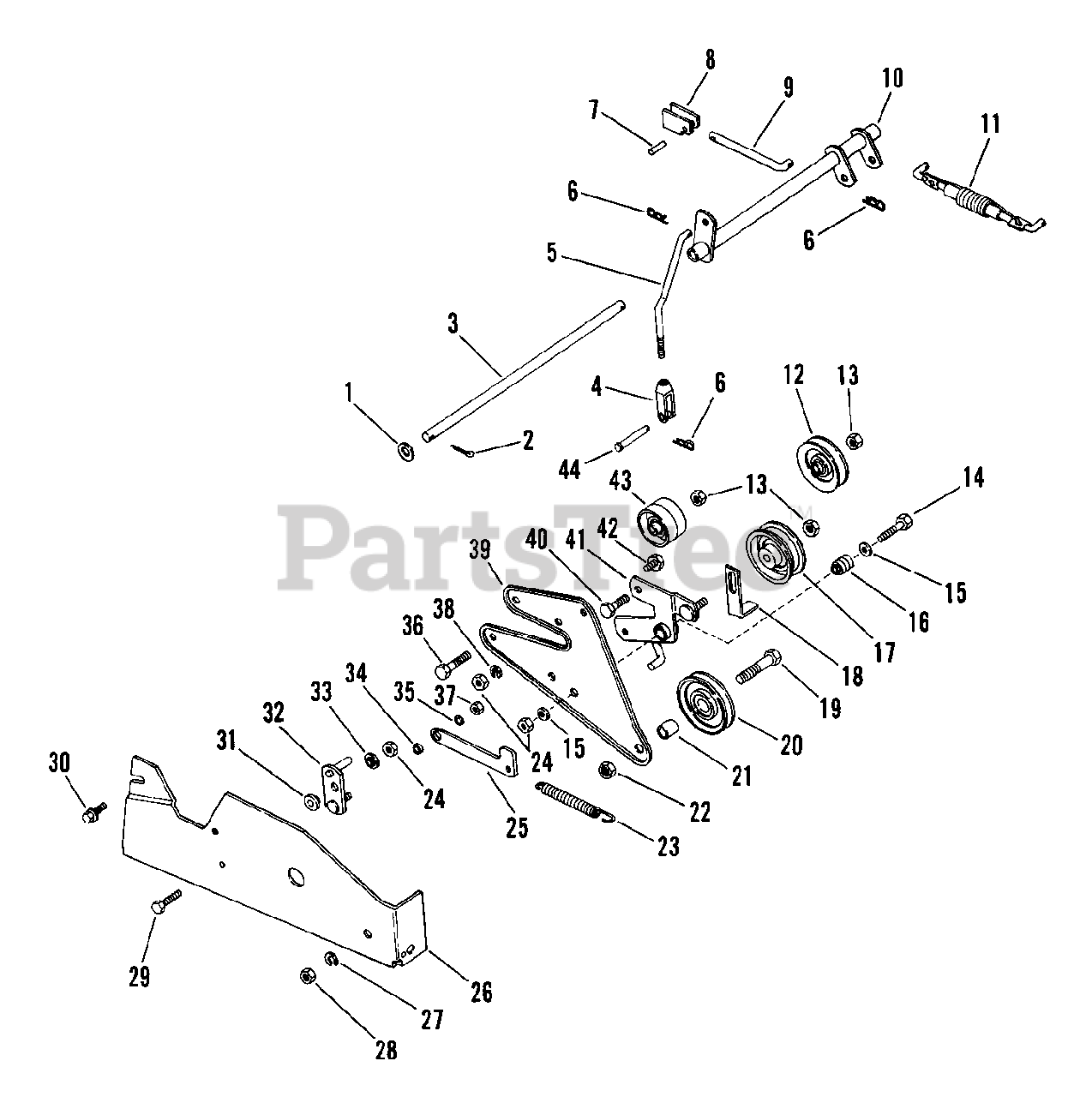

Rear PTO Drive Parts Diagram

  • Title

1

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

3

Ariens 03407800

PIVOT SHAFT

$

$

Not available

4

Ariens 03040200

YOKE
(Superseded to 07014700)

$14.99

$

Usually ships in 4-12 days

0

5

Ariens 03406100

ROD

$

$

Not available

6

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 18

0

8

Ariens 03429700

LATCH

$

$

Not available

9

Ariens 03429600

ROD

$

$

Not available

10

Ariens 03443000

CLUTCH PIVOT

$

$

Not available

11

Ariens 53402700

SPRING ASSEMBLY

$

$

Not available

12

Ariens 07310900

IDLER-V 3.06 X .38

$23.99

$

In Stock, only 1 left!

0

13

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05912800

BLT-HEX .31-18X1.75 GR5
(Superseded to 05957400)

$2.99

$

In Stock, Qty 8

0

15

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

16

Ariens 03432700

PIVOT

$

$

Not available

17

Ariens 07311100

IDLER-FLAT 2.75 X .38 DAYCO

$39.99

$

In Stock, only 3 left!

0

18

Ariens 03411000

BELT FINGER

$

$

Not available

19

Ariens 05916400

BLT-HEX .50-13X2.50 PL GR2 FTH

$

$

Not available

20

Ariens 07310400

IDLER-V 3.50 X .50 CAPITOL

$

$

Not available

21

Ariens 03406400

HUB, .50 X .75 X .84

$

$

Not available

22

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

23

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

24

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 03429500

LINK

$

$

Not available

26

Ariens 53402600

BELT GUARD & BRAKE

$

$

Not available

27

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

28

Ariens 06501700

NUT-JAM .50-13 PL
(Superseded to 06529300)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

$2.49

$

In Stock, Qty 11

0

30

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

$

$

Not available

31

Ariens 03502700

SPACER -FLANGED .325X.498X.318

$3.99

$

Usually ships in 4-12 days

0

32

Ariens 03429900

BRAKE ARM

$

$

Not available

33

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

34

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

35

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 05916100

BLT-HEX .38-16X1.75 PL GR5
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 03406600

DRIVE MOUNT

$

$

Not available

40

Ariens 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 03406500

CLUTCH PIVOT WELDMENT

$

$

Not available

42

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 07310800

IDLER-FLAT 2.25 X .38

$34.99

$

In Stock, only 1 left!

0

44

Ariens 03130200

CLEVIS PIN
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0
