73400 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

Garden Tractor

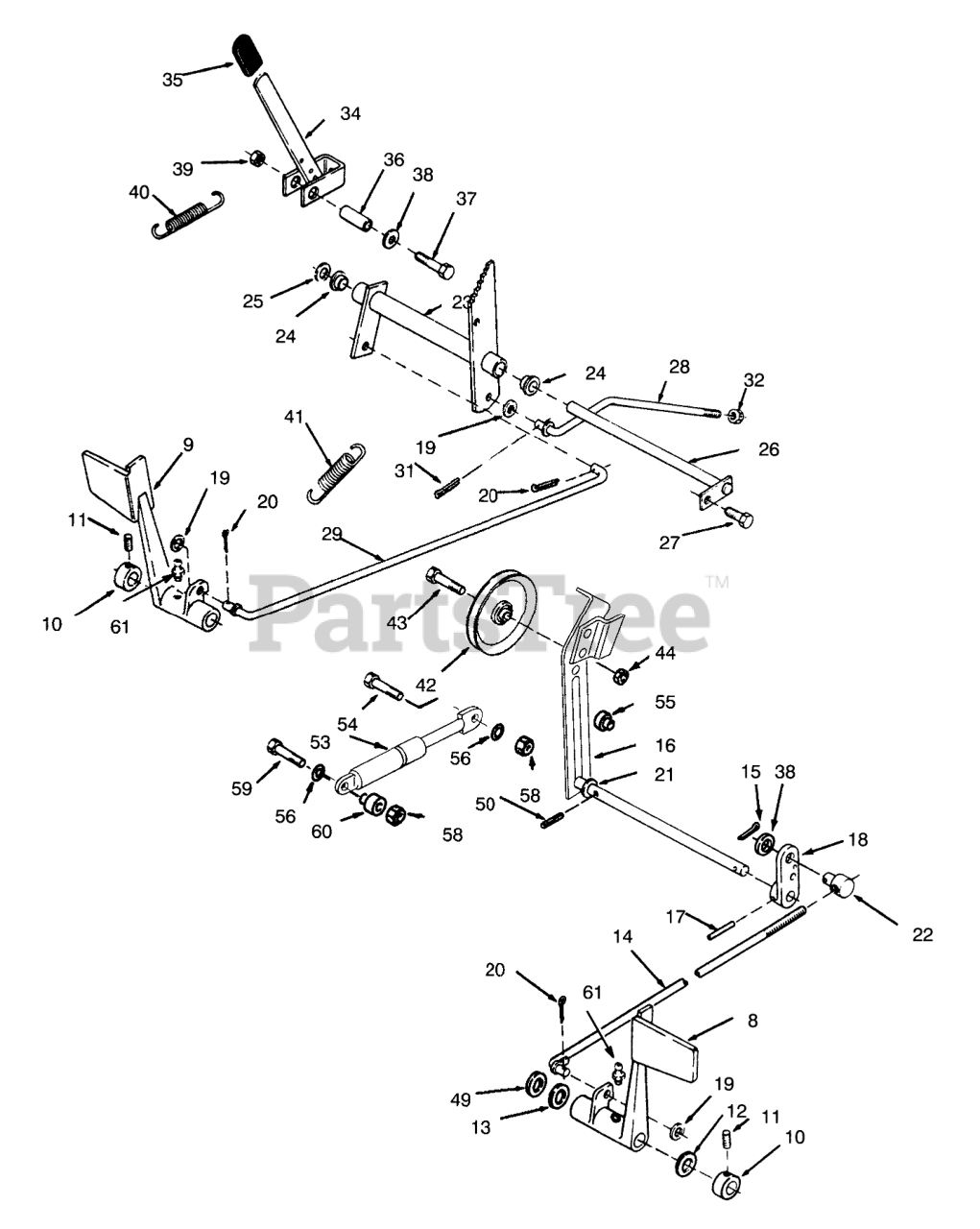

CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

  • Title

8

Toro 114814

PEDAL-CLUTCH R

$

$

Not available

9

Toro 114813

Pedal-Brake
(Superseded to 94-3706-01)

$190.99

$

Usually ships in 3-6 days

0

10

Toro 111383

COLLAR

$6.99

$

In Stock, only 1 left!

0

11

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

12

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, Qty 5

0

13

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

14

Toro 103347

ROD AND GUIDE ASM

$58.99

$

Usually ships in 3-6 days

0

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 78-2970

Arm-Clutch Idler
(Superseded to 98-1746)

$117.99

$

Usually ships in 3-6 days

0

17

Toro 933190

PIN-SPIROL

$

$

Not available

18

Toro 105896

Arm-Clutch Rod
(Superseded to 105896-03)

$64.99

$

In Stock, only 1 left!

0

19

Toro 920248

WASHER-NYLON

$1.49

$

Usually ships in 3-6 days

0

20

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

21

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

22

Toro 101161

TRUNNION

$

$

Not available

23

Toro 103543

Bellcrank Assy
(Superseded to 103543-03)

$

$

Not available

24

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

25

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 106417

ROD ASM

$

$

Not available

27

Toro 926694

SCREW

$

$

Not available

28

Toro 105900

ROD-REAR BRAKE

$60.99

$

Usually ships in 3-6 days

0

29

Toro 105886

ROD

$

$

Not available

31

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

32

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

34

Toro 106451

ASSY-BRAKE LEVER WAB
(Superseded to 106451-03)

$

$

Not available

35

Toro 6820

GRIP

$2.99

$

In Stock, only 1 left!

0

36

Toro 102025

SPACER

$

$

Not available

37

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

40

Toro 107677

SPRING-BRAKE

$16.99

$

In Stock, Qty 10

0

41

Toro 103628

SPRING-EXTENSION

$12.99

$

In Stock, only 1 left!

0

42

Toro 7451

PULLEY-IDLER
(Superseded to 95-7668)

$25.99

$

In Stock, only 2 left!

0

43

Toro 106193

BOLT-SPECIAL HEX

$10.99

$

In Stock, Qty 7

0

44

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

49

Toro 920225

Washer
(Superseded to 9202254)

$3.99

$

In Stock, only 2 left!

0

50

Toro 933267

PIN-SPIROL

$1.49

$

In Stock, Qty 11

0

53

Toro 78-3240

ASS'Y-GAS SPRING

$196.99

$

Usually ships in 3-6 days

0

54

Toro 321-31

Capscrew
(Superseded to 321-5)

$0.99

$

In Stock, Qty 20+

0

55

Toro 78-3260

SPACER-SHOULDER-.200

$42.99

$

Usually ships in 3-6 days

0

56

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

58

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

59

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

60

Toro 78-3250

SPACER-SHOULDER-.400

$26.99

$

Usually ships in 3-6 days

0

61

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0
