73400 (314-8) - Toro Garden Tractor (SN: 059000001 - 059999999) (1995) HOOD STAND AND SUPPORTS Parts Diagram

Garden Tractor

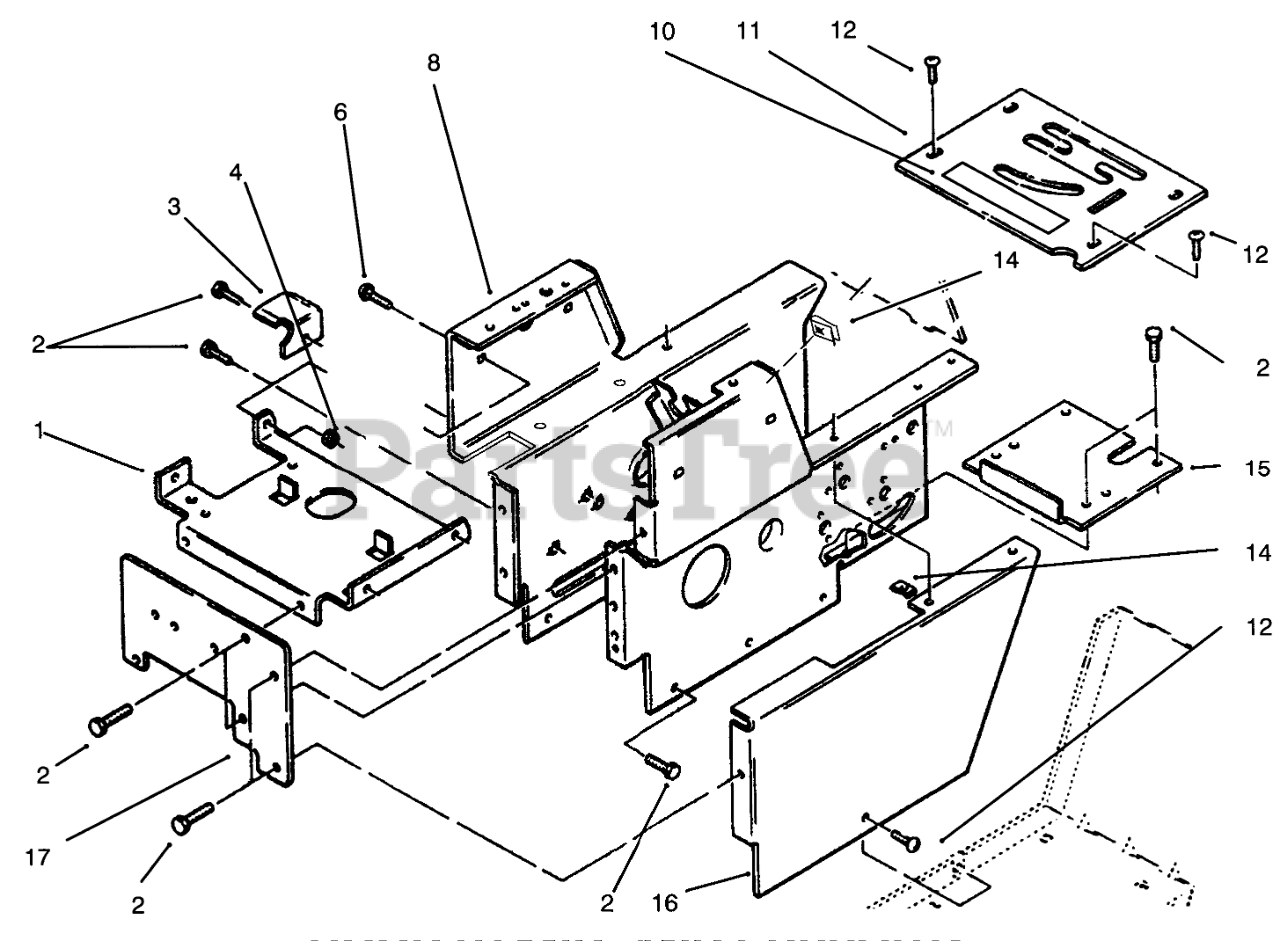

HOOD STAND AND SUPPORTS Parts Diagram

  • Title

1

Toro 78-3010

SUPORT-BATERYB
(Superseded to 78-3010-03)

$

$

Not available

2

Toro 926694

SCREW

$

$

Not available

3

Toro 88-2170

Bracket-Belt
(Superseded to 88-2170-03)

$7.49

$

Usually ships in 3-6 days

0

4

Toro 9151126

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

6

Toro 117371

BOLT CARR. 5/16X1/2 BK

$

$

Not available

8

Toro 92-1525

Hoodstand
(Superseded to 95-7676-03)

$

$

Not available

10

Toro 92-8946

DECAL-DANGER

$6.49

$

Usually ships in 3-6 days

0

11

Toro 92-6529

Plate-Shift Cover (Incl. Ref.#10)

$32.99

$

In Stock, only 1 left!

0

12

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

14

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 106250

Cover-Dust
(Superseded to 106250-03)

$18.99

$

Usually ships in 3-6 days

0

16

Toro 113935

Cover-Side LH
(Superseded to 113935-01)

$69.99

$

Usually ships in 3-6 days

0

17

Toro 78-3020

Front Plate
(Superseded to 78-3020-03)

$

$

Not available
