73400 (314-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) OIL PAN AND DIPSTICK Parts Diagram

Garden Tractor

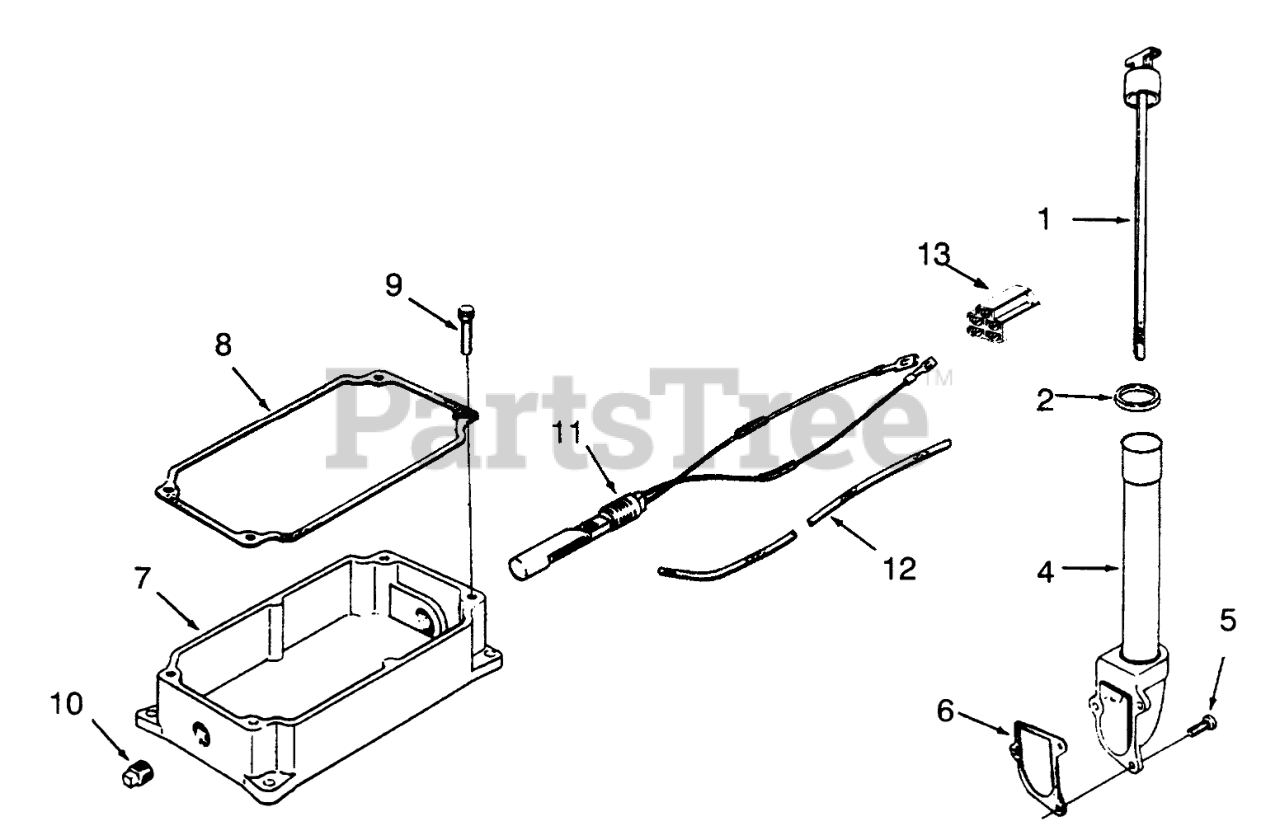

OIL PAN AND DIPSTICK Parts Diagram

  • Title
1

Toro KH10270

Dipstick

$

$

Not available

2

Toro KH10201

0-Ring

$

$

Not available

4

Toro KH10266

Adapter-Oil Fill

$

$

Not available

5

Toro KH10541

Screw

$

$

Not available

6

Toro KH10088

Gasket

$

$

Not available

7

Toro KH10248

Oil Pan

$

$

Not available

8

Toro KH10059

Gasket

$

$

Not available

9

Toro KH10550

Screw

$

$

Not available

10

$

$

Not available

11

Toro 92-7278

Kit-Float Switch (Incl. Ref.#12 & Decal)

$

$

Not available

12

Toro KH10134

Sleeve

$

$

Not available

13

Toro KH10345

Connector

$

$

Not available

Toro KH10119

Decal-Float Switch

Note: Not illustrated

$

$

Not available
