73400 (314-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) IGNITION SYSTEM Parts Diagram

Garden Tractor

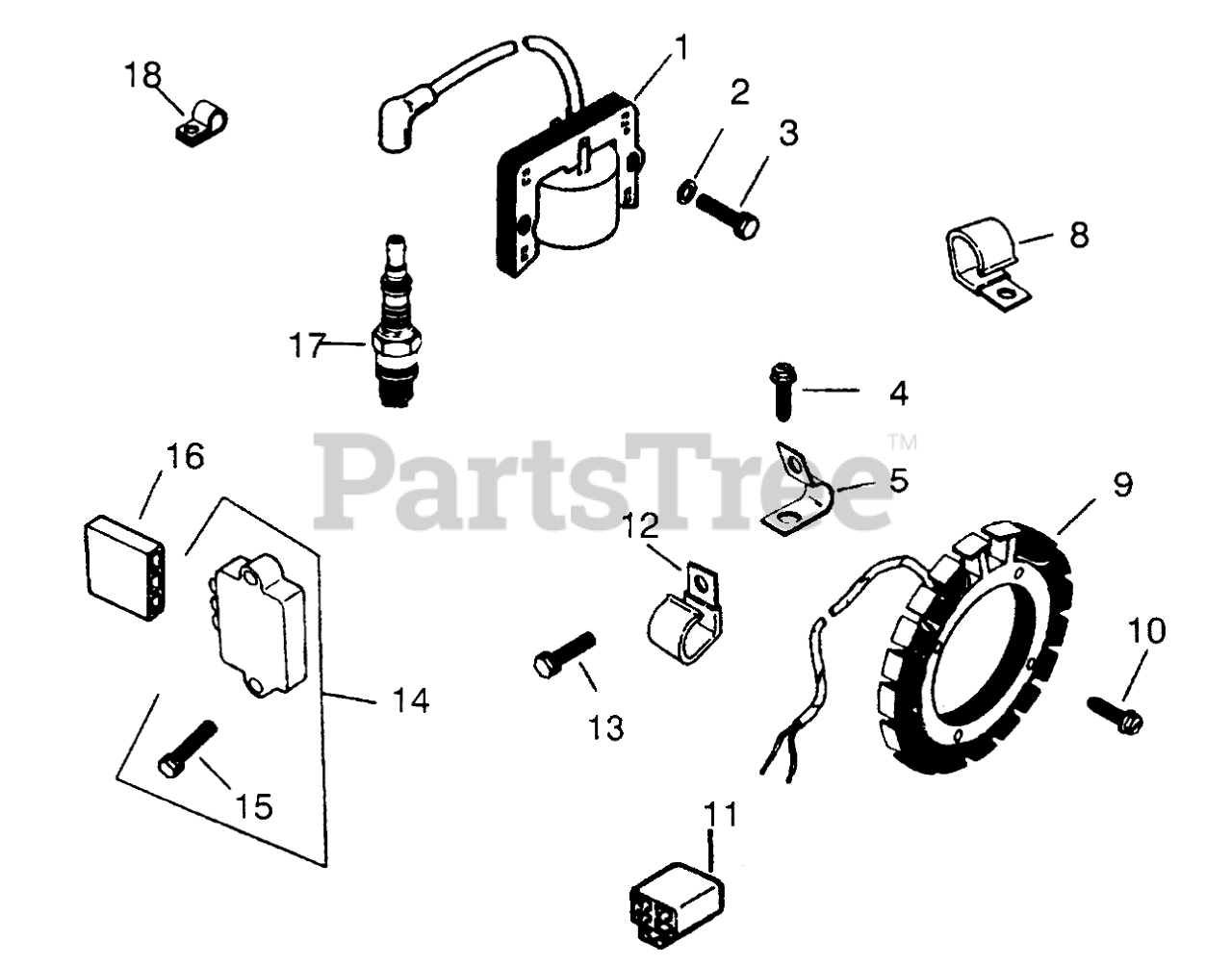

IGNITION SYSTEM Parts Diagram

  • Title
1

Toro KH10321

Module-Ignition

$

$

Not available

2

Toro KH10570

Washer

$

$

Not available

3

Toro KH10610

Screw

$

$

Not available

4

Toro KH10606

Screw-Hex. Hd.

$

$

Not available

5

$

$

Not available

8

$

$

Not available

9

Toro KH10091

Kit-Stator 15 am (Incl. Ref.#8)

$

$

Not available

10

Toro KH10605

Screw

$

$

Not available

11

Toro KH10345

Connector

$

$

Not available

12

$

$

Not available

13

Toro KH10545

Screw

$

$

Not available

14

Toro KH10673

Regulator-Rectifier

$

$

Not available

15

Toro 92-7266

Screw

$

$

Not available

16

Toro KH10082

Connector

$

$

Not available

17

Toro 92-7265

Plug-Spark

$

$

Not available

18

Toro KH10010

Clip-Hi-Tension

$

$

Not available

Toro KH10313

Lead-Violet, Regulator Rectifier to Connector

Note: Not illustrated

$

$

Not available

Toro KH10315

Lead-Wire, Module to Connector

Note: Not illustrated

$

$

Not available
