73380 (312-8) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) PISTON AND RINGS Parts Diagram

Garden Tractor

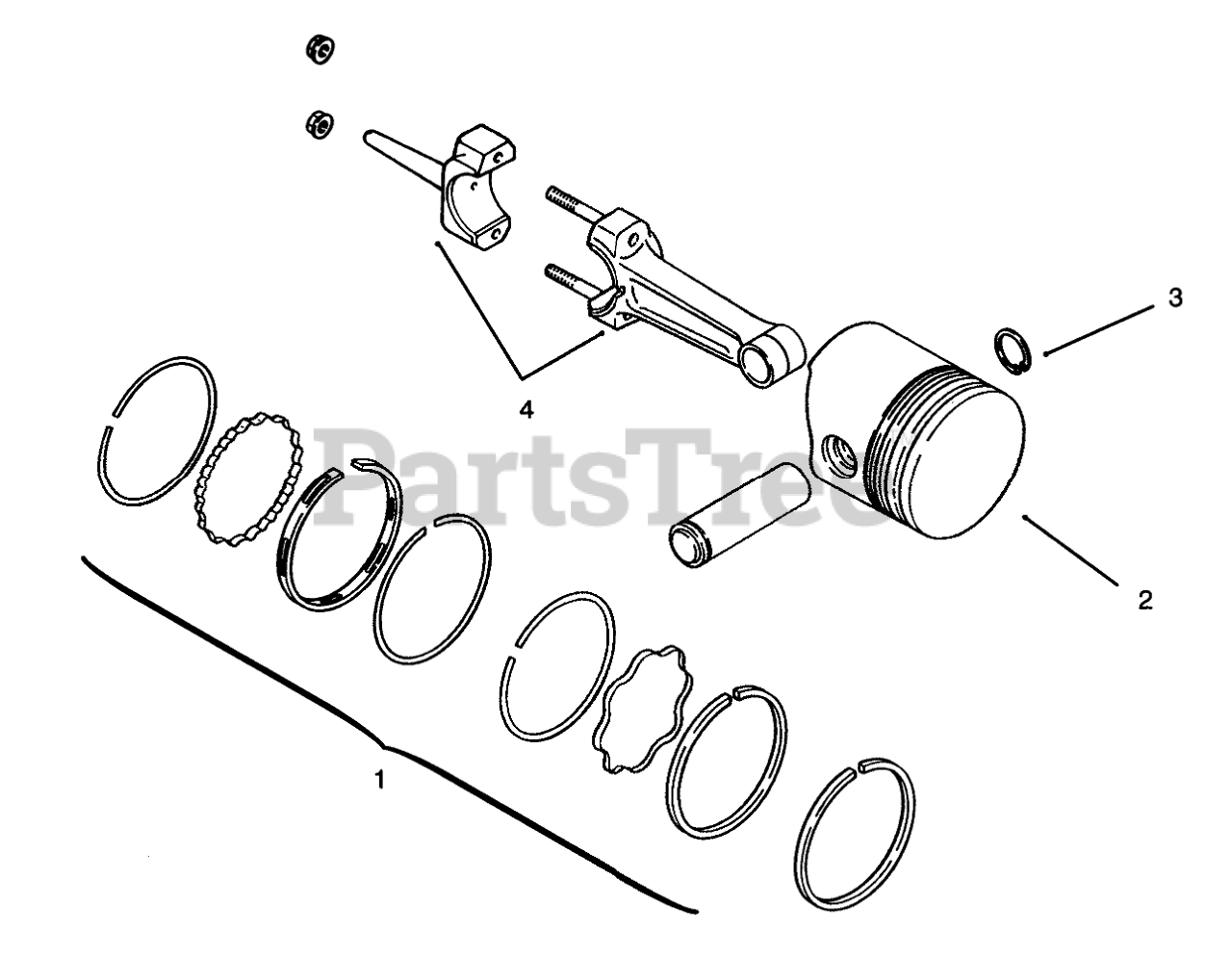

PISTON AND RINGS Parts Diagram

  • Title
1

Toro KH10703

Set-Ring, Std. &.003

$

$

Not available

Toro KH10704

Set-Ring.010

Note: Not illustrated

$

$

Not available

Toro KH10705

Set-Ring.020

Note: Not illustrated

$

$

Not available

Toro KH10706

Set-Ring.030

Note: Not illustrated

$

$

Currently unavailable

2

Toro KH10711

Piston w/Ring Set Std.

$

$

Not available

Toro KH10712

Piston w/Ring Set .003

Note: Not illustrated

$

$

Not available

Toro KH10713

Piston w/Ring Set .010

Note: Not illustrated

$

$

Not available

Toro KH10714

Piston w/Ring Set .020

Note: Not illustrated

$

$

Not available

Toro KH10715

Piston w/Ring Set .030

Note: Not illustrated

$

$

Not available

3

Toro KH10262

Piston Pin Retainer

$

$

Not available

4

Toro KH10698

Rod-Connecting Std.

$

$

Not available

Toro KH10699

Rod-Connecting.010

Note: Not illustrated

$

$

Not available
