73363 (312-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) HOOD ASSEMBLY Parts Diagram

Garden Tractor

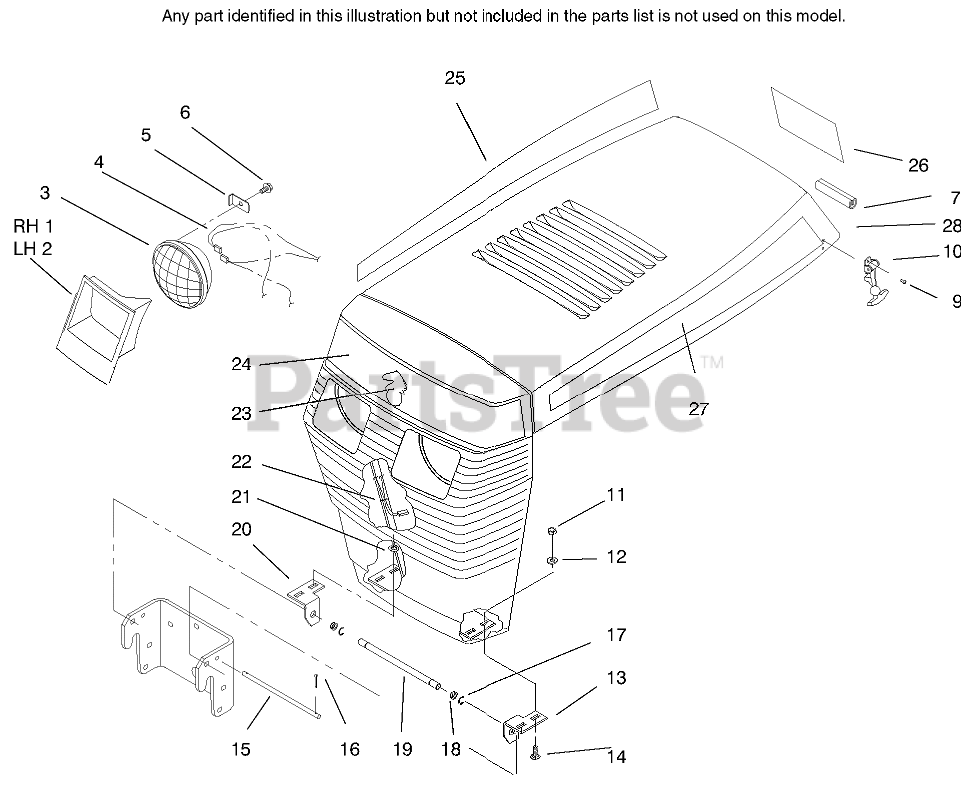

HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 109495

BEZEL-HEADLIGHT, LH

$

$

Not available

2

Toro 109494

BEZEL-HEADLIGHT, RH

$

$

Not available

3

Toro 102881

HEADLAMP

$

$

Not available

4

Toro 108130

LIGHT GROUND WIRE

$

$

Not available

5

Toro 109459

LOCK-HEADLIGHT

$6.99

$

In Stock, Qty 7

0

6

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

7

Toro 111757

EDGING-CONSOLE

$10.99

$

In Stock, only 2 left!

0

9

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

10

Toro 117344

HANDLE ASM

$35.99

$

In Stock, only 1 left!

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 116747

BRACKET-GRILL, LH

$11.99

$

In Stock, Qty 6

0

14

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

15

Toro 101850

ROD-HOOD STOP

$18.99

$

Usually ships in 3-6 days

0

16

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

17

Toro 5979

BUSHING-NYLINER

$3.49

$

In Stock, Qty 10

0

18

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

19

Toro 116745

ROD-GRILL PIVOT

$14.99

$

In Stock, only 2 left!

0

20

Toro 116746

BRACKET-GRILL, R H

$11.99

$

In Stock, Qty 11

0

21

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

23

Toro 94-3736

LOGO - HORSEHEAD

$

$

Not available

24

Toro 92-9826

DECAL-FRONT HOOD, TOP

$29.99

$

Usually ships in 3-6 days

0

25

Toro 92-9825

DECAL - RH HOOD TOP
(Superseded to 106-5848)

$47.99

$

Usually ships in 3-6 days

0

26

Toro 92-9837

DECAL - DANGER
(Superseded to 98-0750)

$24.99

$

Usually ships in 3-6 days

0

27

Toro 92-9824

DECAL - LH HOOD TOP
(Superseded to 106-5849)

$47.99

$

Usually ships in 3-6 days

0

28

Toro 112358

Hood
(Superseded to 88-2782)

$

$

Not available
