73363 (312-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) FUEL TANK ASSEMBLY Parts Diagram

Garden Tractor

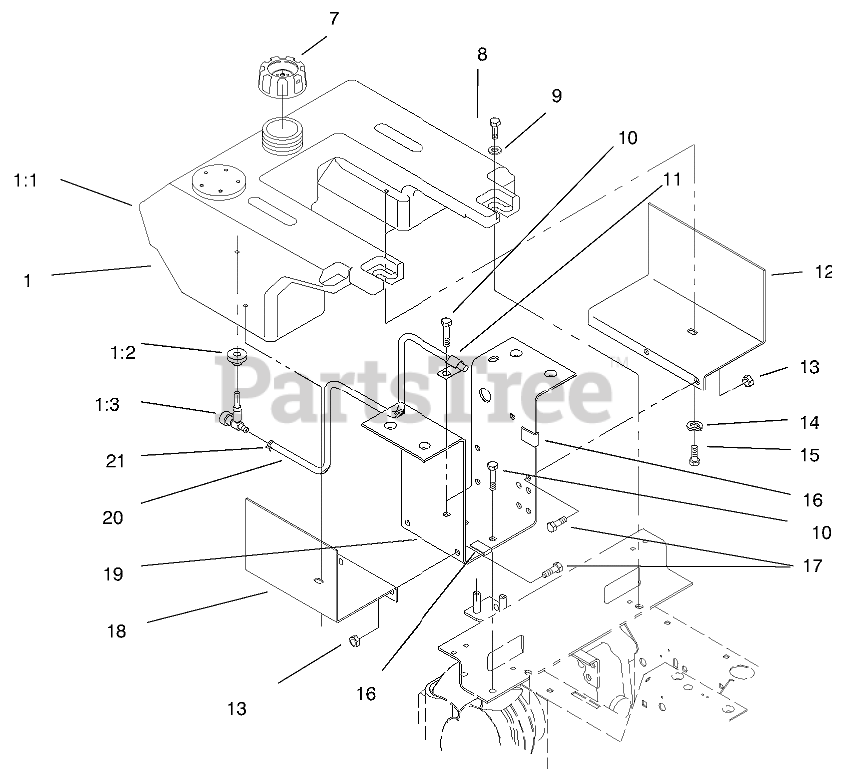

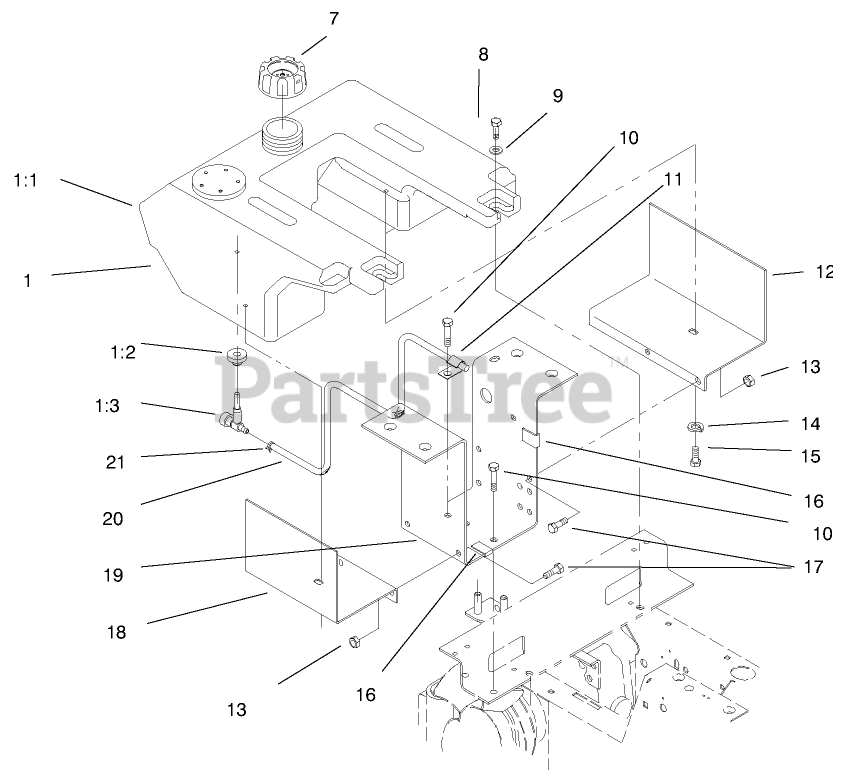

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1:1

Toro 106235

Tank

$

$

Currently unavailable

1:2

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

1:3

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

7

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

8

Toro 9266974

SCREW-HWHTF
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

11

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

12

Toro 108464-01

Bracket-Support

$

$

Currently unavailable

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

16

Toro 519337

CLIP-CABLE

$

$

Not available

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

18

Toro 106236-01

Support-Fuel Tank RH

$

$

Currently unavailable

19

Toro 79-4990-01

Bracket-Fender Support

$

$

Currently unavailable

20

Toro 92-9511

Line-Fuel 62"
(Superseded to 92-9512)

$38.99

$

Usually ships in 3-6 days

0

21

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0
