73363 (312-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) FENDER, SEAT & TAIL LIGHTS Parts Diagram

Garden Tractor

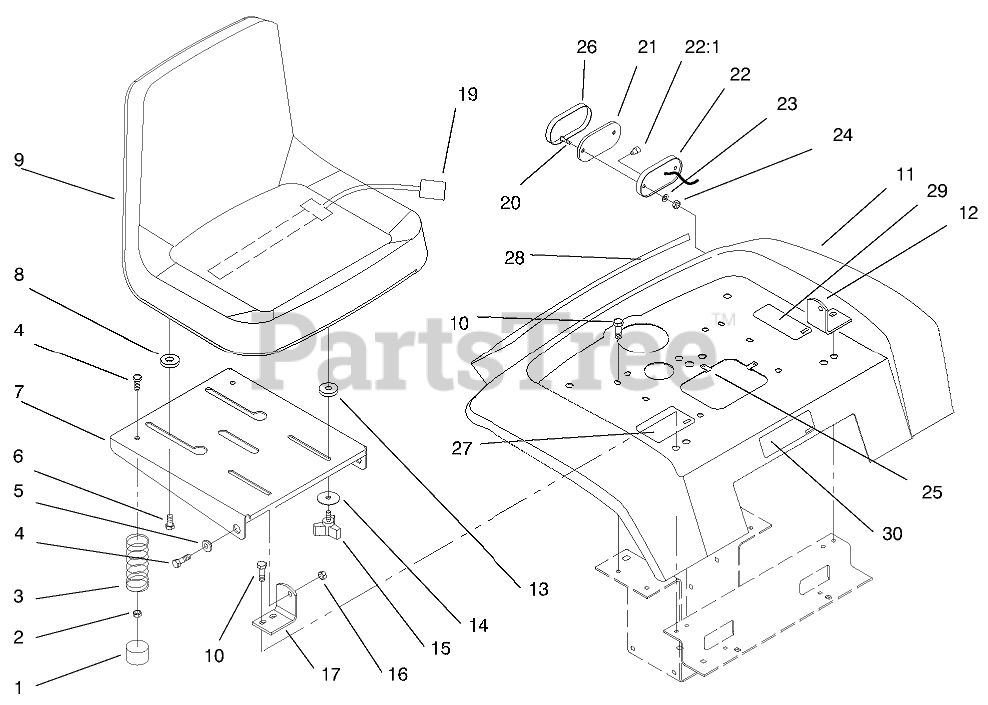

FENDER, SEAT & TAIL LIGHTS Parts Diagram

  • Title

1

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

2

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

3

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

4

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

6

Toro 92-6986

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

7

Toro 92-6972-03

SUPPORT - SEAT (BLACK)

$

$

Not available

8

Toro 92-6750

SPACER-NYLON

$16.99

$

Usually ships in 3-6 days

0

9

Toro 92-6511

SEAT-V-511

$

$

Not available

10

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

11

Toro 94-3722-01

FENDER

$

$

Not available

12

Toro 79-0970-03

BRACKET-PIVOT, LH

$

$

Not available

13

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

14

Toro 94-2869

WASHER

$1.99

$

In Stock, Qty 5

0

15

Toro 700806

KNOB

$20.99

$

In Stock, Qty 5

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 79-0950-03

BRACKET-PIVOT, RH

$

$

Not available

19

Toro 38-1420

SWITCH-SEAT

$

$

Not available

20

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

23

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, Qty 10

0

28

Toro 92-9827

DECAL - REAR FENDER
(Superseded to 106-5846)

$32.99

$

Usually ships in 3-6 days

0

30

Toro 76-1340

DECAL - USA

$16.99

$

In Stock, only 1 left!

0
