73363 (312-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) BRAKE Parts Diagram

Garden Tractor

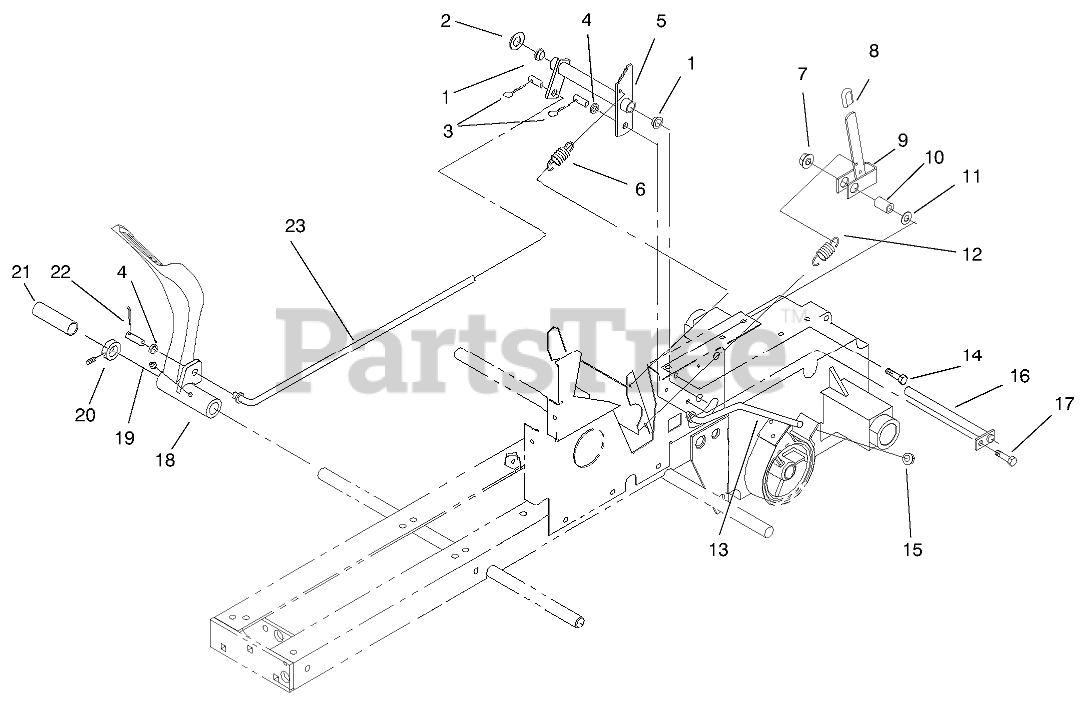

BRAKE Parts Diagram

  • Title

1

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

2

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

4

Toro 920248

WASHER-NYLON

$1.49

$

Usually ships in 3-6 days

0

5

Toro 103543-03

BELCRANK ASM

$

$

Not available

6

Toro 103628

SPRING-EXTENSION

$12.99

$

In Stock, only 1 left!

0

7

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 6820

GRIP

$2.99

$

In Stock, only 1 left!

0

9

Toro 106451-03

BRAKE LEVER ASM

$

$

Not available

10

Toro 102025

SPACER

$

$

Not available

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 107677

SPRING-BRAKE

$16.99

$

In Stock, Qty 6

0

13

Toro 105900

ROD-REAR BRAKE

$60.99

$

Usually ships in 3-6 days

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 106417

ROD ASM

$

$

Not available

17

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

18

Toro 94-3706-01

PEDAL-BRAKE, GEAR

$190.99

$

Usually ships in 3-6 days

0

19

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

20

Toro 111383

COLLAR

$6.99

$

In Stock, only 1 left!

0

21

Toro 94-6683

SLEEVE-PROTECTIVE

$8.99

$

In Stock, only 1 left!

0

22

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

23

Toro 92-6849

ROD-BRAKE

$

$

Not available
