73363 (312-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) OIL PAN AND DIPSTICK Parts Diagram

Garden Tractor

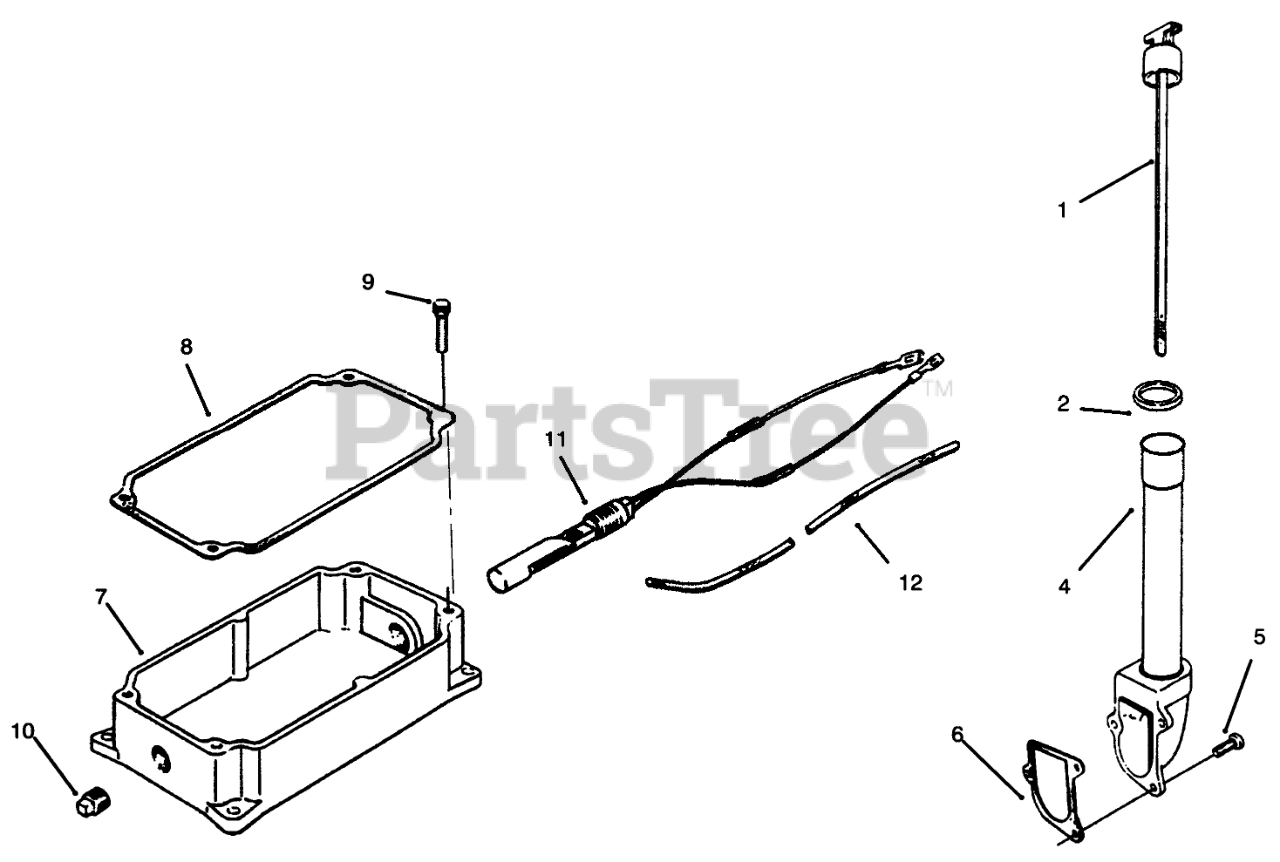

OIL PAN AND DIPSTICK Parts Diagram

  • Title

1

Toro 47-038-27

Dipstick

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

2

Toro 41-153-01

O-Ring

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

4

Toro 47-029-06

Adapter-Oil Fill

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

5

Kohler X-131-2

Screw
(Superseded to X-131-2-S)

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Not available

6

Kohler 237064

Gasket
(Superseded to 237064-S)

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$10.99

$

Usually ships in 2-5 days

0

7

Toro 45-199-05

Pan-Oil

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

8

Kohler 235057

Gasket
(Superseded to 235057-S)

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$10.99

$

In Stock, only 1 left!

0

9

Kohler X-159-3

Screw
(Superseded to X-159-3-S)

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Not available

10

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$2.49

$

In Stock, only 3 left!

0

11

Toro 47-099-04

Kit-Float Switch 12hp

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

12

Toro 25-431-02

Sleeve

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

Toro 25-113-05

Decal-Float Switch

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

Toro 48-155-01

Connector

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable
