73363 (312-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) FUEL PUMP Parts Diagram

Garden Tractor

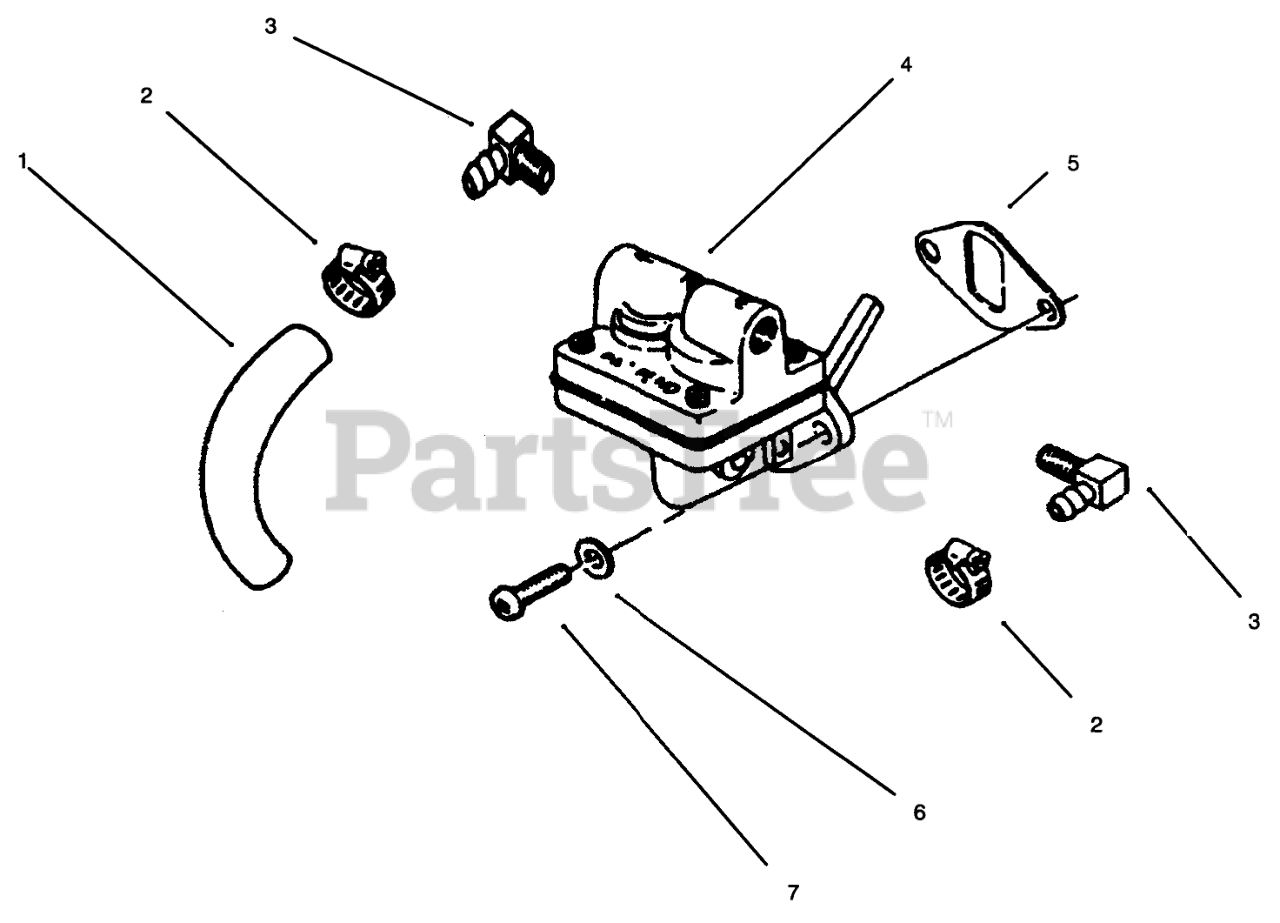

FUEL PUMP Parts Diagram

  • Title

1

Toro 25-353-01

Line-Fuel

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

2

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$4.99

$

In Stock, only 3 left!

0

3

Toro 25-155-02

Connector-90deg.

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

4

Toro 47-559-08

Pump ASM-Fuel INC 5&7

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

5

Toro 25-041-05

Gasket

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

6

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$2.49

$

In Stock, only 3 left!

0

7

Kohler X-174-2

Screw-F.H.
(Superseded to X-174-2-S)

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$3.49

$

In Stock, only 1 left!

0
