73363 (312-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) CLUTCH Parts Diagram

Garden Tractor

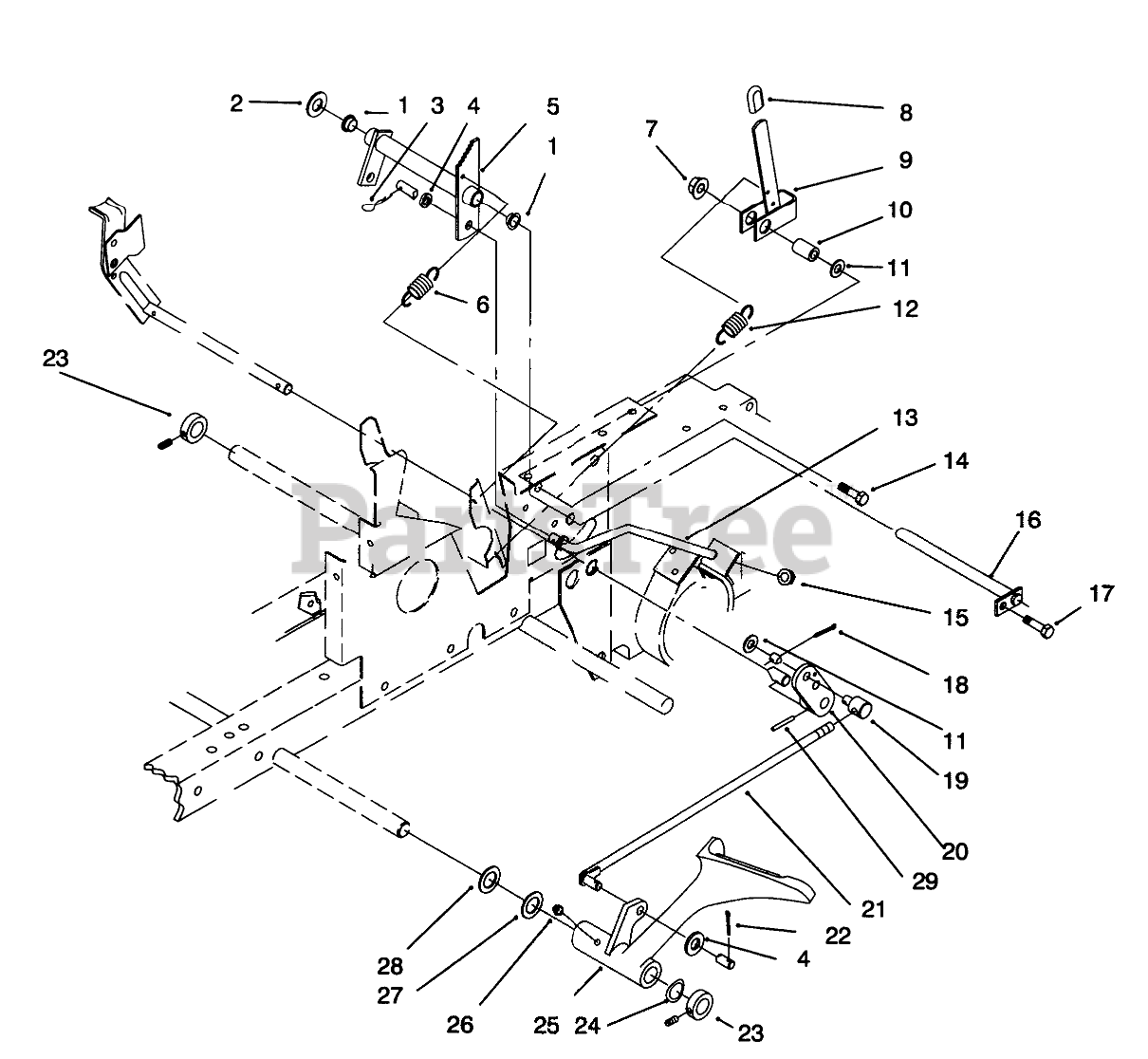

CLUTCH Parts Diagram

  • Title
1

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

2

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

4

Toro 920248

WASHER-NYLON

$1.49

$

Usually ships in 3-6 days

0

5

Toro 103543

Bellcrank Assy
(Superseded to 103543-03)

$

$

Not available

6

Toro 103628

SPRING-EXTENSION

$12.99

$

Usually ships in 3-6 days

0

7

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

8

Toro 6820

GRIP

$2.99

$

In Stock, only 2 left!

0

9

Toro 106451

ASSY-BRAKE LEVER WAB
(Superseded to 106451-03)

$

$

Not available

10

Toro 102025

SPACER

$

$

Not available

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

12

Toro 107677

SPRING-BRAKE

$16.99

$

In Stock, Qty 10

0

13

Toro 105900

ROD-REAR BRAKE

$60.99

$

Usually ships in 3-6 days

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 107939

Belt-Drive
(Superseded to 93-9809)

$69.99

$

In Stock, only 1 left!

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

15

Toro 93-9808

BELT-V IN

$68.99

$

Usually ships in 3-6 days

0

16

Toro 106417

ROD ASM

$

$

Not available

17

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

18

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

19

Toro 101161

TRUNNION

$

$

Not available

20

Toro 105896

Arm-Clutch Rod
(Superseded to 105896-03)

$64.99

$

In Stock, only 1 left!

0

21

Toro 103347

ROD AND GUIDE ASM

$58.99

$

Usually ships in 3-6 days

0

22

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

23

Toro 111383

COLLAR

$6.99

$

In Stock, only 1 left!

0

24

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

25

Toro 94-3703

Pedal-Clutch
(Superseded to 94-3703-01)

$170.99

$

Usually ships in 3-6 days

0

26

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

27

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

28

Toro 9202254

WASHER

$3.99

$

In Stock, only 2 left!

0

29

Toro 933190

PIN-SPIROL

$

$

Not available

30

Toro 108035

SPRING-CLUTCH

$14.99

$

In Stock, only 1 left!

0
