73363 (312-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) BAFFLES AND SHROUDS Parts Diagram

Garden Tractor

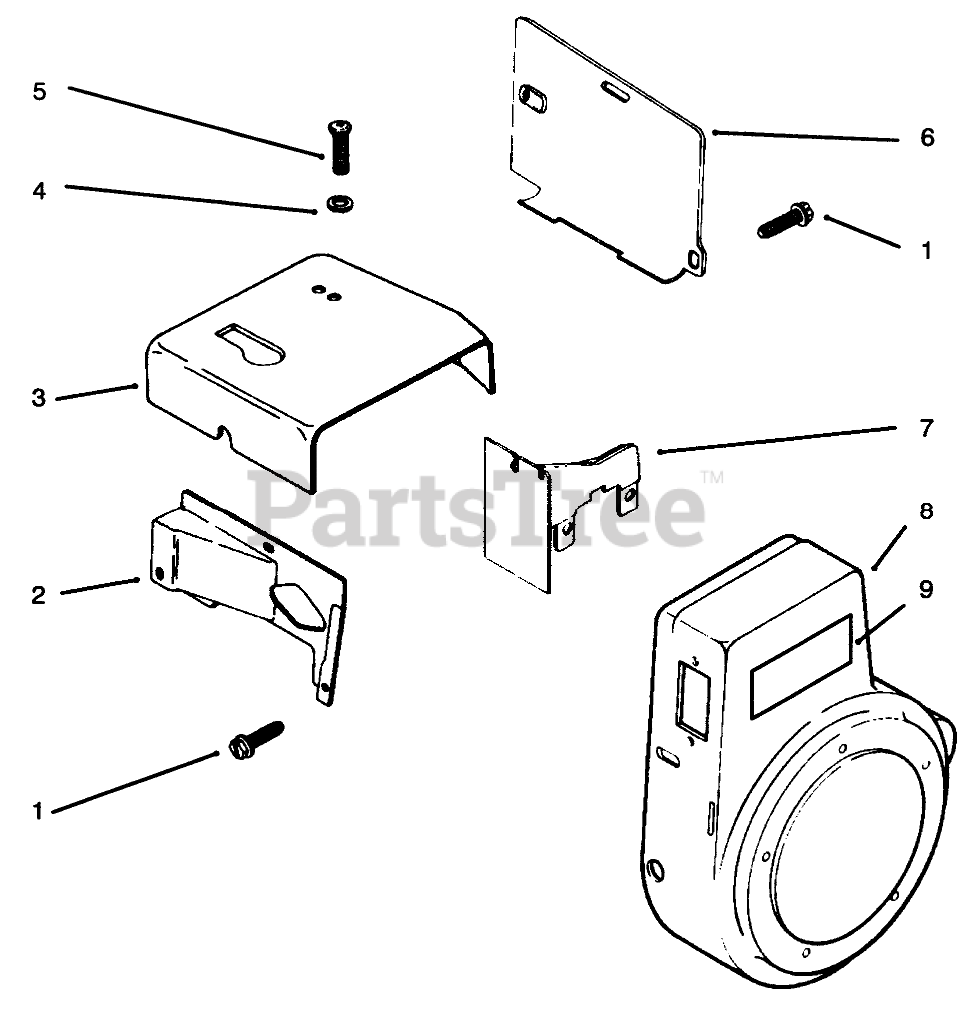

BAFFLES AND SHROUDS Parts Diagram

  • Title
1

Toro 52-086-11

Screw-Hex Hd

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

2

Toro 47-086-06

Baffle-Side Air

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

3

Toro 45-063-08

Baffle-Head

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

4

Kohler X-25-53

Washer
(Superseded to X-25-53-S)

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$3.49

$

In Stock, only 3 left!

0

5

Toro 47-086-08

Screw, F.H.

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

6

Toro 47-063-10

Baffle-Cylinder

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

7

Toro 47-063-07

Baffle-Inner

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

8

Toro 47-027-42

Housing-Blower

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable
